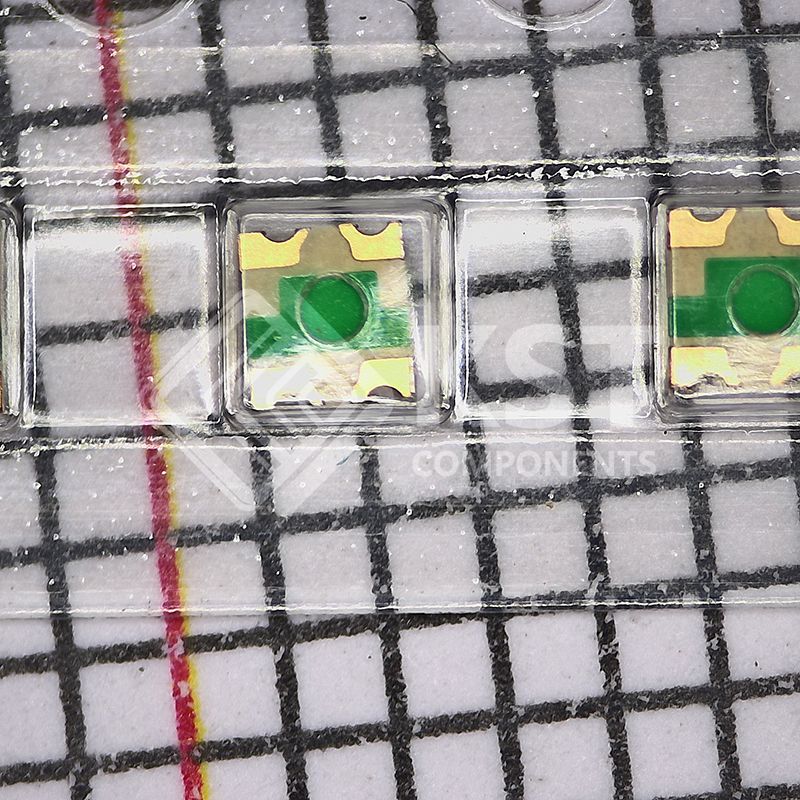

FRYPY1211C-0005-TR
Part Number:
FRYPY1211C-0005-TR
Product Classification:
LED Addressable, Specialty
Manufacturer:
Winchester Electronics
Description:
LED RED/YLW-GRN DIFFUSED SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Optoelectronics
LED Indication - Discrete
|
|
|
Mfr |
Stanley Electric Co |
|
|
Series |
1211C |
|
|
Packaging |

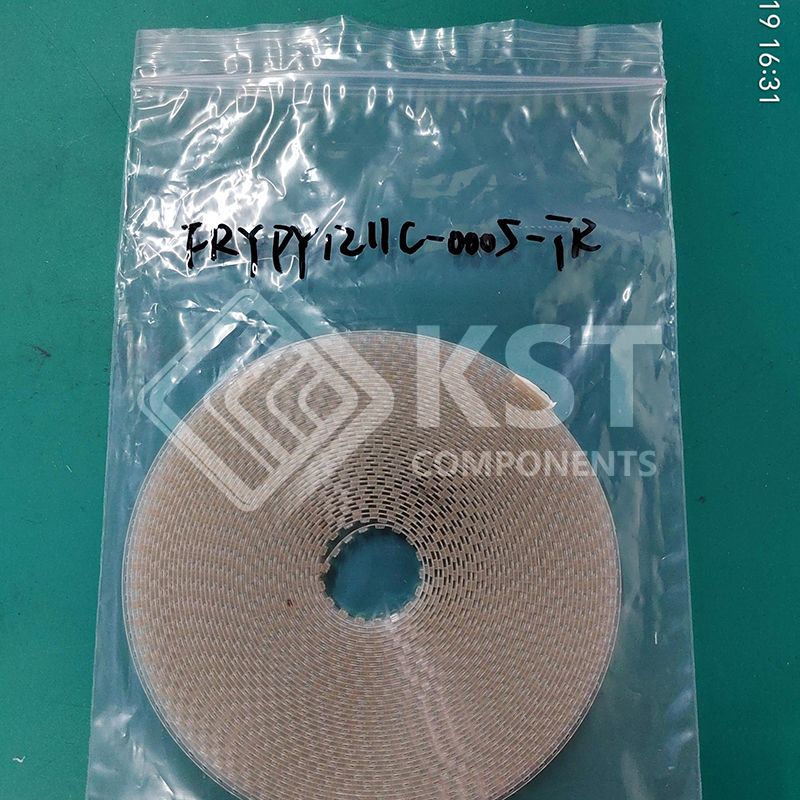

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Color |
Red, Yellow-Green |
|
|
Configuration |
Independent
|
|
|
Lens Color |
White
|
|
|
Lens Transparency |
Diffused
|
|
|
Millicandela Rating |
30mcd Red, 12mcd Yellow-Green |
|
|
Lens Style |
Rectangle with Flat Top
|
|
|
Lens Size |
1.50mm x 1.20mm
|
|
|
Voltage - Forward (Vf) (Typ) |
1.85V Red, 1.95V Yellow-Green
|
|
|
Current - Test |
5mA Red, 5mA Yellow-Green
|
|
|
Viewing Angle |
115°, 140° Red, 115°, 140° Yellow-Green
|
|
|
Mounting Type |
Surface Mount |
|
|
Wavelength - Dominant |
626nm Red, 570nm Yellow-Green |
|
|
Wavelength - Peak |
-
|
|
|
Features |
-
|
|
|
Package / Case |
0606 (1616 Metric)
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
1.60mm L x 1.50mm W
|
|
|
Height (Max) |
0.80mm
|
|
|
Base Product Number |
FRYPY1211 |
