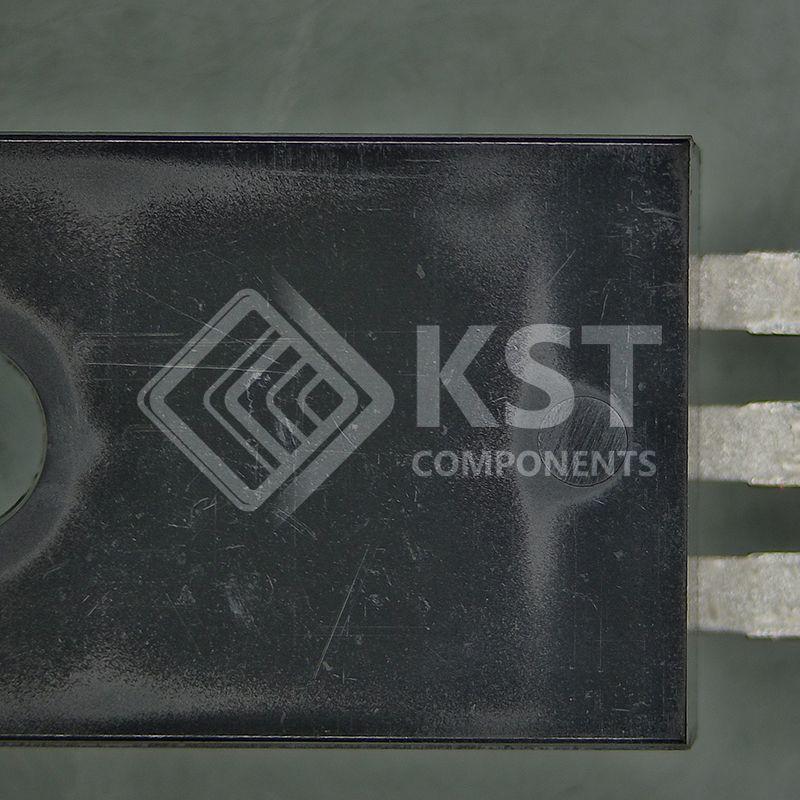

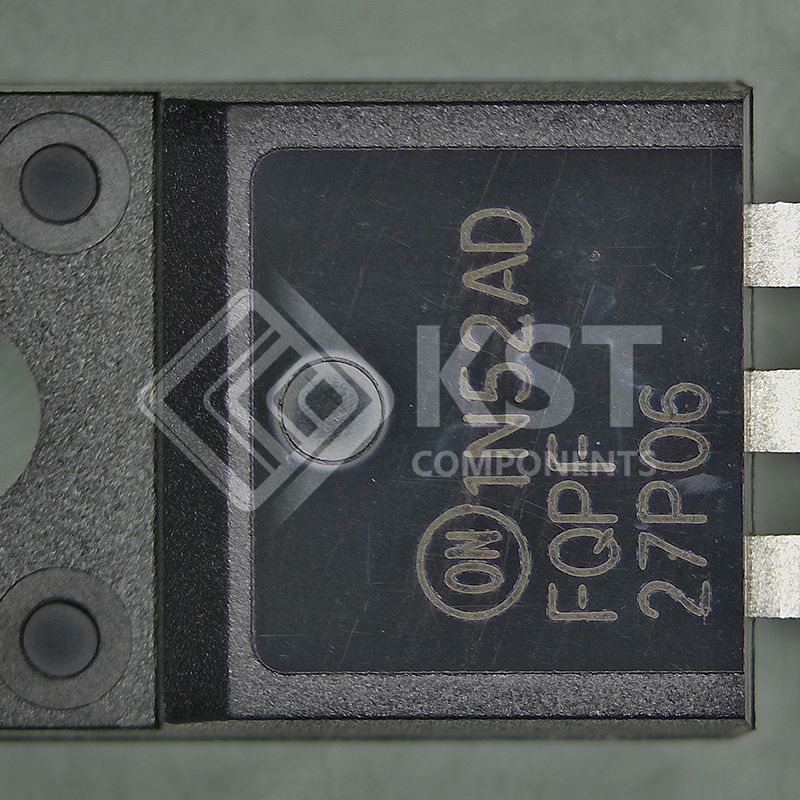

FQPF27P06
Part Number:
FQPF27P06
Product Classification:
Solid State Relays (SSR)
Manufacturer:
ADDA USA
Description:
MOSFET P-CH 60V 17A TO220F
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
onsemi |
|
|
Series |
QFET® |
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
60 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
17A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
70mOhm @ 8.5A, 10V
|
|
|
Vgs(th) (Max) @ Id |
4V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
43 nC @ 10 V
|
|
|
Vgs (Max) |
±25V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1400 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
47W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 175°C (TJ)
|
|
|
Mounting Type |
Through Hole
|
|
|
Supplier Device Package |
TO-220F-3
|
|
|
Package / Case |
TO-220-3 Full Pack |
|
|
Base Product Number |
FQPF27 |
