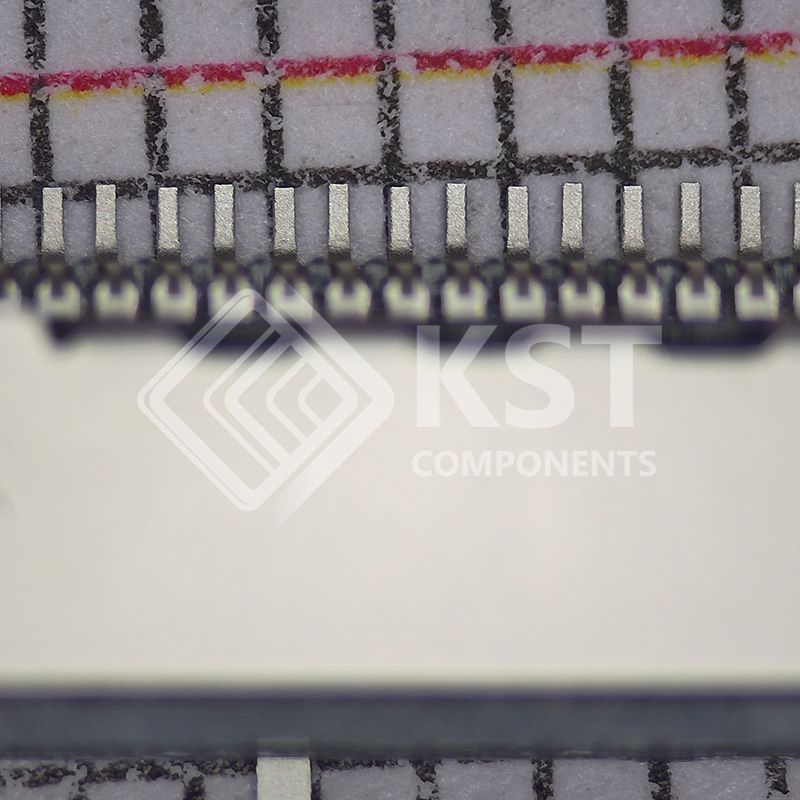

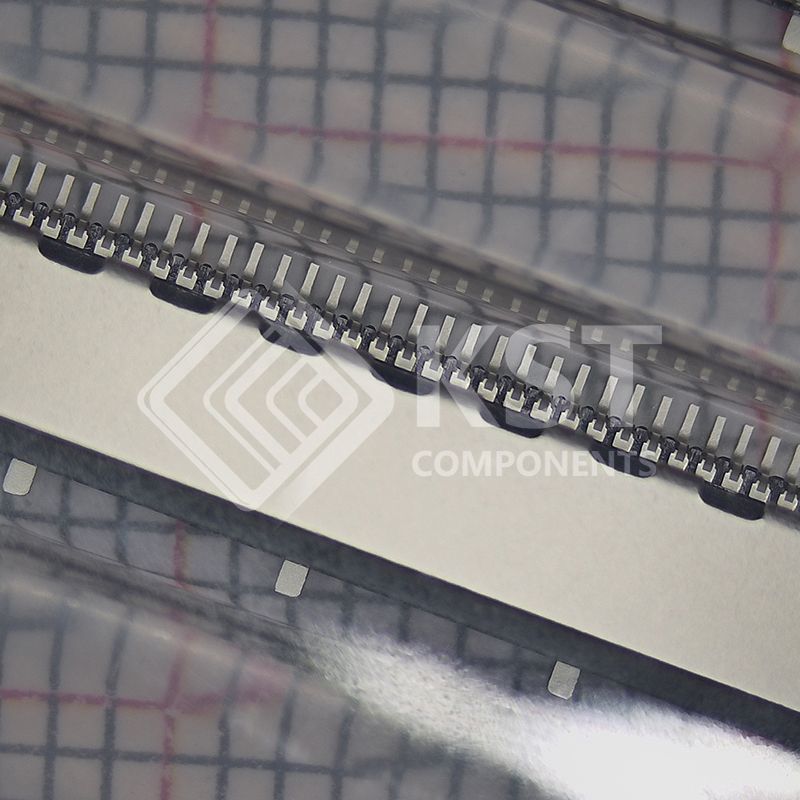

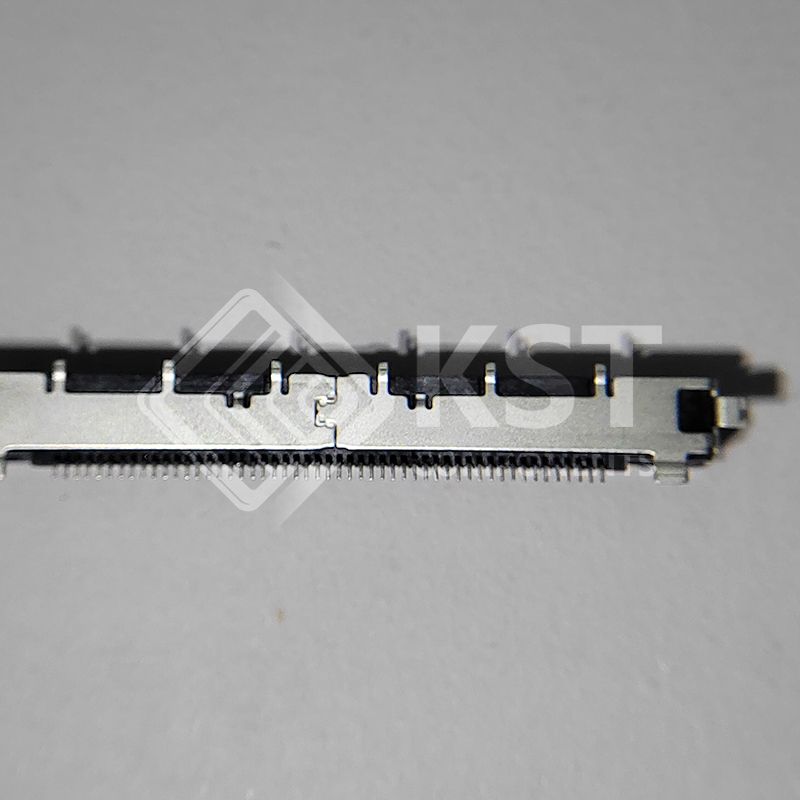

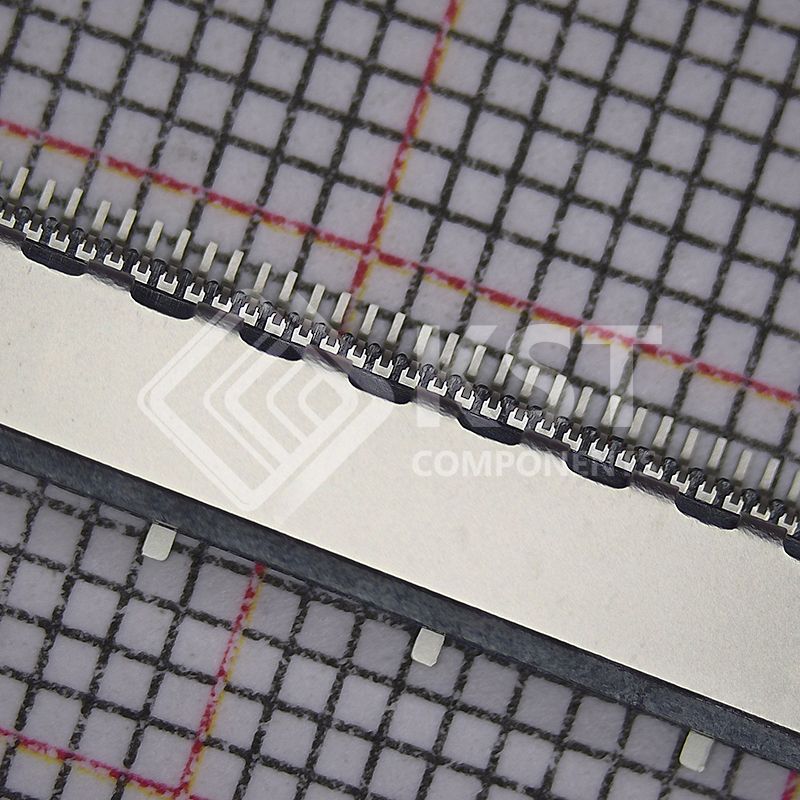

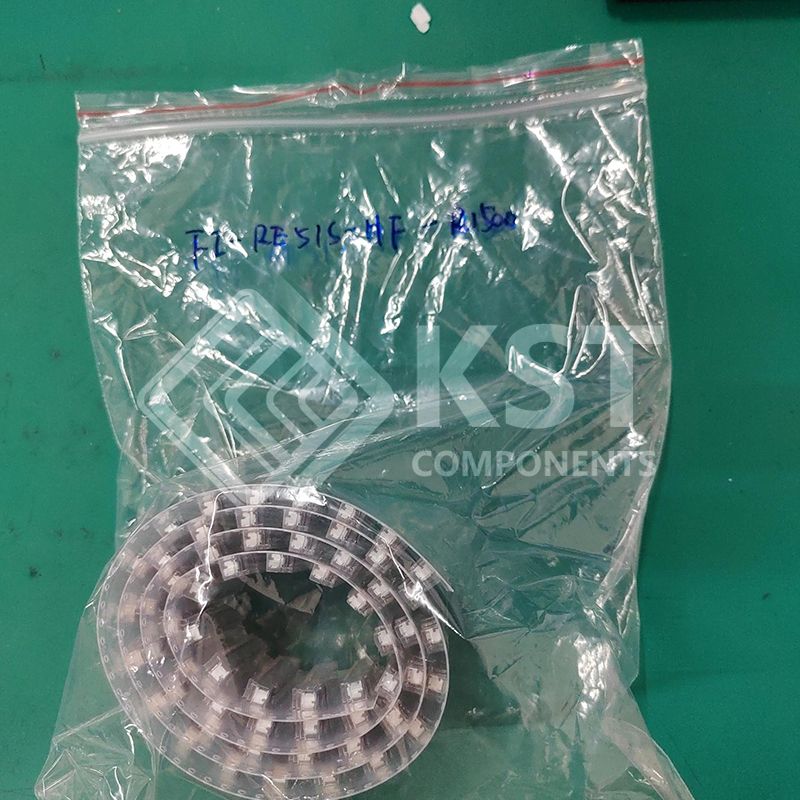

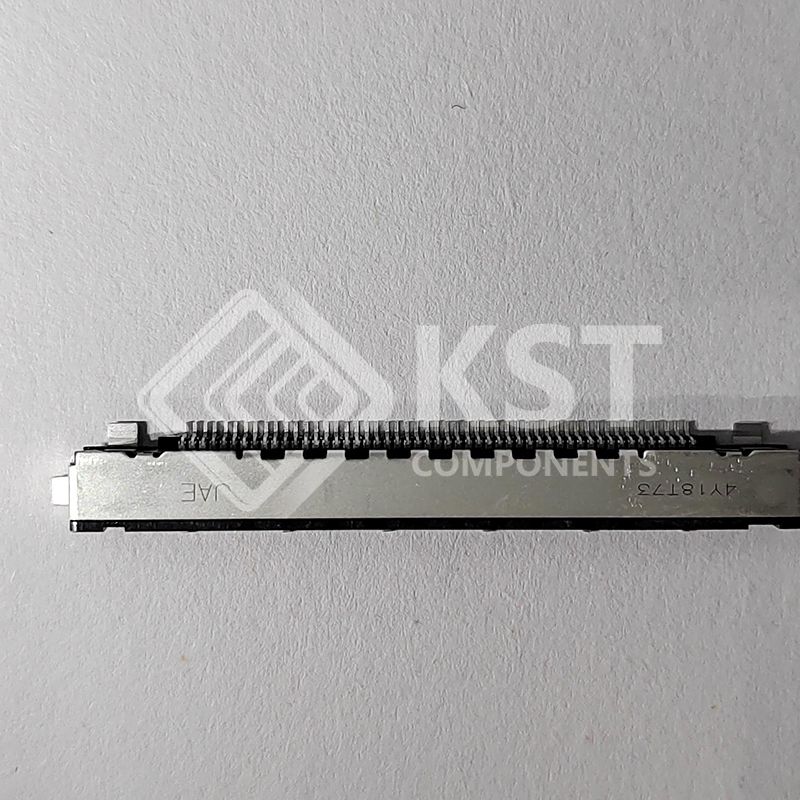

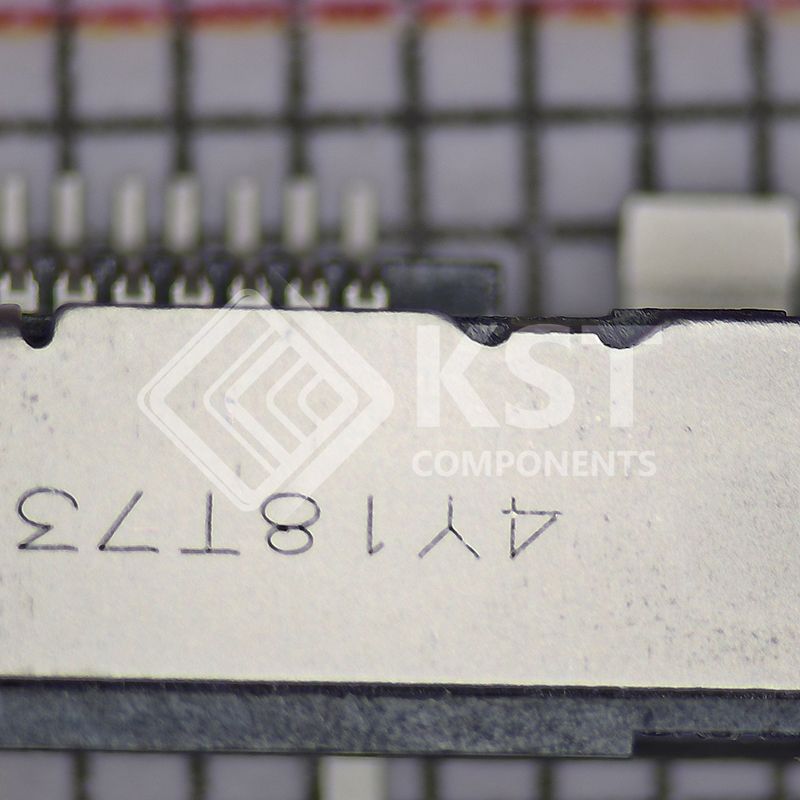

FI-RE51S-HF-R1500
Part Number:
FI-RE51S-HF-R1500
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
Amphenol LTW
Description:
CONN RCPT 51P 0.02 GOLD SMD R/A
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Receptacles, Female Sockets
|
|
|
Mfr |
JAE Electronics |
|
|
Series |
FI-R |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Receptacle |
|
|
Contact Type |
Female Blade Socket
|
|
|
Style |
Board to Cable/Wire
|
|
|
Number of Positions |
51 |
|
|
Number of Positions Loaded |
All
|
|
|
Pitch - Mating |
0.020" (0.50mm) |
|
|
Number of Rows |
1
|
|
|
Row Spacing - Mating |
-
|
|
|
Mounting Type |
Surface Mount, Right Angle
|
|
|
Termination |
Solder |
|
|
Fastening Type |
Latch Holder
|
|
|
Contact Finish - Mating |
Gold |
|
|
Contact Finish Thickness - Mating |
-
|
|
|
Insulation Color |
-
|
|
|
Insulation Height |
0.148" (3.75mm)
|
|
|
Contact Length - Post |
-
|
|
|
Operating Temperature |
-40°C ~ 80°C
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Contact Finish - Post |
Tin
|
|
|
Mated Stacking Heights |
-
|
|
|
Ingress Protection |
-
|
|
|
Features |
Shielded, Solder Retention
|
|
|
Current Rating (Amps) |
0.8A per Contact
|
|
|
Voltage Rating |
-
|
|
|
Applications |
General Purpose, Medical
|
|
|
Insulation Material |
Plastic
|
|
|
Contact Shape |
-
|
|
|
Contact Material |
Copper Alloy
|
|
|
Contact Finish Thickness - Post |
-
|
|
|
Base Product Number |
FI-RE51S |
