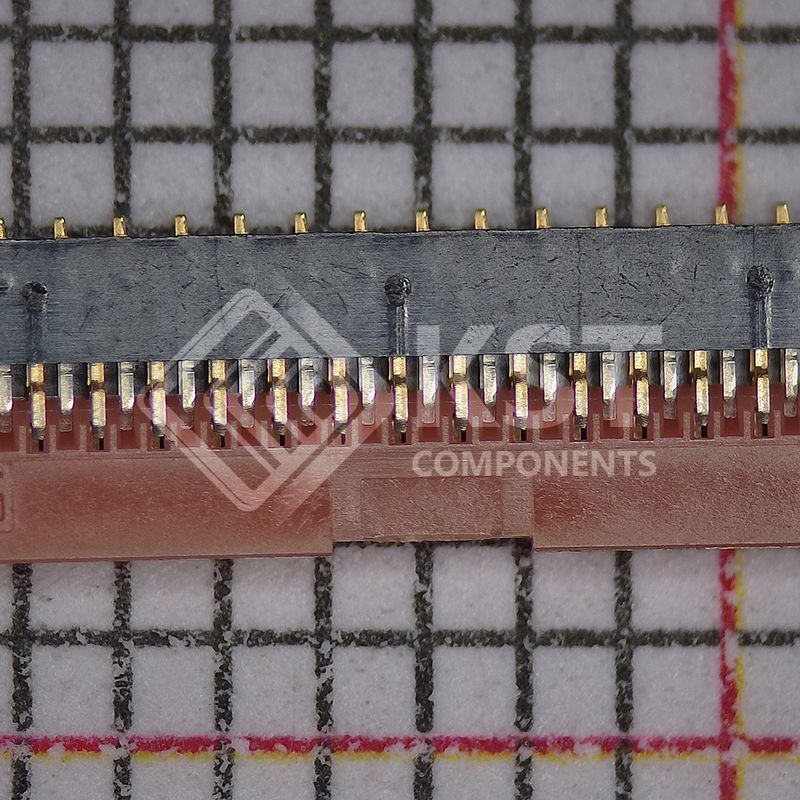

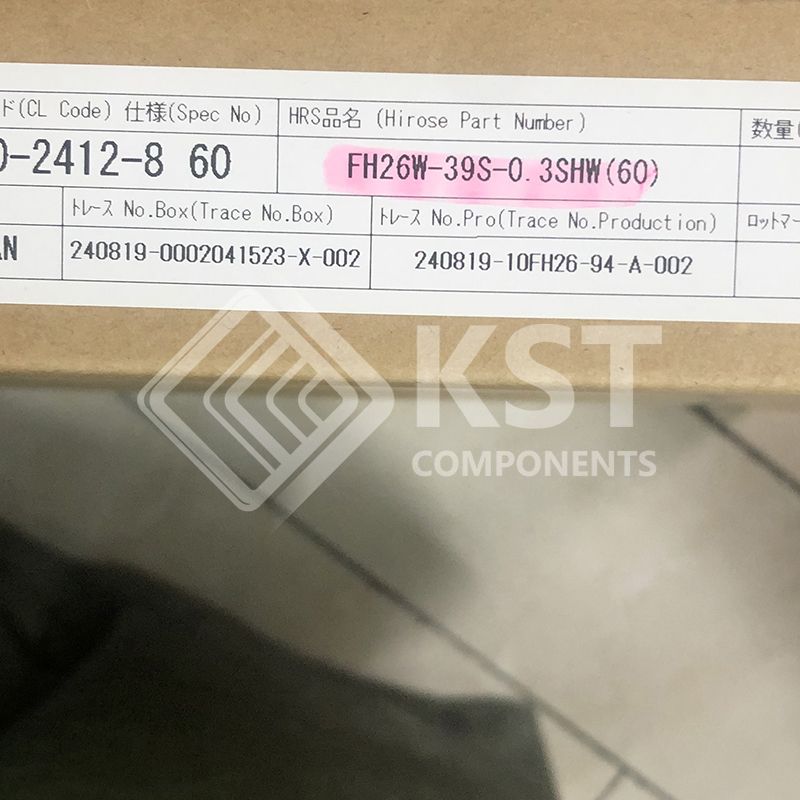

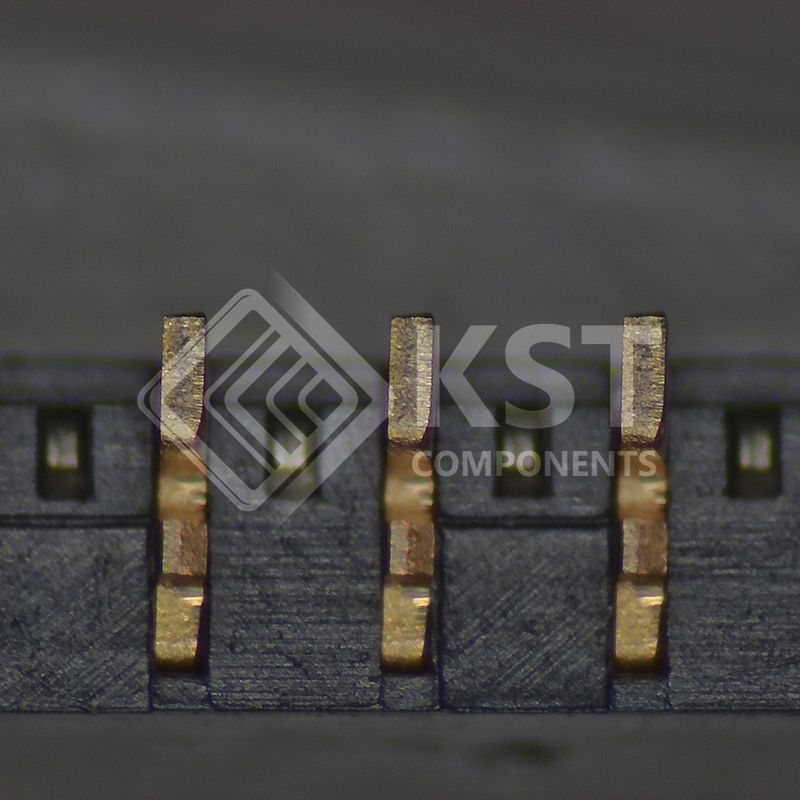

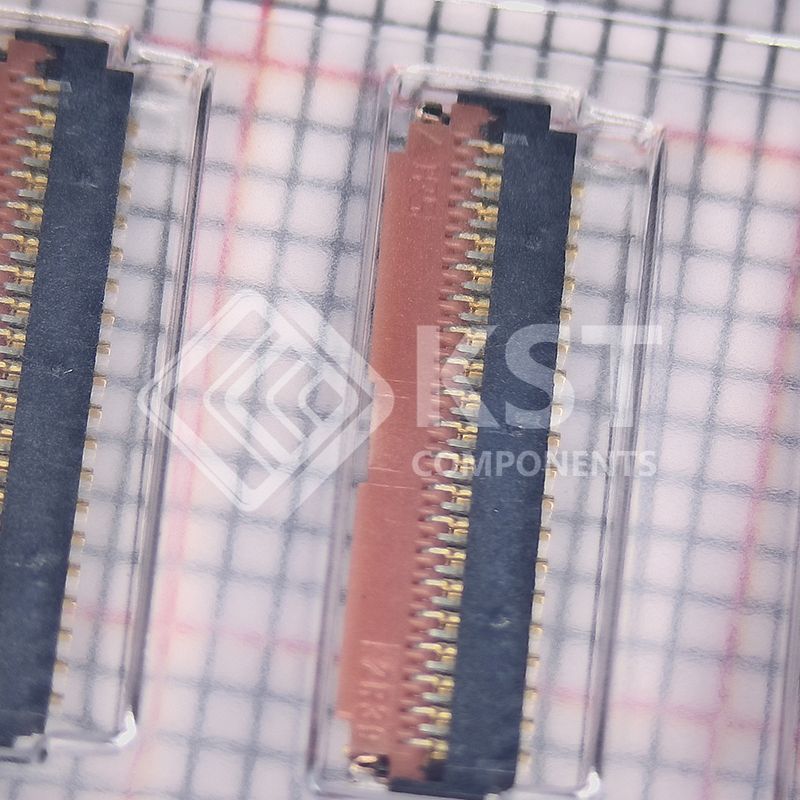

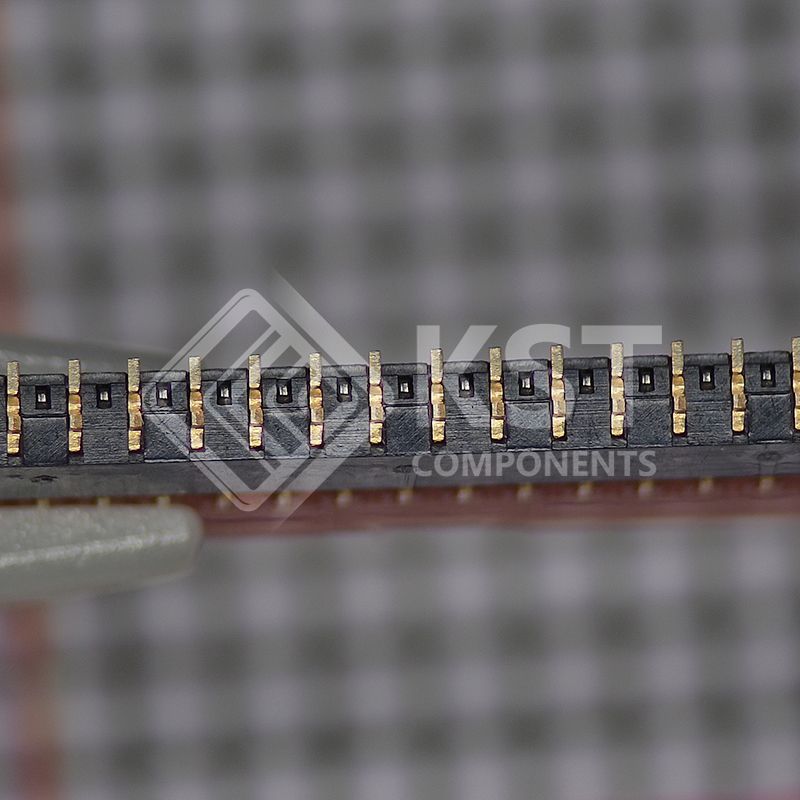

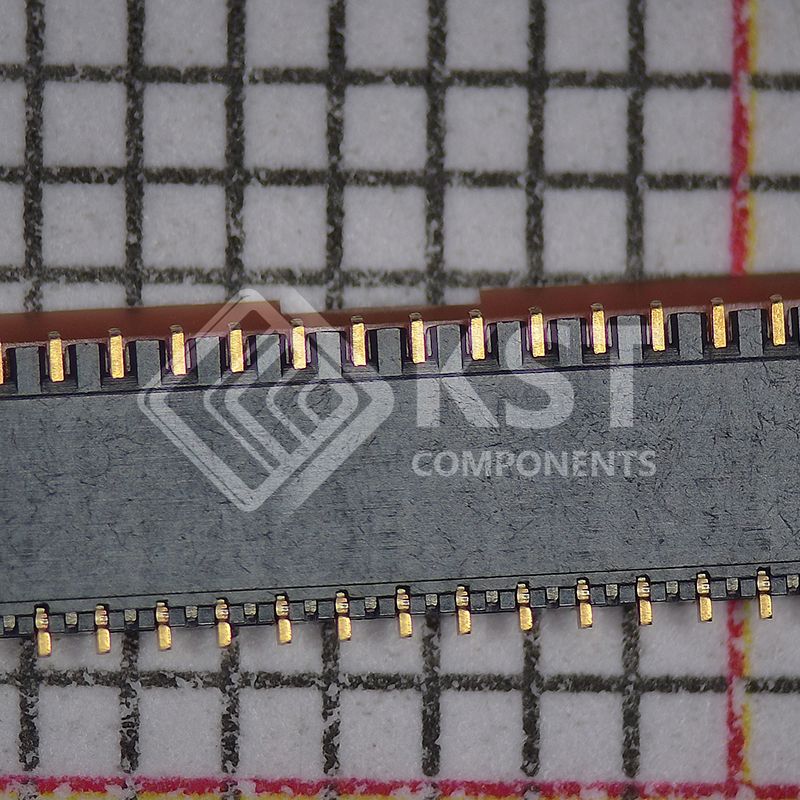

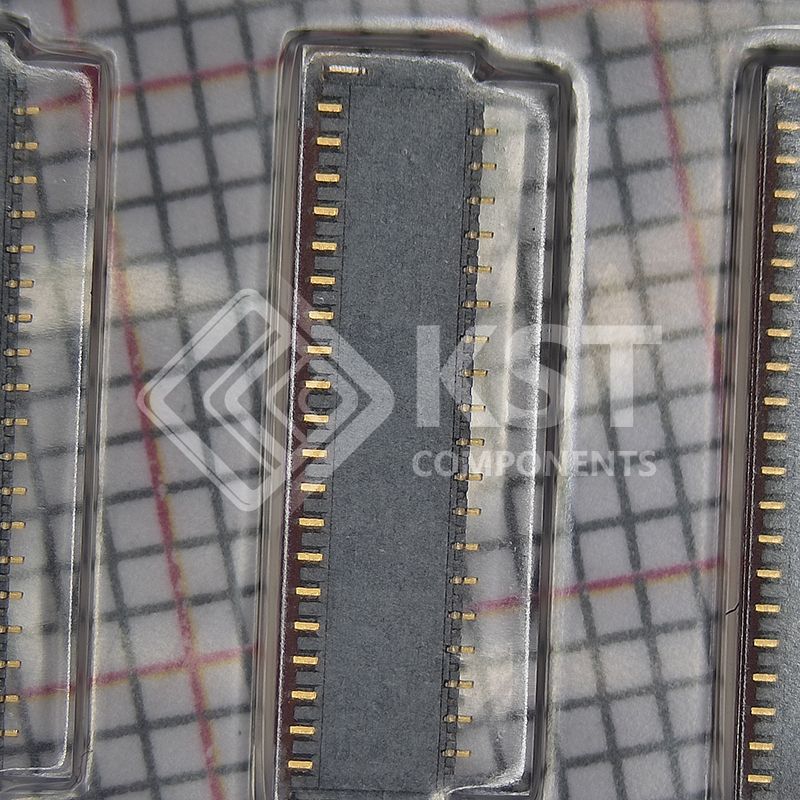

FH26W-39S-0.3SHW(60)
Part Number:
FH26W-39S-0.3SHW(60)
Product Classification:
DIACs, SIDACs
Manufacturer:
Allied Vision
Description:
CONN FPC BOTTOM 39POS 0.3MM R/A
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connector Assemblies
|
|
|
Manufacturer |
Hirose Electric Co Ltd
|
|
|
Series |
FH26 |
|
|
Packaging |

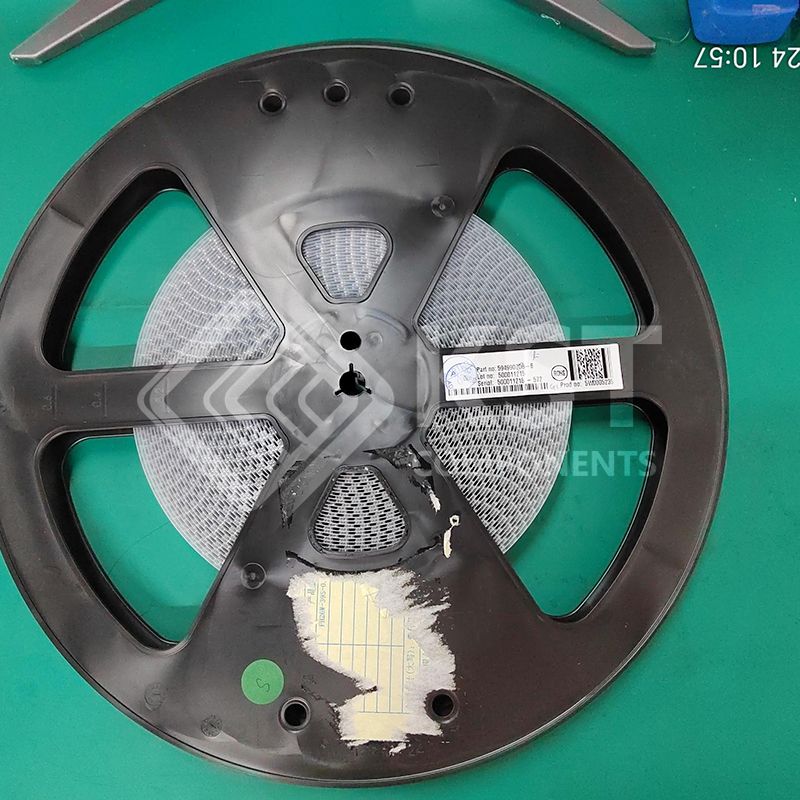

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Flat Flex Type |
FPC
|
|
|
Mounting Type |
Surface Mount, Right Angle
|
|
|
Connector/Contact Type |
Contacts, Bottom
|
|
|
Number of Positions |
39
|
|
|
Pitch |
0.012" (0.30mm)
|
|
|
Termination |
Solder
|
|
|
FFC, FCB Thickness |
0.20mm
|
|
|
Height Above Board |
0.039" (1.00mm)
|
|
|
Locking Feature |
Flip Lock
|
|
|
Cable End Type |
Tapered
|
|
|
Contact Material |
Phosphor Bronze
|
|
|
Contact Finish |
Gold
|
|
|
Housing Material |
Liquid Crystal Polymer (LCP)
|
|
|
Actuator Material |
Polyamide (PA), Nylon
|
|
|
Features |
Zero Insertion Force (ZIF)
|
|
|
Voltage Rating |
30V
|
|
|
Operating Temperature |
-55°C ~ 85°C
|
|
|
Material Flammability Rating |
UL94 HB
|
|
|
Current Rating (Amps) |
0.2A
|
|
|
Contact Finish Thickness |
-
|
|
|
Housing Color |
Black
|
|
|
Actuator Color |
Brown
|
|
|
Mating Cycles |
10
|
|
|
Base Product Number |
FH26 |
