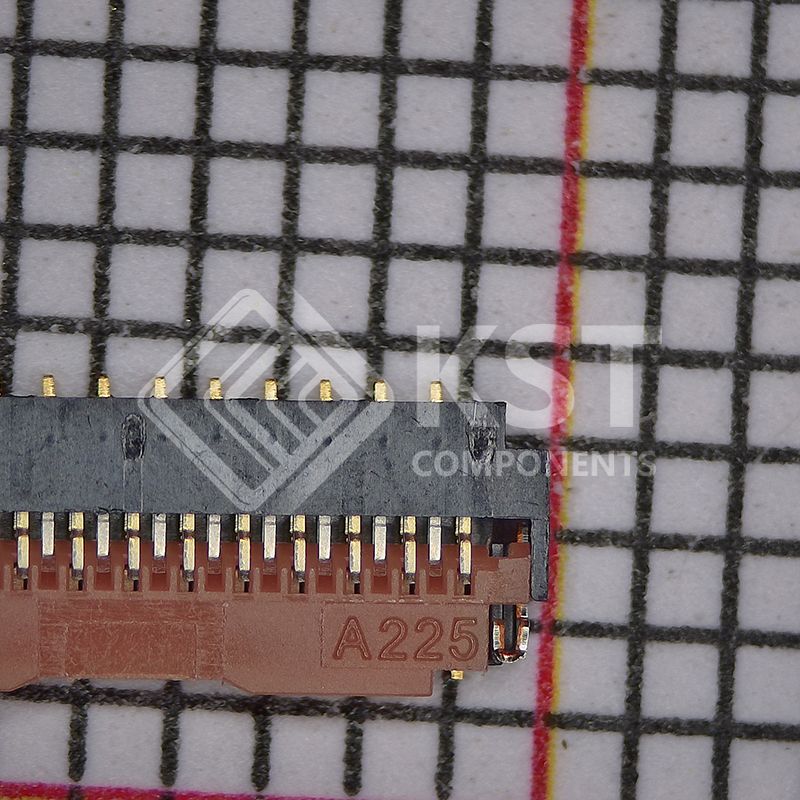

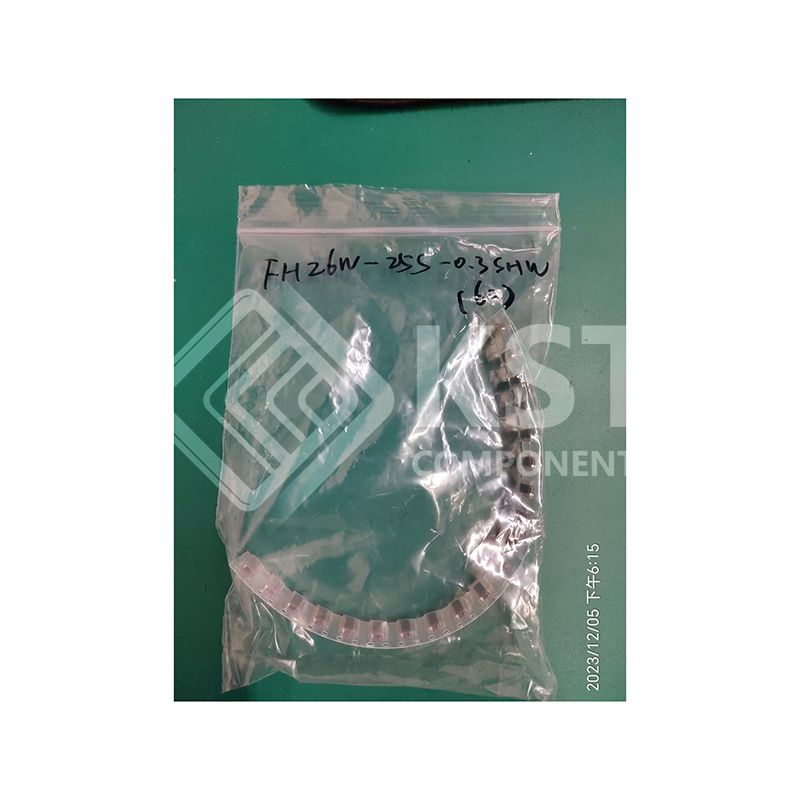

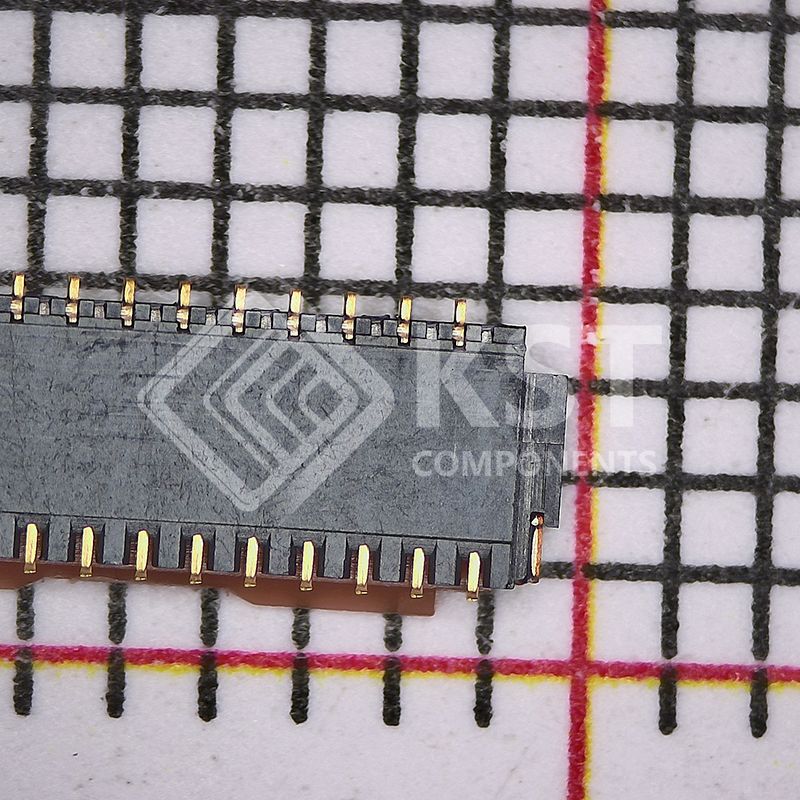

FH26W-25S-0.3SHW(60)
Part Number:
FH26W-25S-0.3SHW(60)
Product Classification:
External/Internal Power Supply Accessories
Manufacturer:
Allied Vision
Description:
25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH26 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 25 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 30V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 HB |
| Current Rating (Amps) | 0.2A |
| Contact Finish Thickness | - |
| Housing Color | Black |
| Actuator Color | Brown |
| Mating Cycles | 10 |
| Base Product Number | FH26 |
