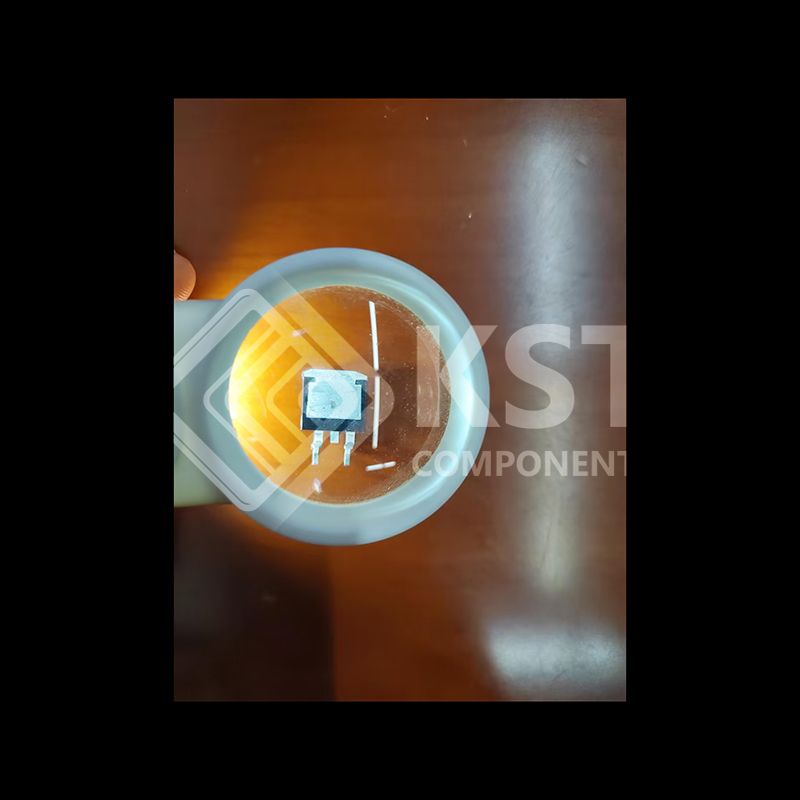

FGB40T65SPD-F085
Part Number:
FGB40T65SPD-F085
Product Classification:
Specialty Transformers
Manufacturer:
ADDA USA
Description:
IGBT FIELD STOP 650V 80A D2PAK
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
IGBTs
Single IGBTs
|
|
|
Manufacturer |
onsemi
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
IGBT Type |
Trench Field Stop
|
|
|
Voltage - Collector Emitter Breakdown (Max) |
650 V
|
|
|
Current - Collector (Ic) (Max) |
80 A
|
|
|
Current - Collector Pulsed (Icm) |
120 A
|
|
|
Vce(on) (Max) @ Vge, Ic |
2.4V @ 15V, 40A
|
|
|
Power - Max |
267 W
|
|
|
Switching Energy |
970µJ (on), 280µJ (off)
|
|
|
Input Type |
Standard
|
|
|
Gate Charge |
36 nC
|
|
|
Td (on/off) @ 25°C |
18ns/35ns
|
|
|
Test Condition |
400V, 40A, 6Ohm, 15V
|
|
|
Reverse Recovery Time (trr) |
34 ns
|
|
|
Operating Temperature |
-55°C ~ 175°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
|
|
|
Supplier Device Package |
TO-263 (D2PAK)
|
|
|
Base Product Number |
FGB40T65 |
