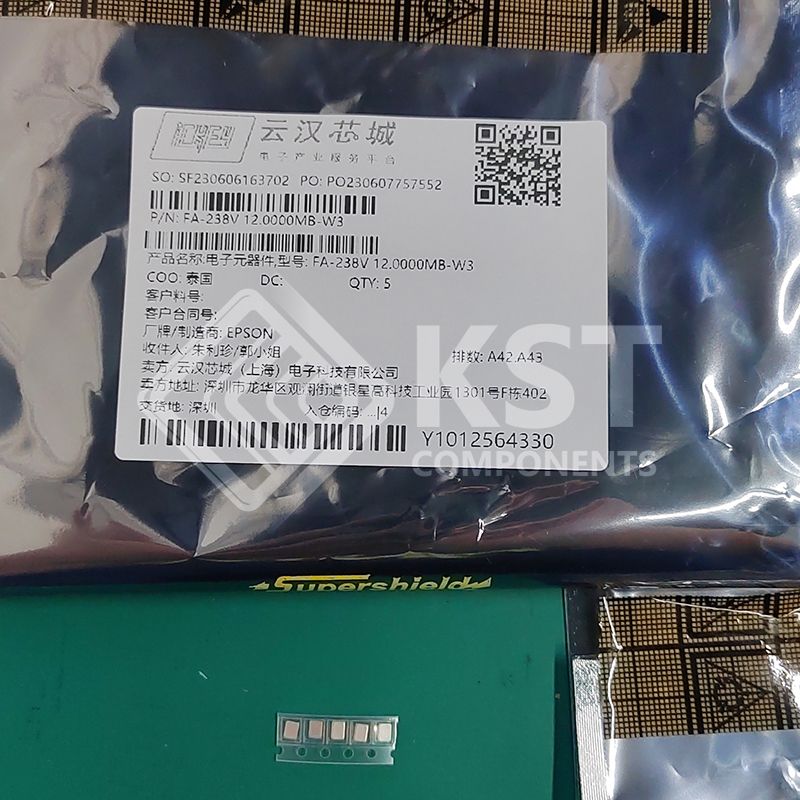

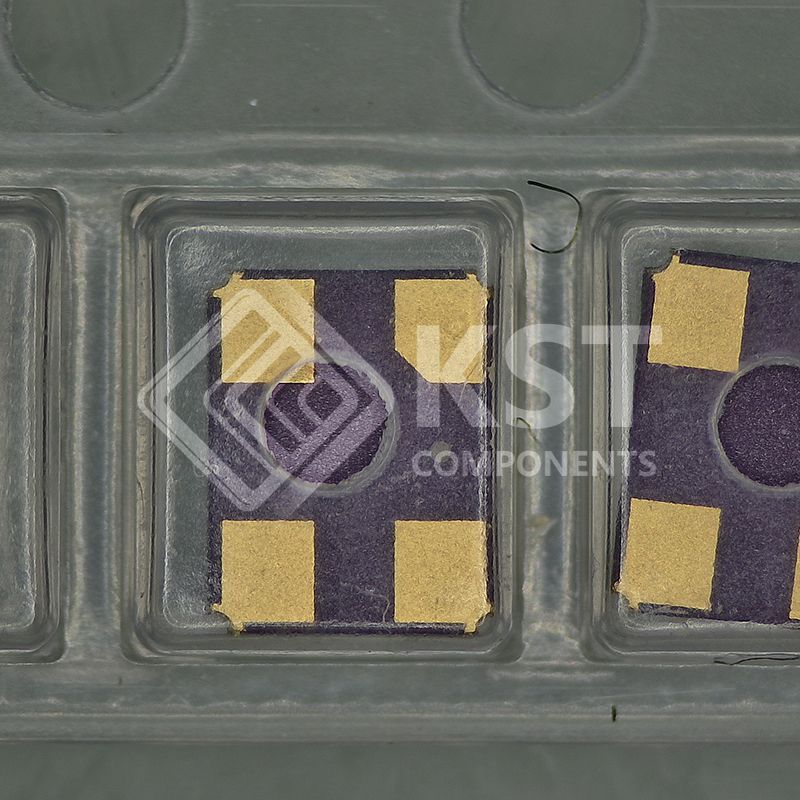

FA-238V 12.0000MB-W3
Part Number:
FA-238V 12.0000MB-W3
Product Classification:
AC DC Configurable Power Supply Modules
Manufacturer:
Amphenol PCB Piezotronics
Description:
CRYSTAL 12.0000MHZ 12PF SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Crystals, Oscillators, Resonators
Crystals
|
|
|
Mfr |
EPSON |
|
|
Series |
FA-238V |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
MHz Crystal
|
|
|
Frequency |
12 MHz
|
|
|
Frequency Stability |
±30ppm
|
|
|
Frequency Tolerance |
±50ppm
|
|
|
Load Capacitance |
12pF
|
|
|
ESR (Equivalent Series Resistance) |
100 Ohms
|
|
|
Operating Mode |
Fundamental
|
|
|
Operating Temperature |
-20°C ~ 70°C
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
4-SMD, No Lead |
|
|
Size / Dimension |
0.126" L x 0.098" W (3.20mm x 2.50mm)
|
|
|
Height - Seated (Max) |
0.028" (0.70mm)
|
