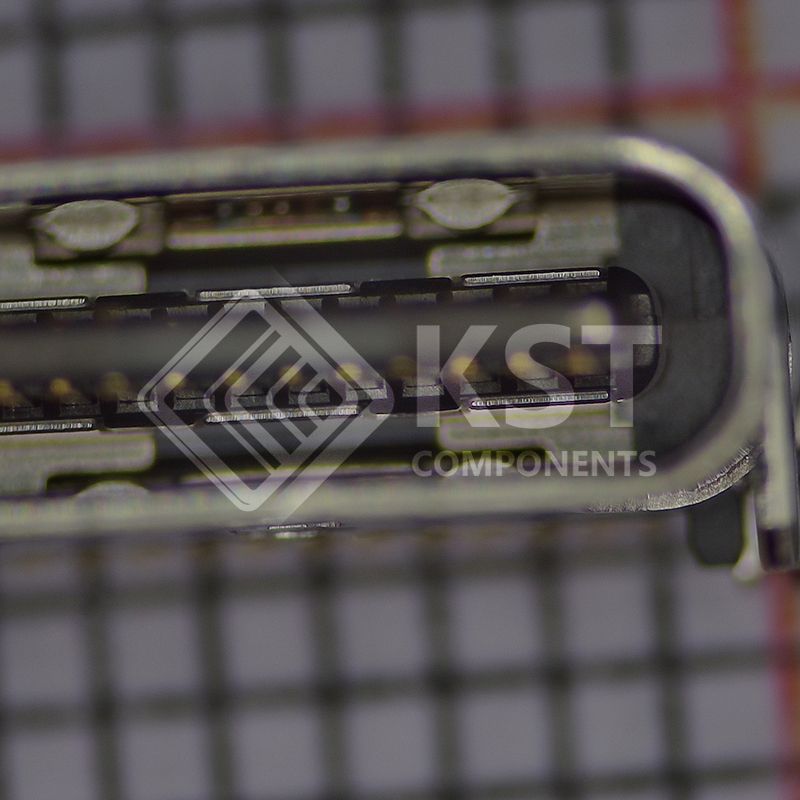

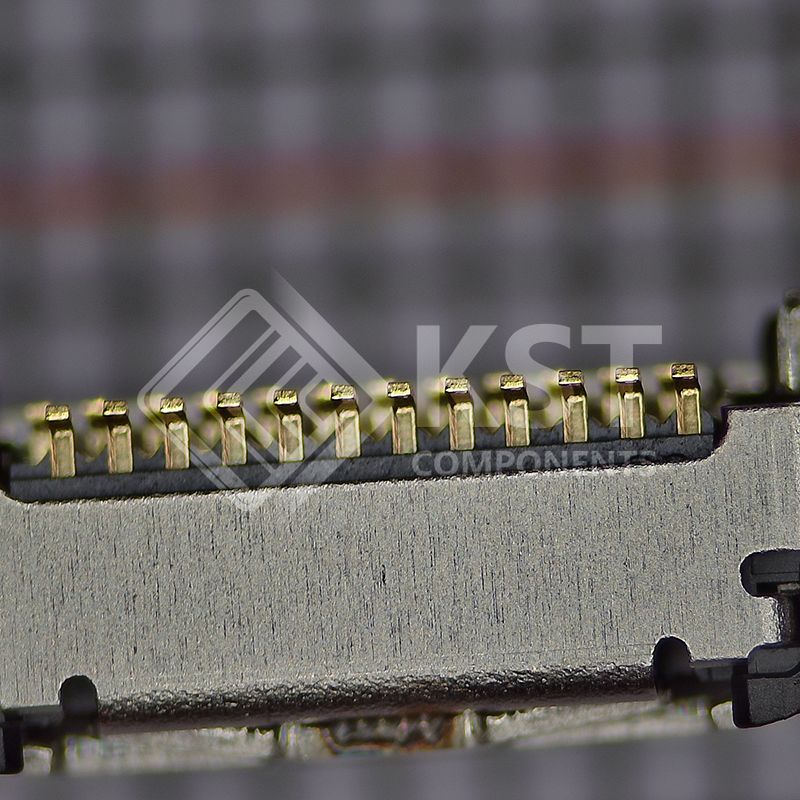

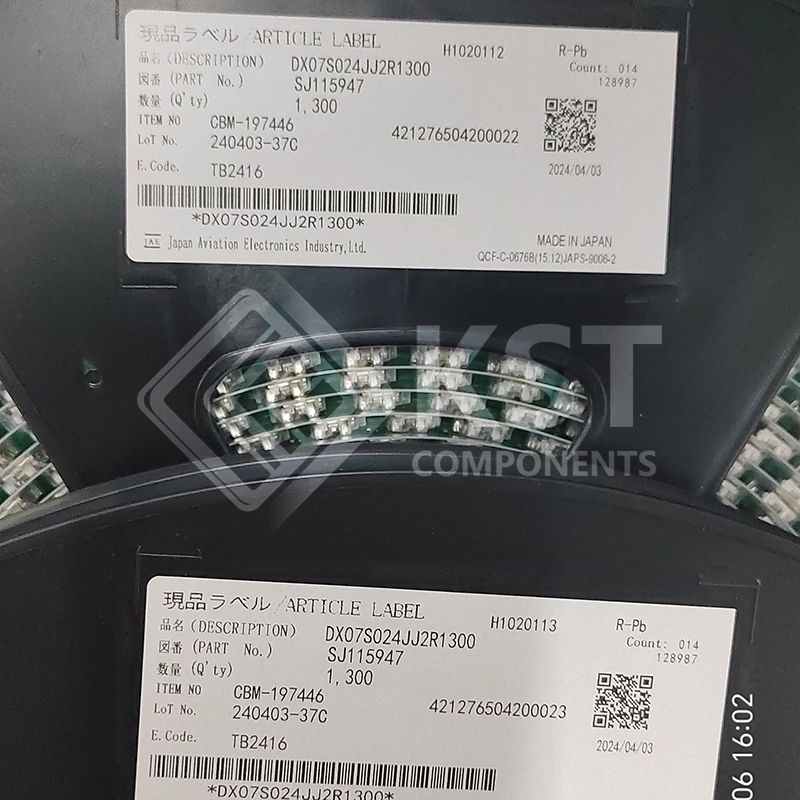

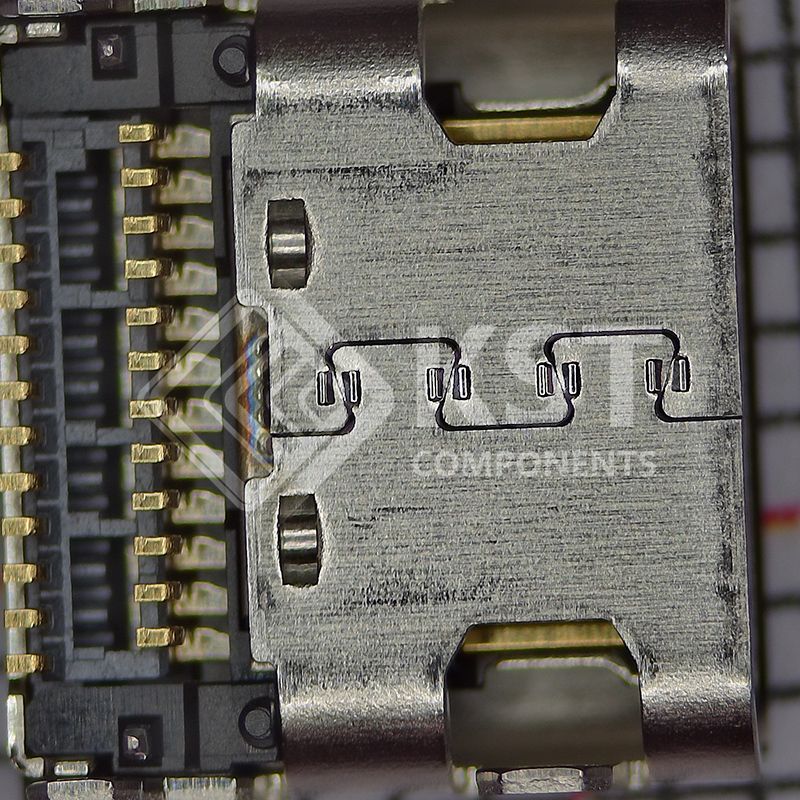

DX07S024JJ2R1300
Part Number:
DX07S024JJ2R1300
Product Classification:
LED Lighting Kits
Manufacturer:
Amphenol LTW
Description:
CONN RCP USB3.1 TYPEC 24P SMD RA
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
USB, DVI, HDMI Connectors
USB, DVI, HDMI Connector Assemblies
|
|
|
Manufacturer |
JAE Electronics
|
|
|
Series |
DX07 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
USB-C (USB TYPE-C)
|
|
|
Number of Contacts |
24
|
|
|
Gender |
Receptacle
|
|
|
Specifications |
USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
|
|
|
Mounting Type |
Surface Mount, Right Angle; Through Hole
|
|
|
Mounting Feature |
Horizontal
|
|
|
Termination |
Solder
|
|
|
Features |
Pick and Place
|
|
|
Ingress Protection |
-
|
|
|
Operating Temperature |
-30°C ~ 80°C
|
|
|
Number of Ports |
1
|
|
|
Current Rating (Amps) |
0.25A, 1.25A
|
|
|
Voltage - Rated |
48V
|
|
|
Mating Cycles |
10000
|
|
|
Shielding |
Shielded
|
|
|
Contact Finish |
Gold
|
|
|
Shell/Shielding Material |
Steel, Stainless
|
|
|
Material Flammability Rating |
-
|
|
|
Insulation Color |
Black
|
|
|
Base Product Number |
DX07S024 |
|
