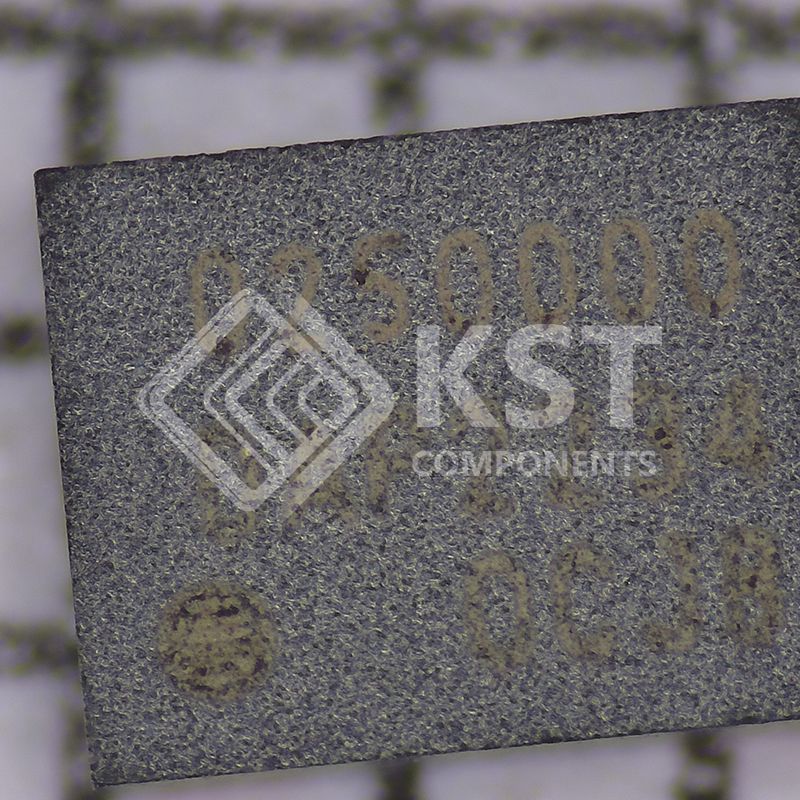

DSC1001DI1-025.0000T
Part Number:
DSC1001DI1-025.0000T
Product Classification:
AC DC Configurable Power Supply Modules
Manufacturer:
3RLab
Description:
MEMS OSC XO 25.0000MHZ CMOS SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Crystals, Oscillators, Resonators
Oscillators
|
|
|
Mfr |
Microchip Technology |
|
|
Series |
DSC1001 |
|
|

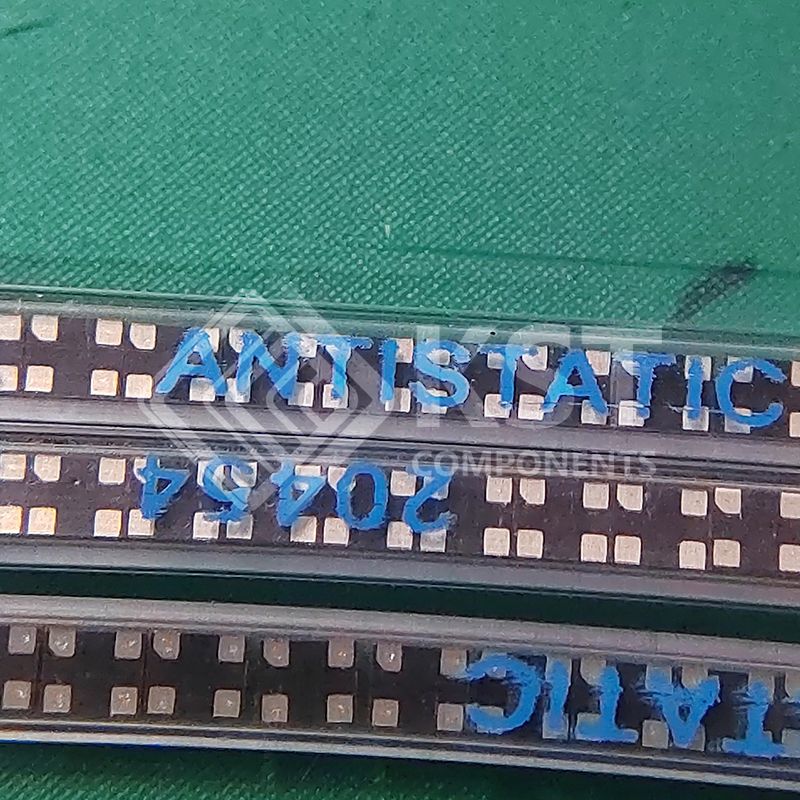

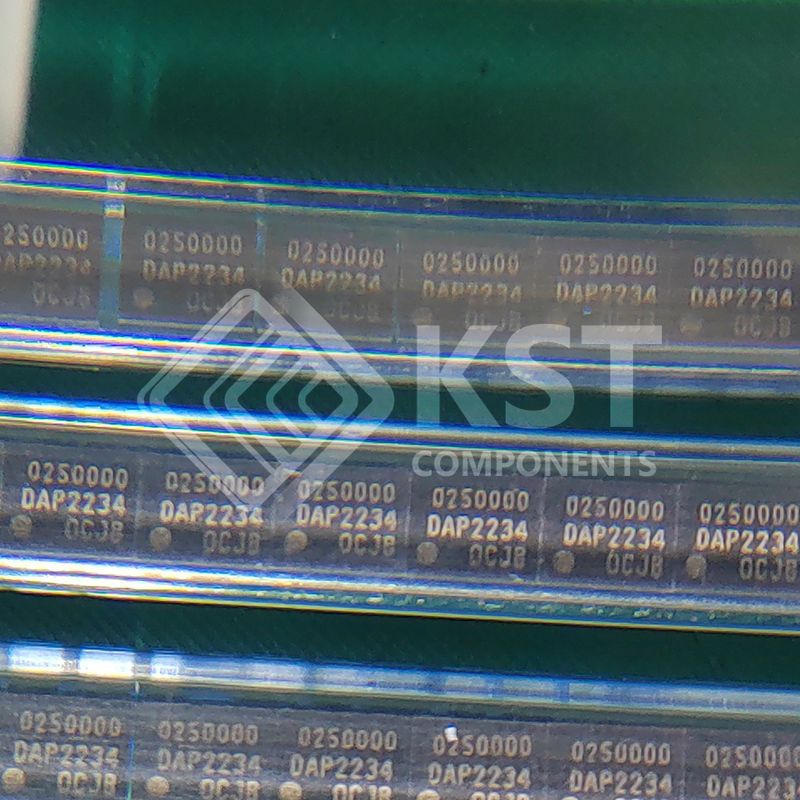

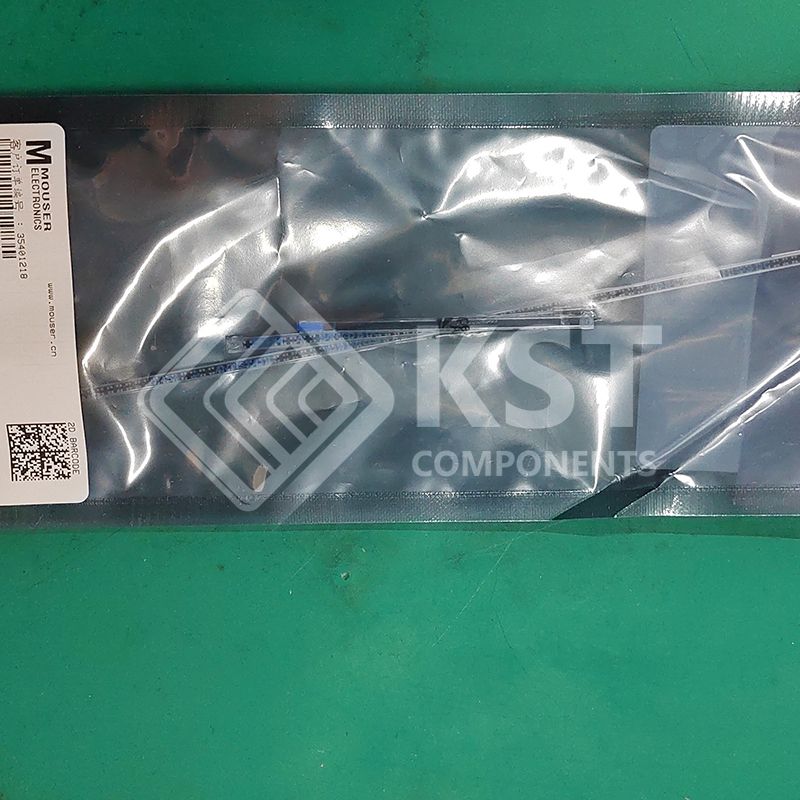

Packaging |
Strip
|
|
|
Part Status |
Active
|
|
|
Base Resonator |
MEMS |
|
|
Type |
XO (Standard) |
|
|
Frequency |
25 MHz
|
|
|
Function |
Standby (Power Down)
|
|
|
Output |
CMOS
|
|
|
Voltage - Supply |
1.8V ~ 3.3V
|
|
|
Frequency Stability |
±50ppm
|
|
|
Absolute Pull Range (APR) |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Spread Spectrum Bandwidth |
-
|
|
|
Current - Supply (Max) |
8mA
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|

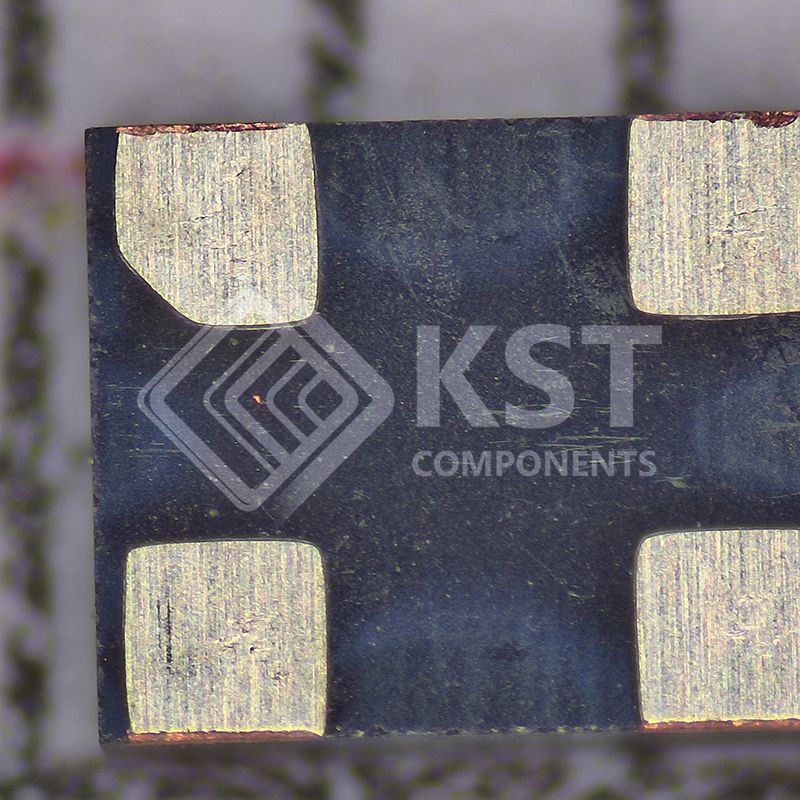

Package / Case |
4-VDFN
|
|
|
Supplier Device Package |
4-CDFN (2.5x2)
|
|
|
Size / Dimension |
0.098" L x 0.079" W (2.50mm x 2.00mm)
|
|
|

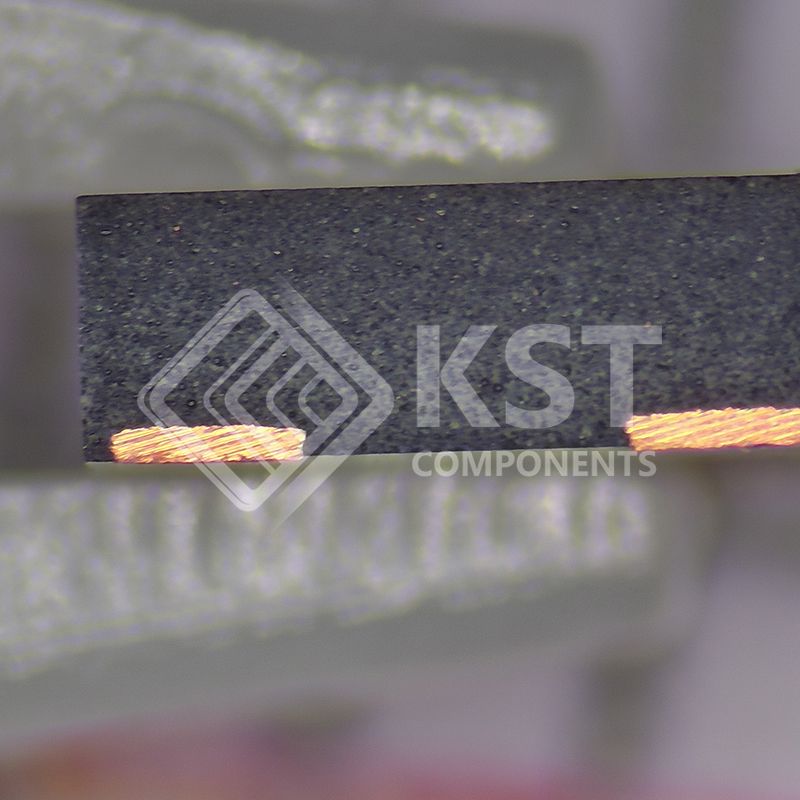

Height - Seated (Max) |
0.035" (0.90mm)
|
|
|
Current - Supply (Disable) (Max) |
15µA
|
