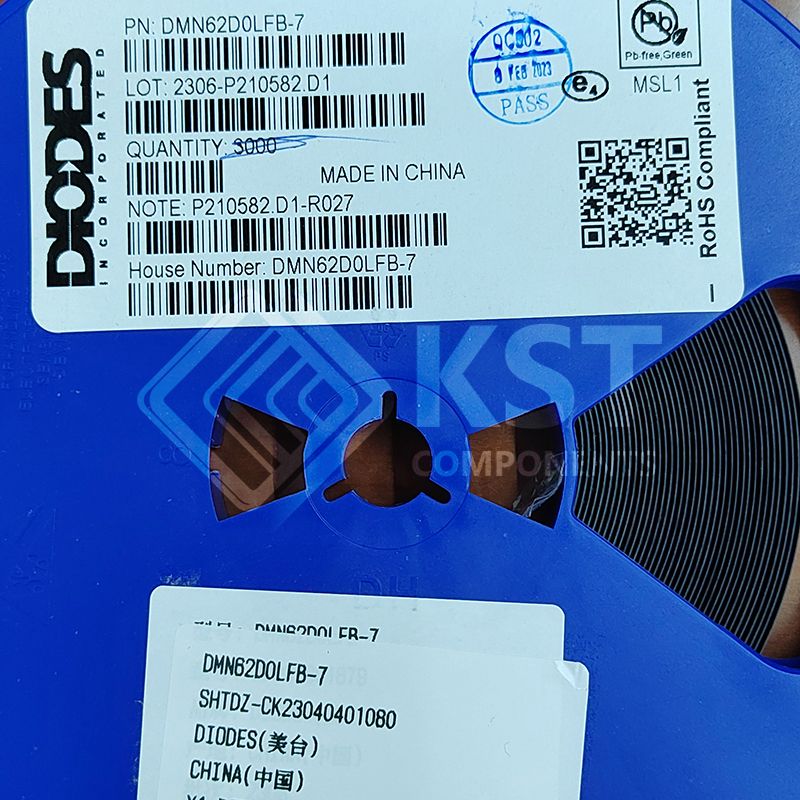

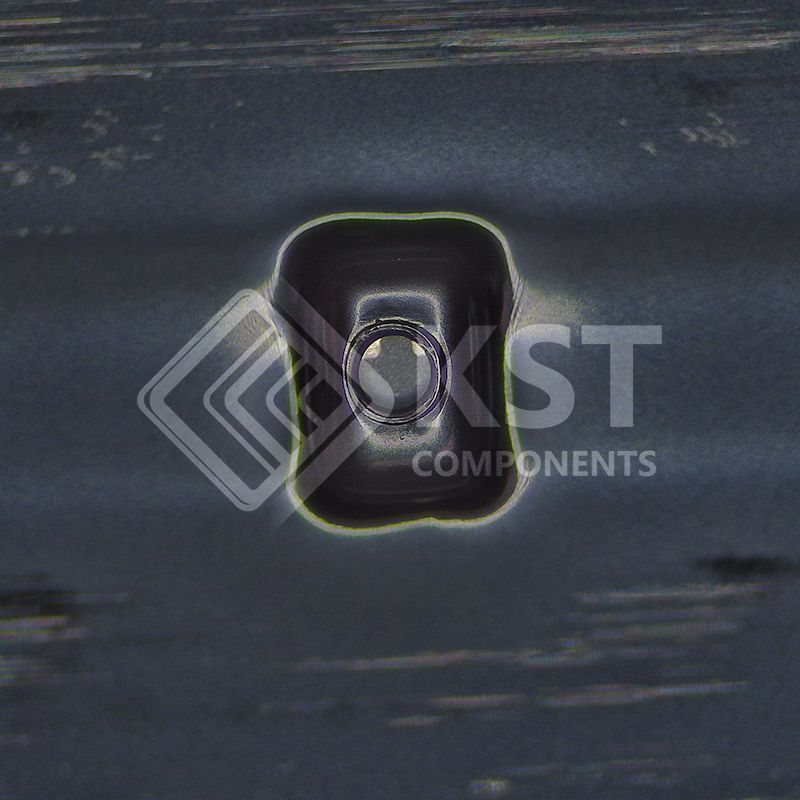

DMN62D0LFB-7
Part Number:
DMN62D0LFB-7
Product Classification:
Solid State Relays (SSR)
Manufacturer:
Accuenergy
Description:
MOSFET N-CH 60V 100MA 3DFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Diodes Incorporated |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
60 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
100mA (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
1.5V, 4V
|
|
|
Rds On (Max) @ Id, Vgs |
2Ohm @ 100mA, 4V
|
|
|
Vgs(th) (Max) @ Id |
1V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
0.45 nC @ 4.5 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
32 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
470mW (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
X1-DFN1006-3
|
|
|
Package / Case |
3-UFDFN |
|
|
Base Product Number |
DMN62 |
