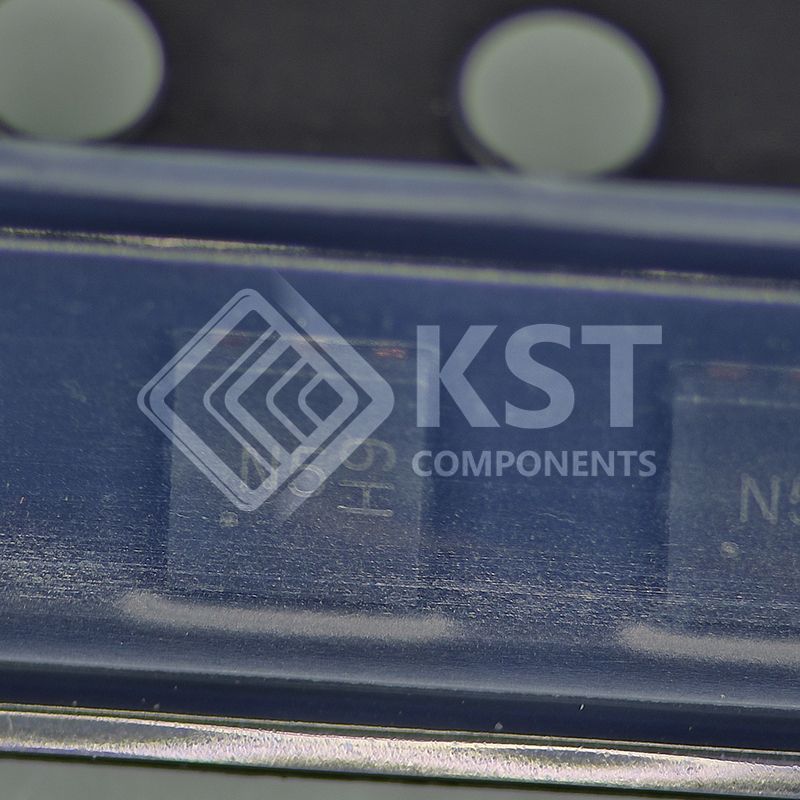

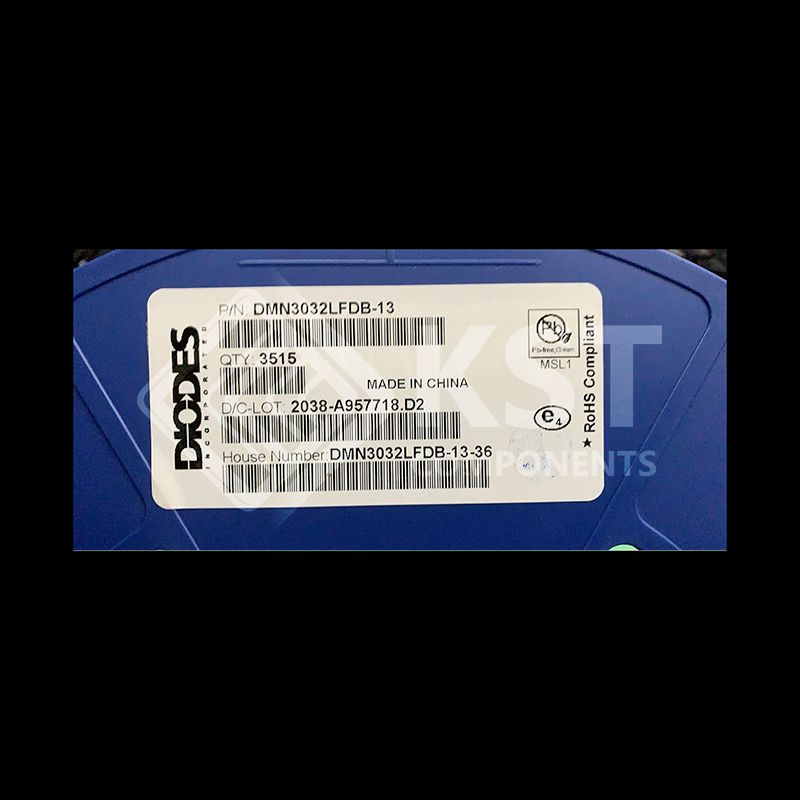

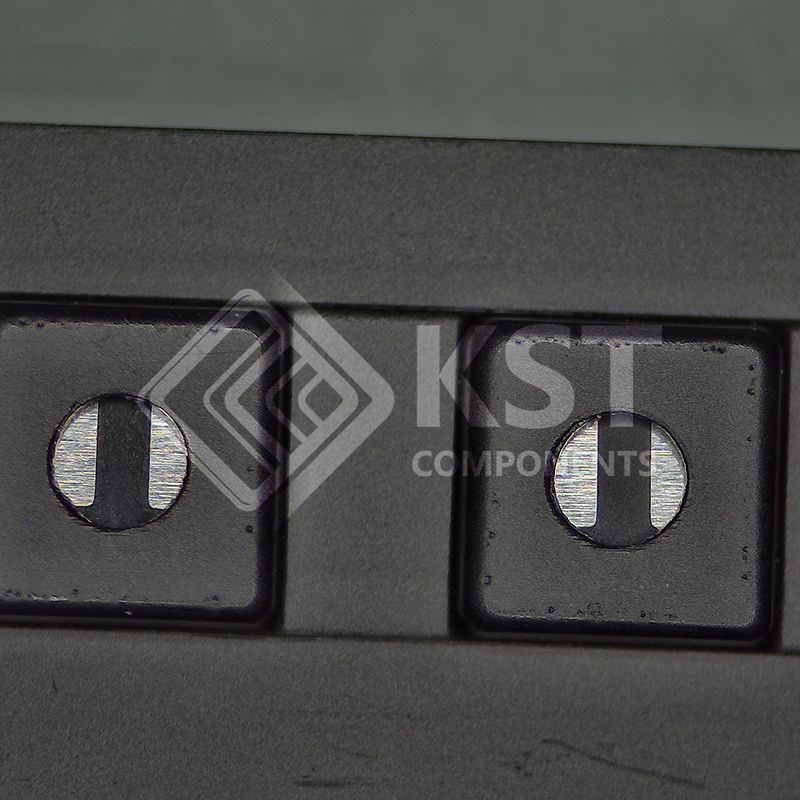

DMN3032LFDB-13
Part Number:
DMN3032LFDB-13
Product Classification:
Solid State Relays (SSR)
Manufacturer:
Accuenergy
Description:
MOSFET 2N-CH 30V 6.2A 6UDFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer |
Diodes Incorporated
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Technology |
MOSFET (Metal Oxide)
|
|
|
Configuration |
2 N-Channel (Dual)
|
|
|
FET Feature |
-
|
|
|
Drain to Source Voltage (Vdss) |
30V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
6.2A
|
|
|
Rds On (Max) @ Id, Vgs |
30mOhm @ 5.8A, 10V
|
|
|
Vgs(th) (Max) @ Id |
2V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
10.6nC @ 10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
500pF @ 15V
|
|
|
Power - Max |
1W
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
6-UDFN Exposed Pad
|
|
|
Supplier Device Package |
U-DFN2020-6 (Type B)
|
|
|
Base Product Number |
DMN3032 |
