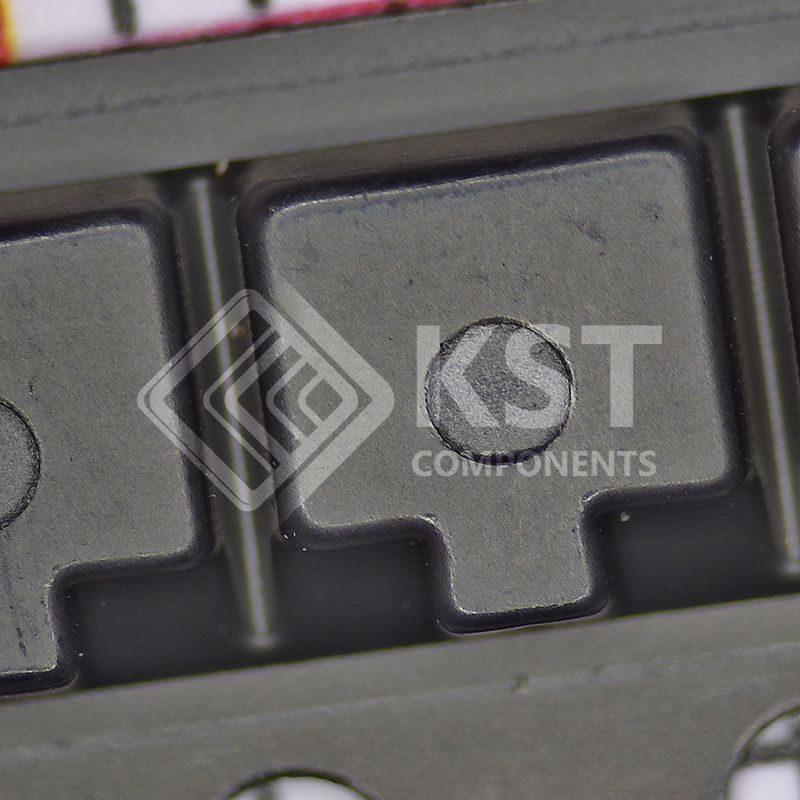

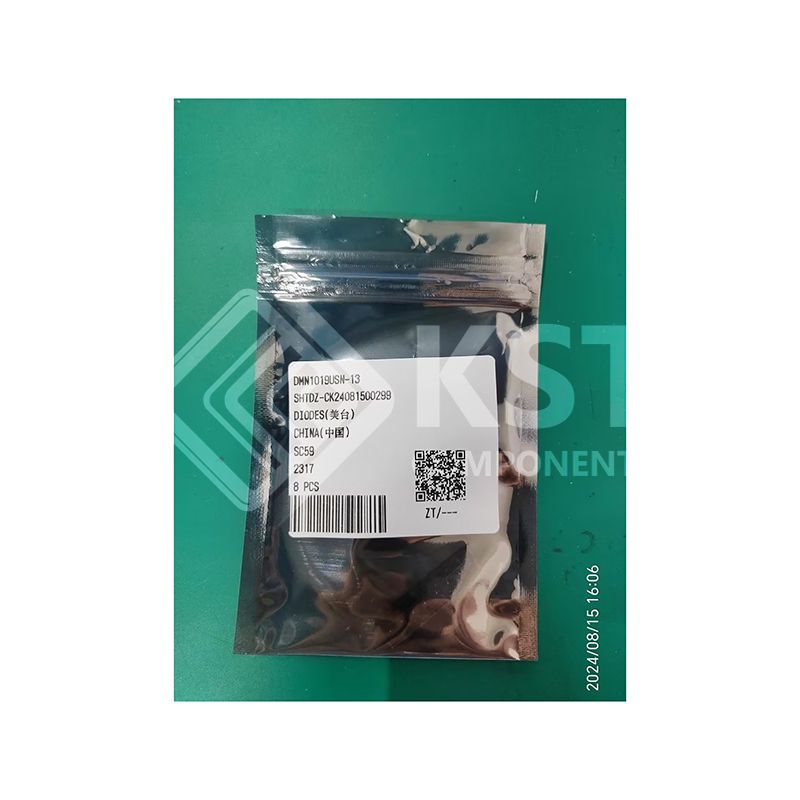

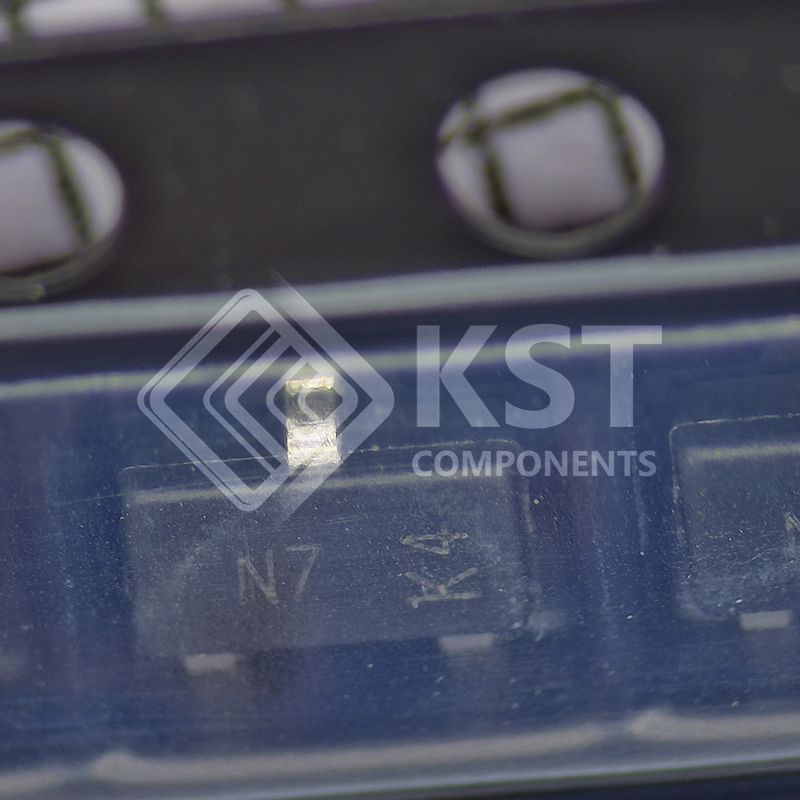

DMN1019USN-13
Part Number:
DMN1019USN-13
Product Classification:
Solid State Relays (SSR)
Manufacturer:
Accuenergy
Description:
MOSFET N-CH 12V 9.3A SC59
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Diodes Incorporated |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
12 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
9.3A (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
1.2V, 2.5V
|
|
|
Rds On (Max) @ Id, Vgs |
10mOhm @ 9.7A, 4.5V
|
|
|
Vgs(th) (Max) @ Id |
800mV @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
50.6 nC @ 8 V
|
|
|
Vgs (Max) |
±8V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
2426 pF @ 10 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
680mW (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
SC-59-3
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
|
Base Product Number |
DMN1019 |
