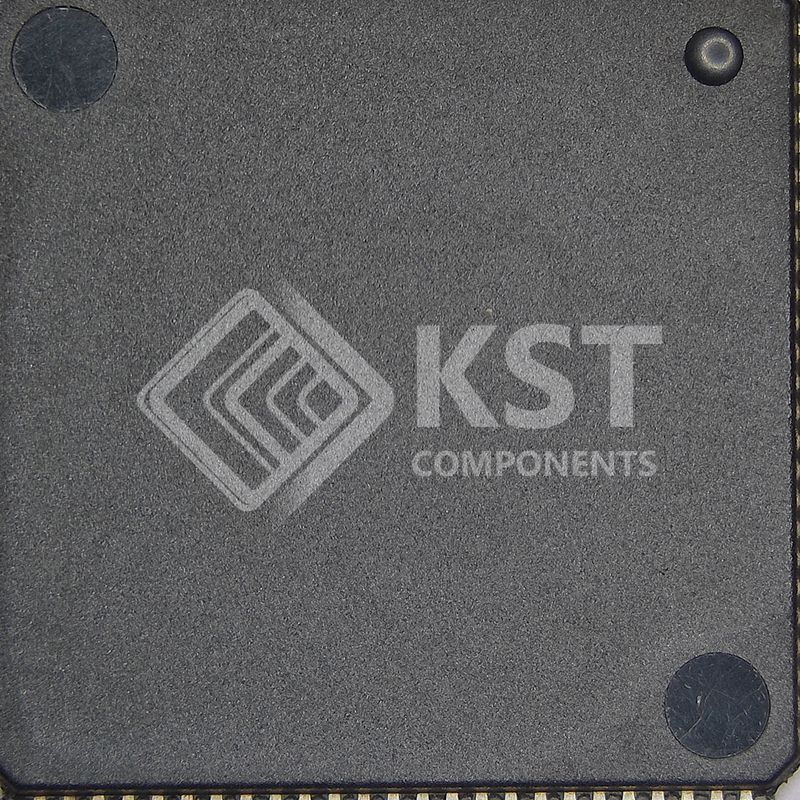

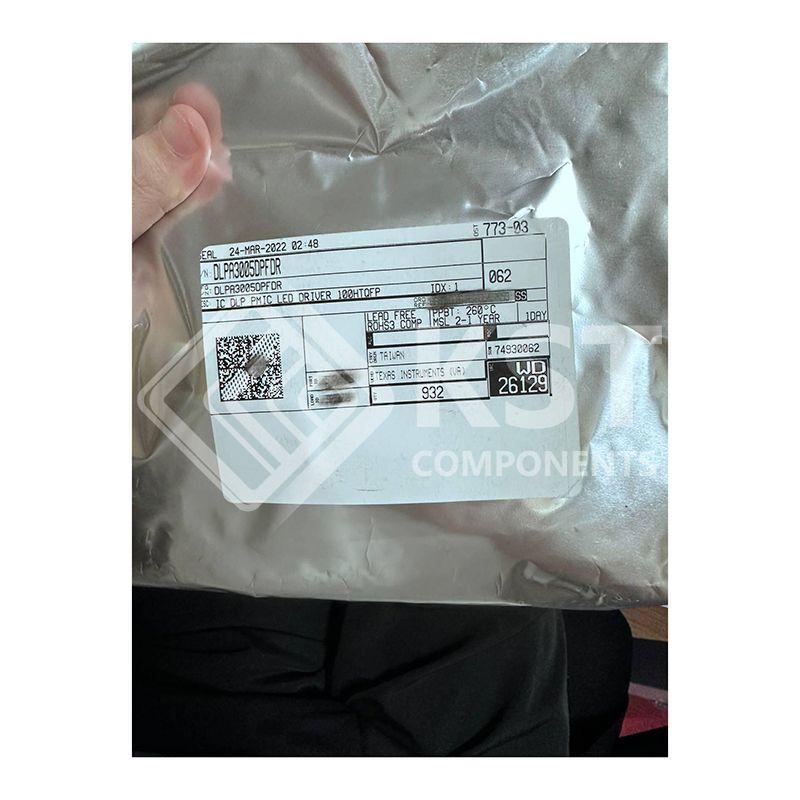

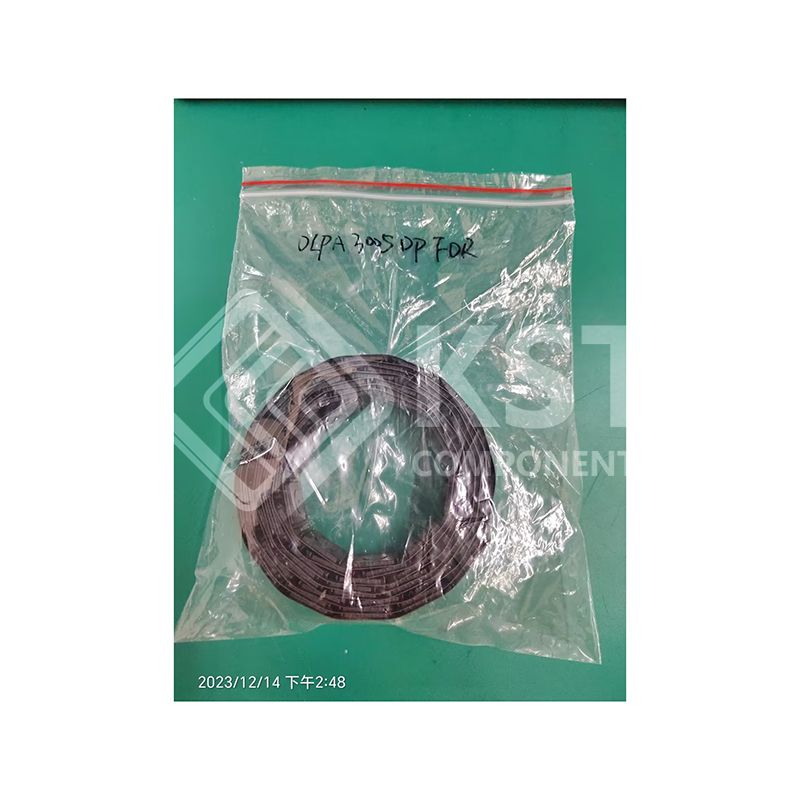

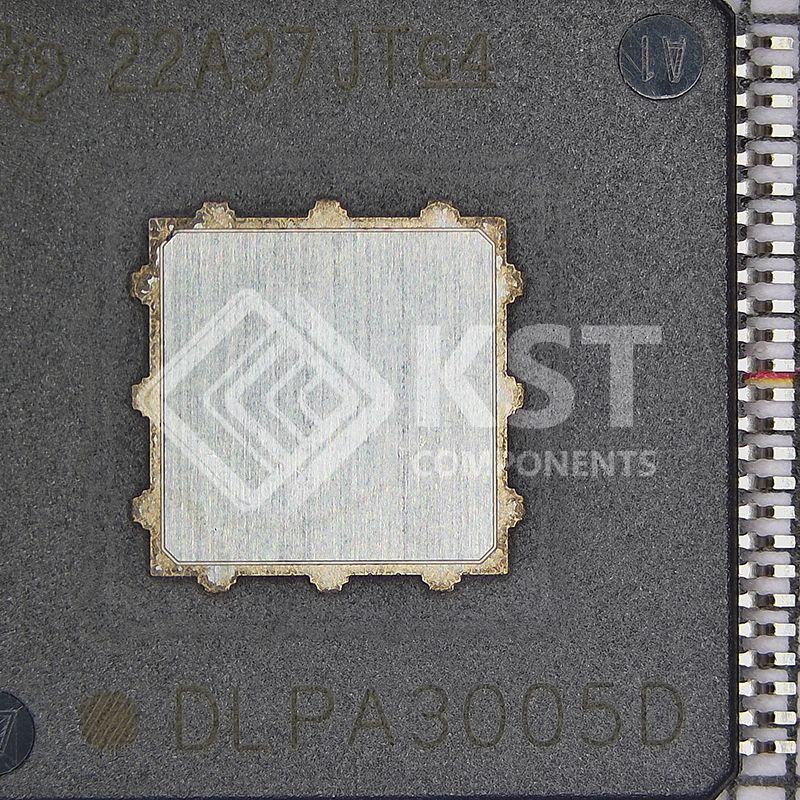

DLPA3005DPFDR

• High-efficiency, high-current RGB LED driver
• Drivers for external buck FETs up to 16 A
• Drivers for external RGB switches
• 10-bit programmable current per channel
• Inputs to select color-sequential RGB LEDs
• Generation of DMD high voltage supplies
• Two high efficiency buck converters to generate
the DLPC343x and DMD supply
• One high efficiency, 8-bit programmable buck
converter for fan driver application or general
power supply. General purpose buck2 (PWR6) is
currently supported.
• Two LDOs supplying auxiliary voltages
• Analog MUX for measuring internal and external
nodes such as a thermistor and reference levels
• Monitoring/protections: thermal shutdown, hot die,
and undervoltage lockout (UVLO)
