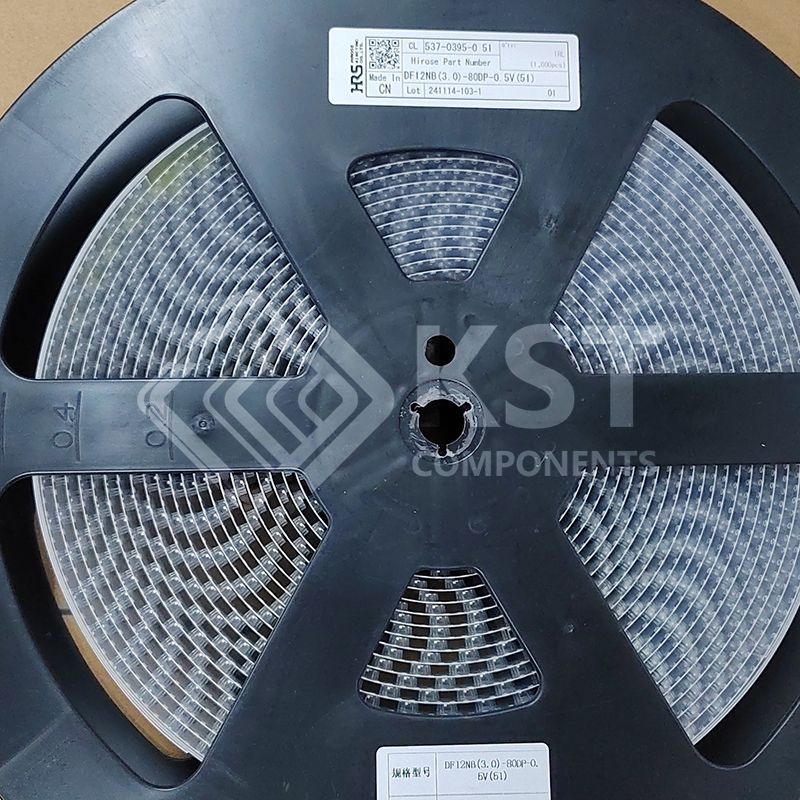

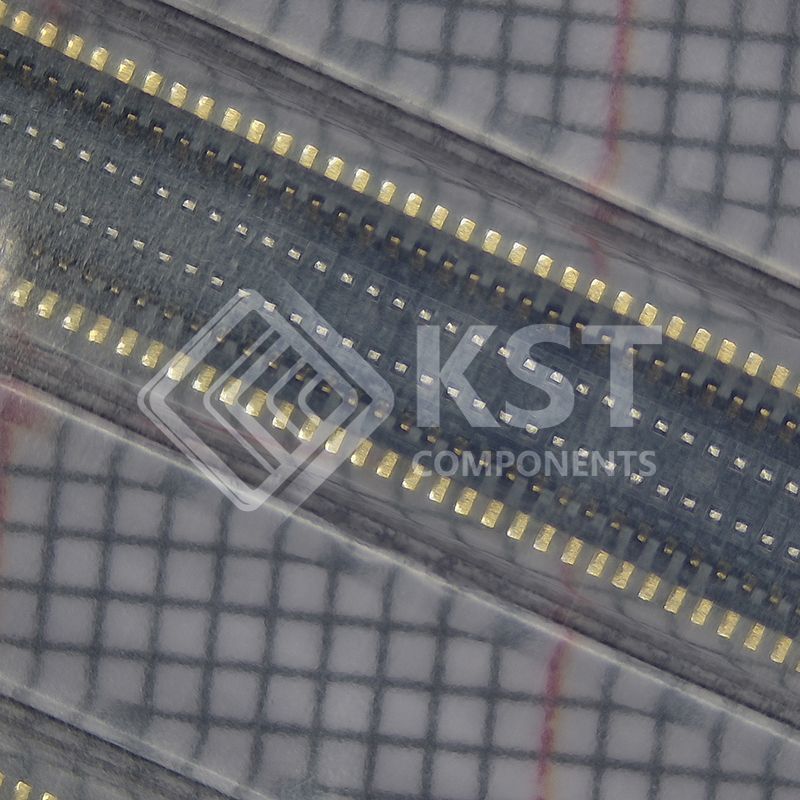

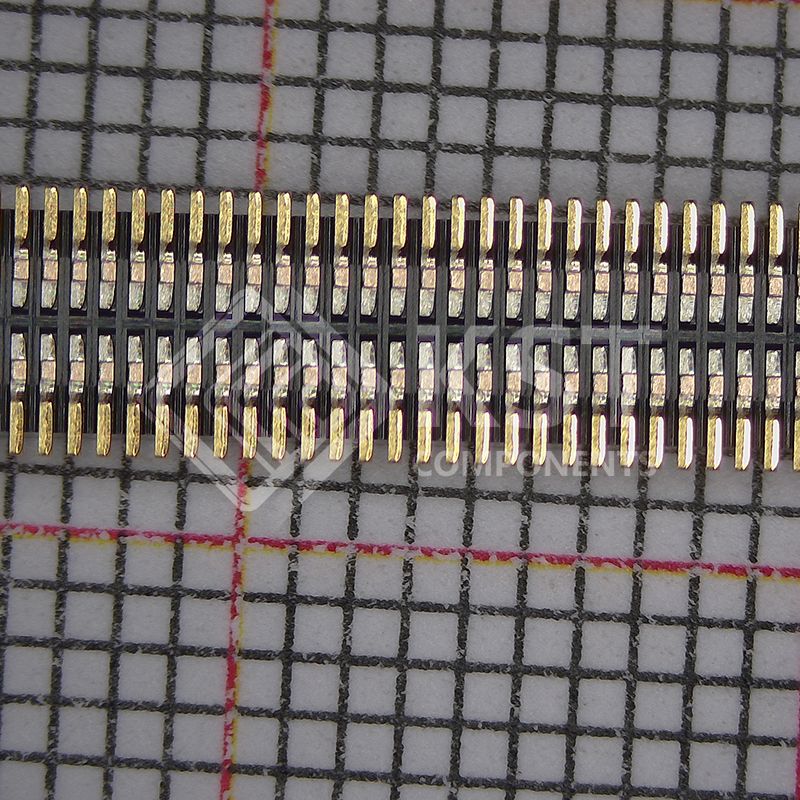

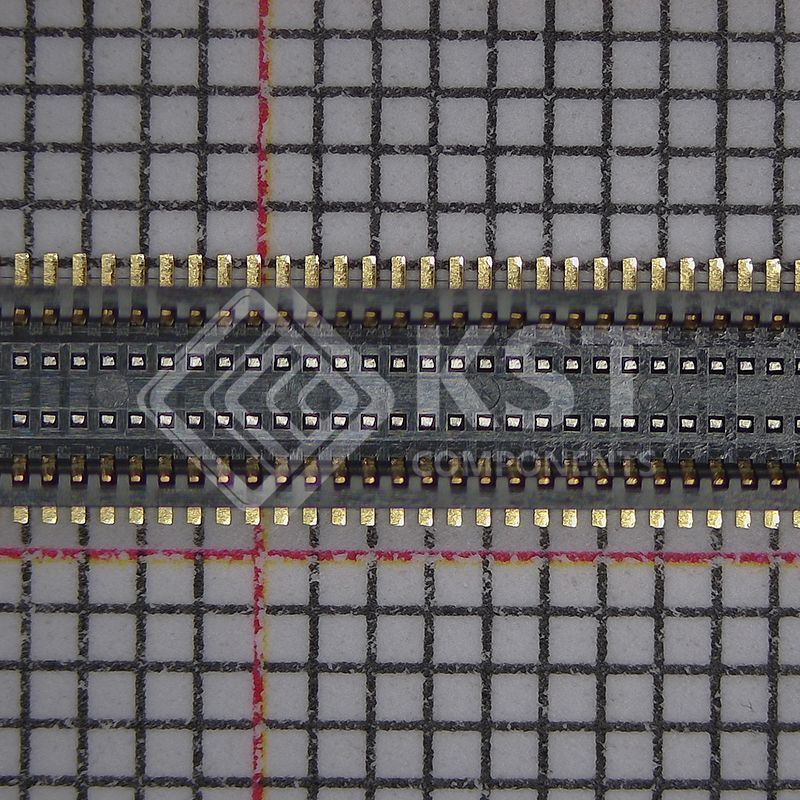

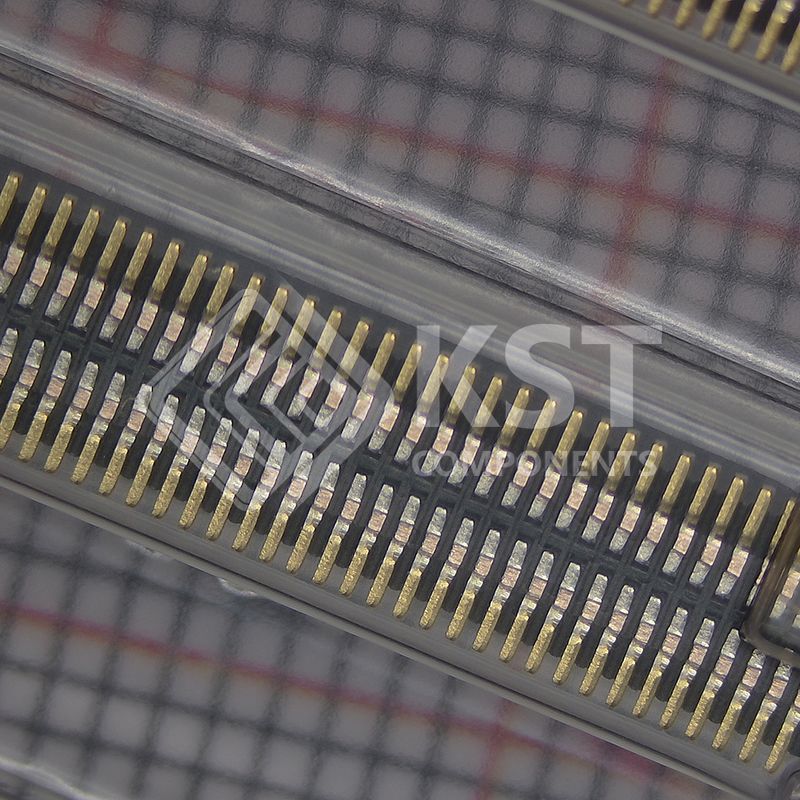

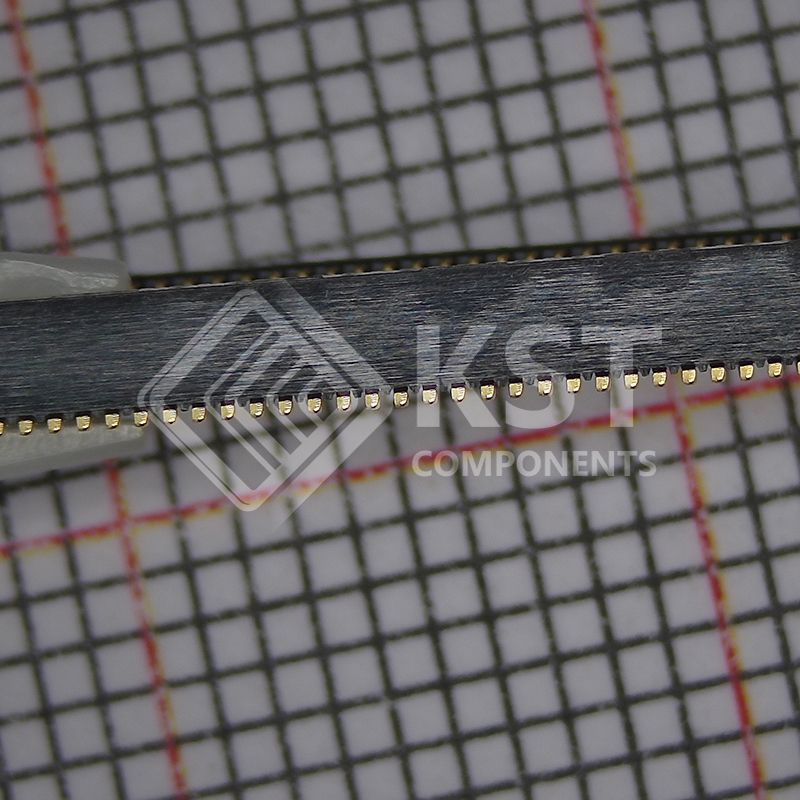

DF12NB(3.0)-80DP-0.5V(51)
Part Number:
DF12NB(3.0)-80DP-0.5V(51)
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
Allied Vision
Description:
CONN HDR 80POS SMD GOLD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer |
Hirose Electric Co Ltd
|
|
|
Series |
DF12N |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header, Outer Shroud Contacts
|
|
|
Number of Positions |
80
|
|
|
Pitch |
0.020" (0.50mm)
|
|
|
Number of Rows |
2
|
|
|
Mounting Type |
Surface Mount
|
|
|
Features |
Solder Retention
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
8.00µin (0.203µm)
|
|
|
Mated Stacking Heights |
3mm
|
|
|
Height Above Board |
0.091" (2.30mm)
|
|
|
Base Product Number |
DF12NB(3.0) |
