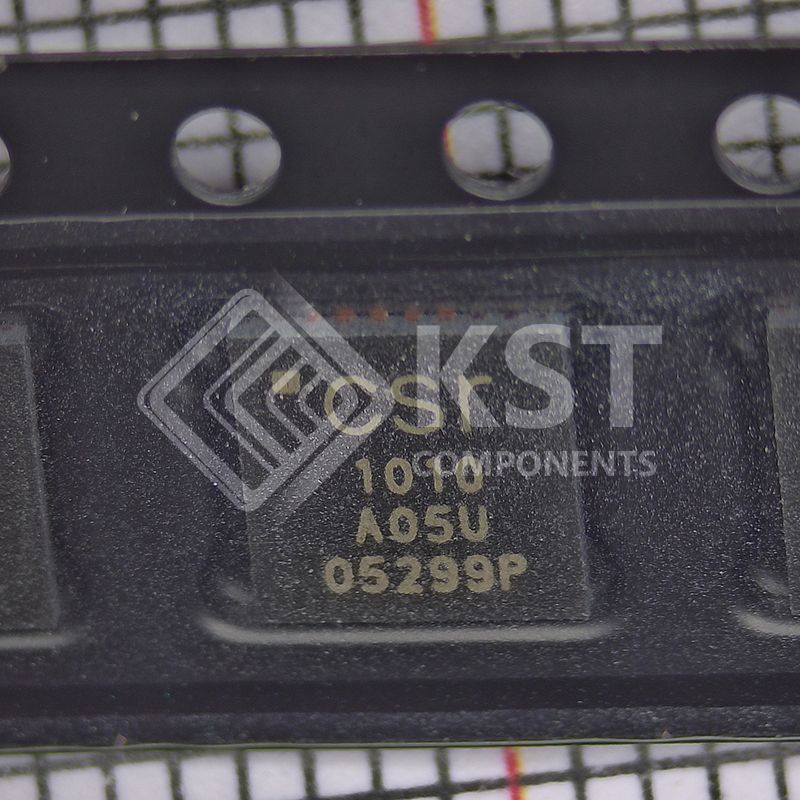

CSR1010A05-IQQM-R
Part Number:
CSR1010A05-IQQM-R
Product Classification:
Accessories
Manufacturer:
ACCES I/O Products
Description:
IC RF TXRX+MCU BLE 32QFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
RF and Wireless
RF Transceiver ICs
|
|
|
Mfr |
Qualcomm |
|
|
Series |
µEnergy® |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Not For New Designs
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Type |
TxRx + MCU
|
|
|
RF Family/Standard |
Bluetooth
|
|
|
Protocol |
Bluetooth v4.0 |
|
|
Modulation |
-
|
|
|
Frequency |
2.4GHz |
|
|
Data Rate (Max) |
3.69Mbaud
|
|
|
Power - Output |
9dBm
|
|
|
Sensitivity |
-93dBm
|
|
|
Memory Size |
64kB RAM, 64kB ROM
|
|
|
Serial Interfaces |
I2C, SPI, UART
|
|
|
GPIO |
15
|
|
|
Voltage - Supply |
1.2V ~ 3.6V
|
|
|
Current - Receiving |
20mA
|
|
|
Current - Transmitting |
18mA
|
|
|
Operating Temperature |
-30°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

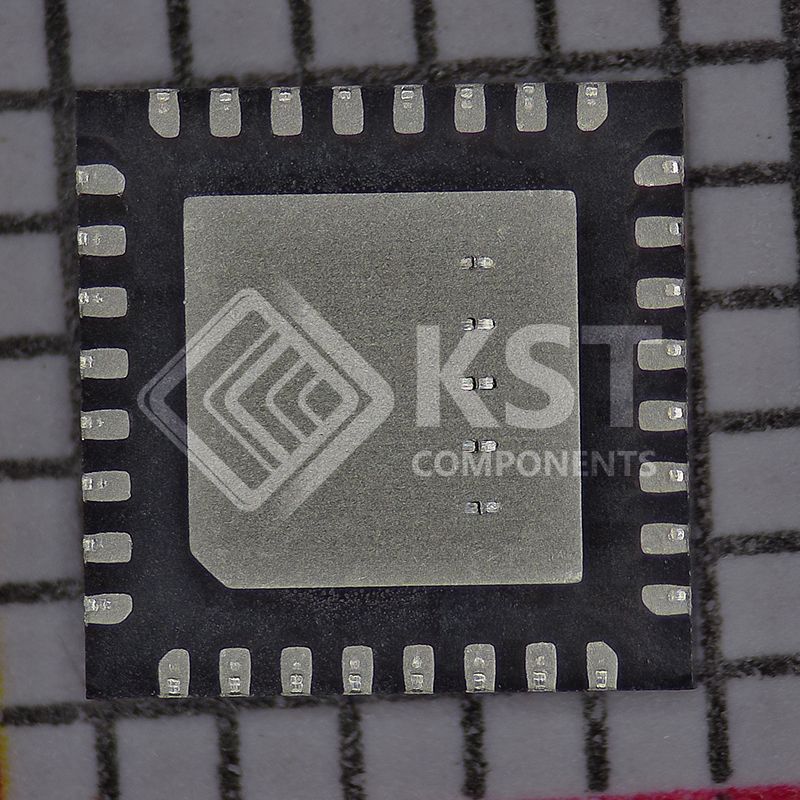

32-UFQFN Exposed Pad
|
|
|
Supplier Device Package |
32-QFN (5x5)
|
|
|
Base Product Number |
CSR1010 |
