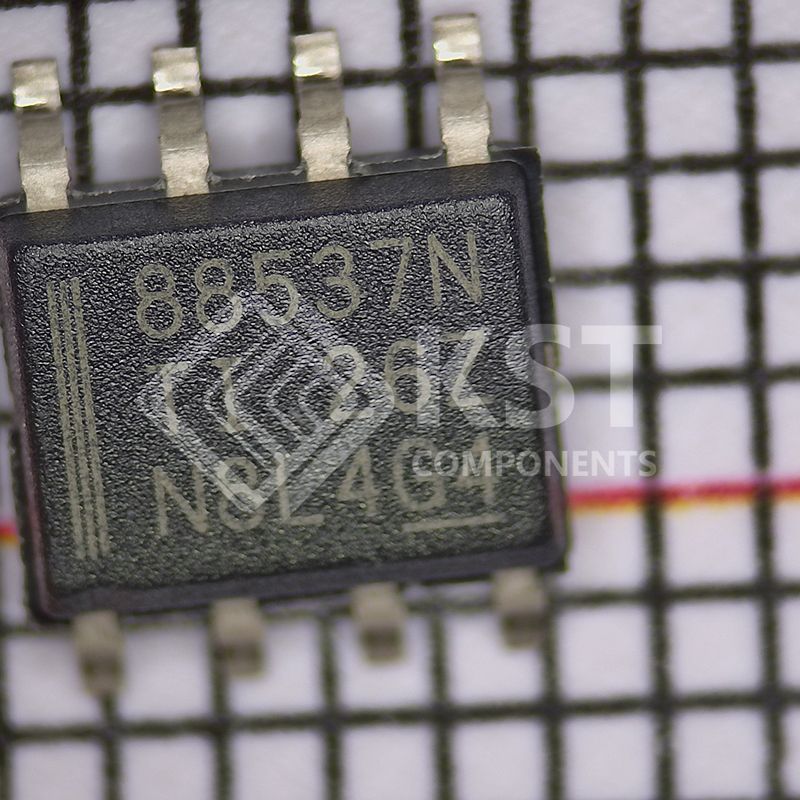

CSD88537NDT
Part Number:
CSD88537NDT
Product Classification:
Solid State Relays (SSR)
Manufacturer:
3PEAK
Description:
MOSFET 2N-CH 60V 15A 8SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
NexFET™ |
|
|

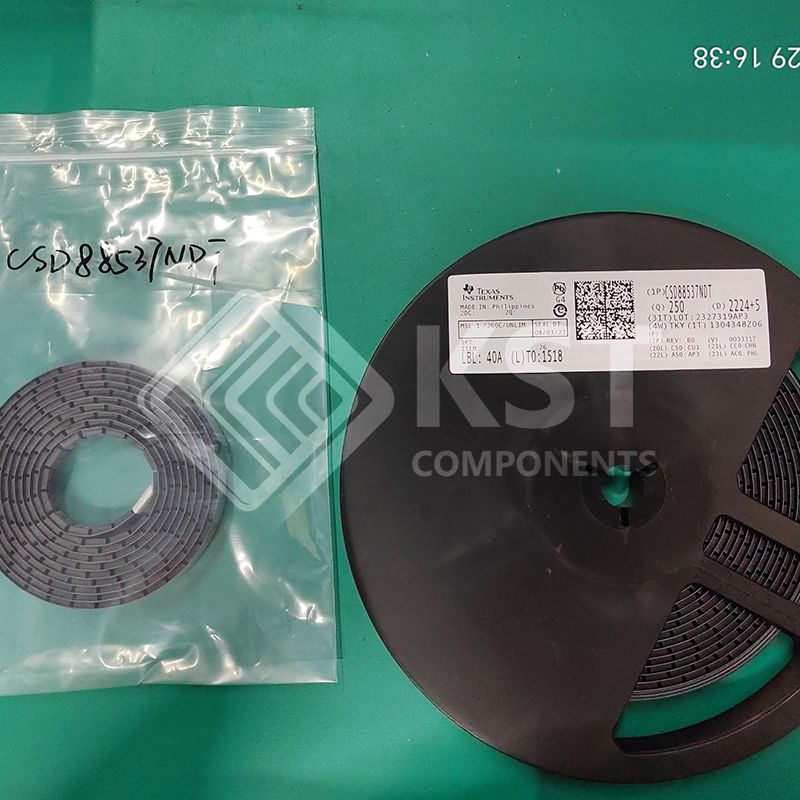

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
MOSFET (Metal Oxide)
|
|
|
Configuration |
2 N-Channel (Dual)
|
|
|
FET Feature |
-
|
|
|
Drain to Source Voltage (Vdss) |
60V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
15A
|
|
|
Rds On (Max) @ Id, Vgs |
15mOhm @ 8A, 10V
|
|
|
Vgs(th) (Max) @ Id |
3.6V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
18nC @ 10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1400pF @ 30V
|
|
|
Power - Max |
2.1W
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SOIC
|
|
|
Base Product Number |
CSD88537 |
