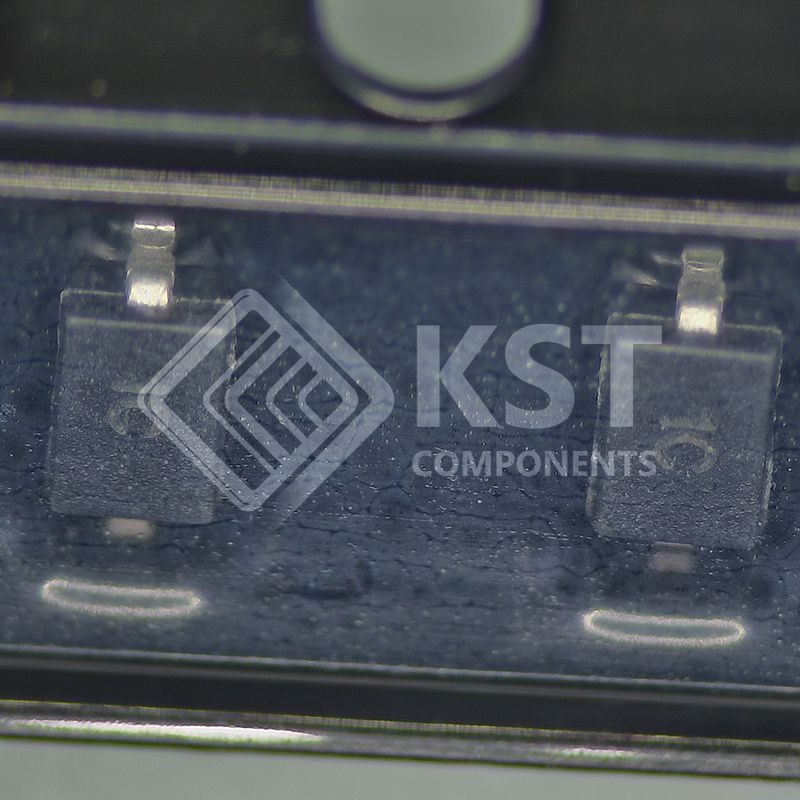

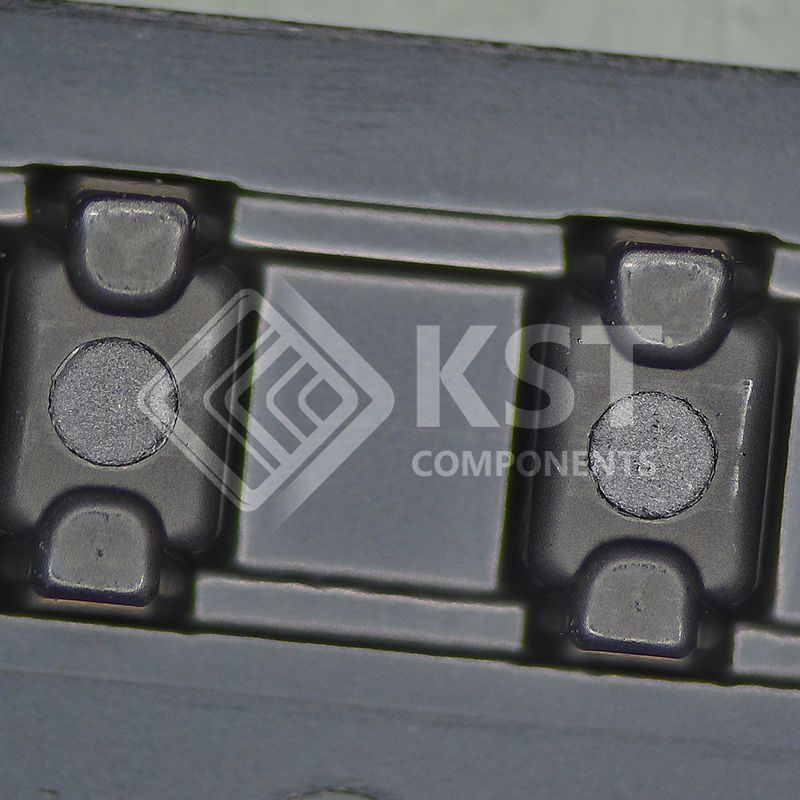

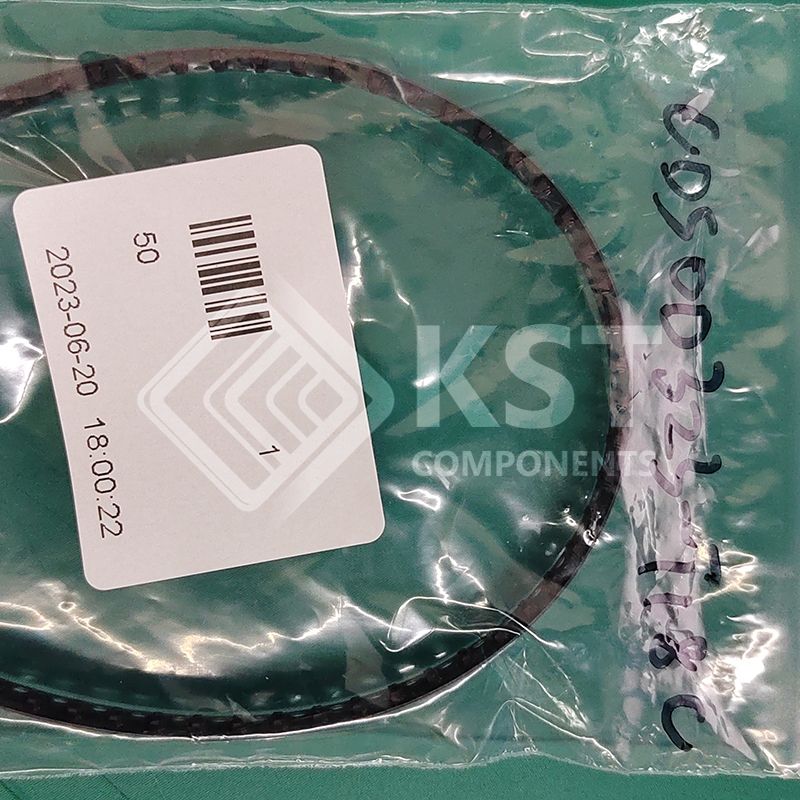

CDSOD323-T18C
Part Number:
CDSOD323-T18C
Product Classification:
Configurable Switch Lens
Manufacturer:
Almit (ANA TRADING)
Description:
TVS DIODE 18VWM 45VC SOD323
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
Bourns Inc. |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Zener
|
|
|
Bidirectional Channels |
1
|
|
|
Voltage - Reverse Standoff (Typ) |
18V
|
|
|
Voltage - Breakdown (Min) |
20V
|
|
|
Voltage - Clamping (Max) @ Ipp |
45V (Typ)
|
|
|
Current - Peak Pulse (10/1000µs) |
8A (8/20µs)
|
|
|
Power - Peak Pulse |
350W
|
|
|
Power Line Protection |
No
|
|
|
Applications |
General Purpose
|
|
|
Capacitance @ Frequency |
3pF @ 1MHz
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
SC-76, SOD-323
|
|
|
Supplier Device Package |
SOD-323 |
|
|
Base Product Number |
CDSOD323 |
