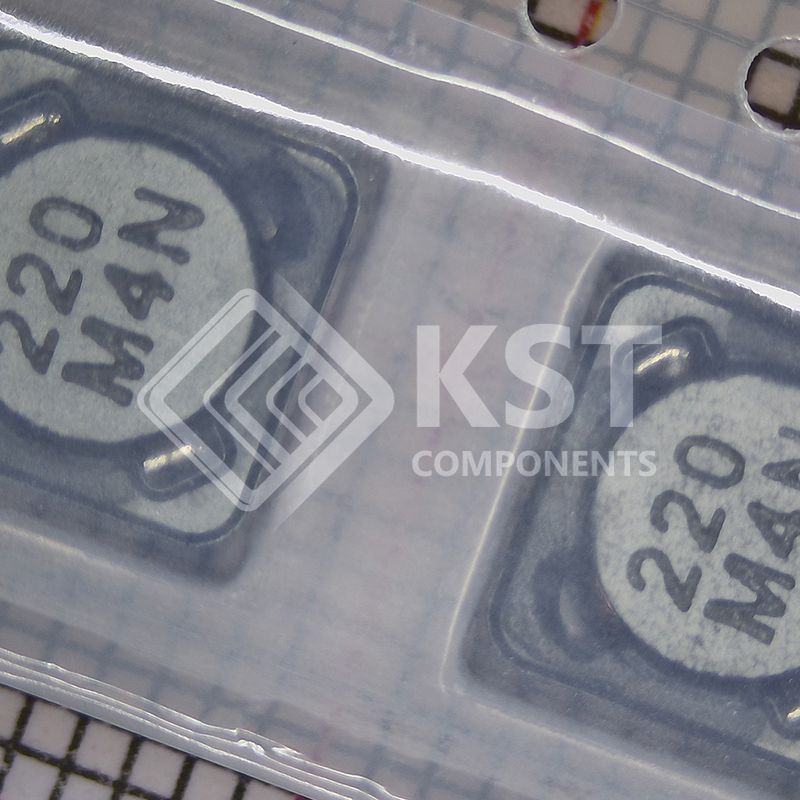

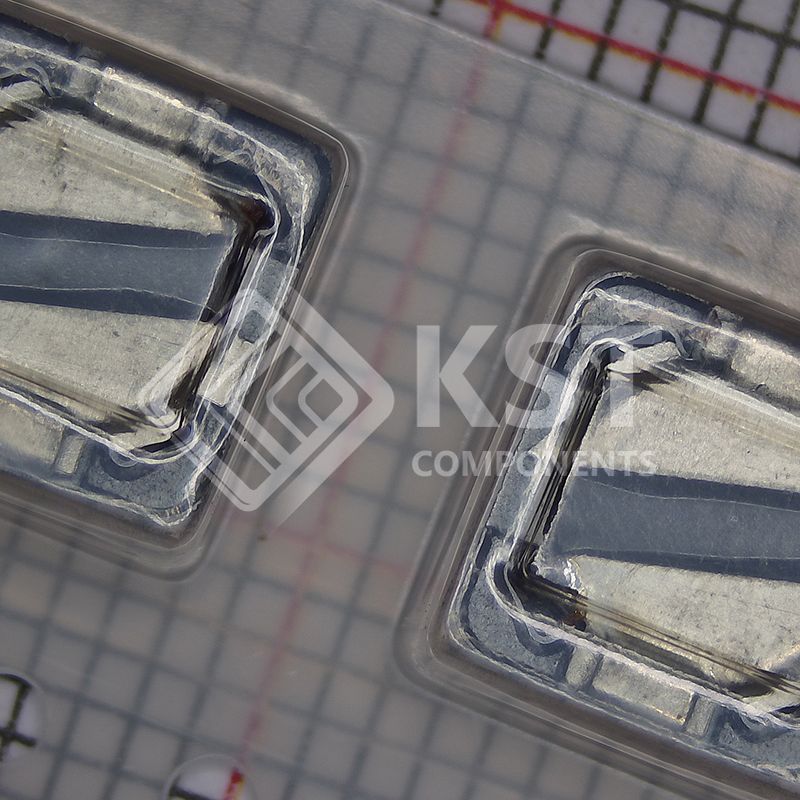

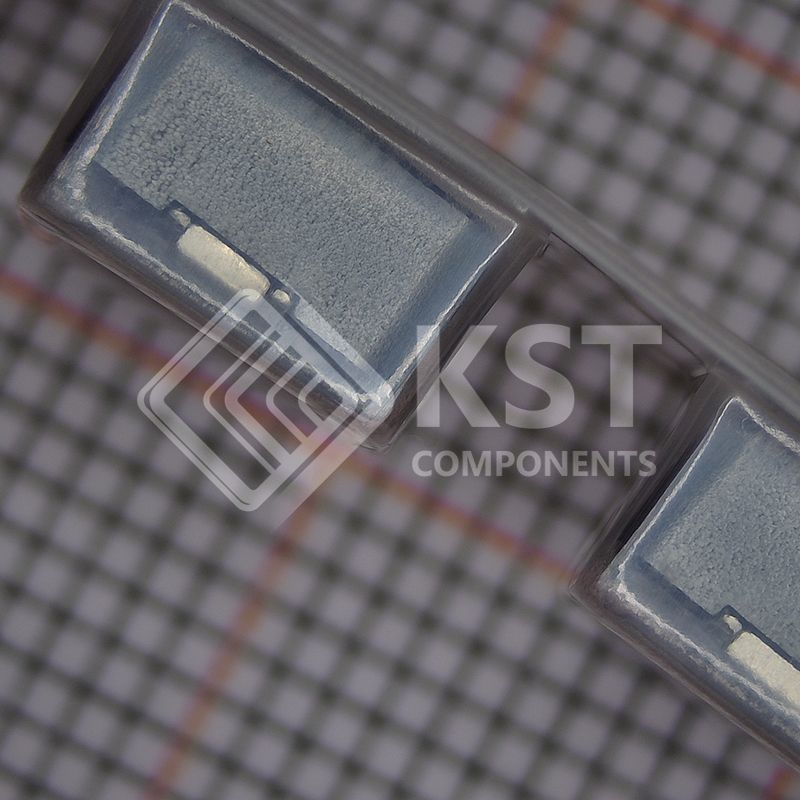

CDRH74NP-220MC-B
Part Number:
CDRH74NP-220MC-B
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
APG
Description:
FIXED IND 22UH 1.23A 110MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Sumida America Components Inc. |
|
|
Series |
CDRH74 |
|
|
Packaging |

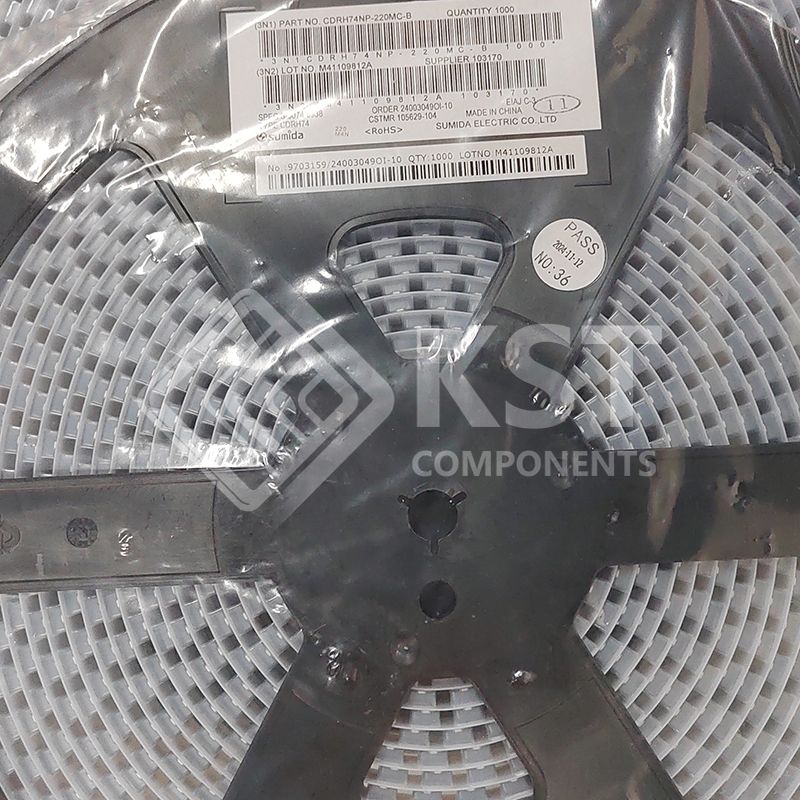

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
-
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
22 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
1.23 A |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
110mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
-
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 100°C
|
|
|
Inductance Frequency - Test |
1 kHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.287" L x 0.287" W (7.30mm x 7.30mm)
|
|
|
Height - Seated (Max) |
0.177" (4.50mm)
|
