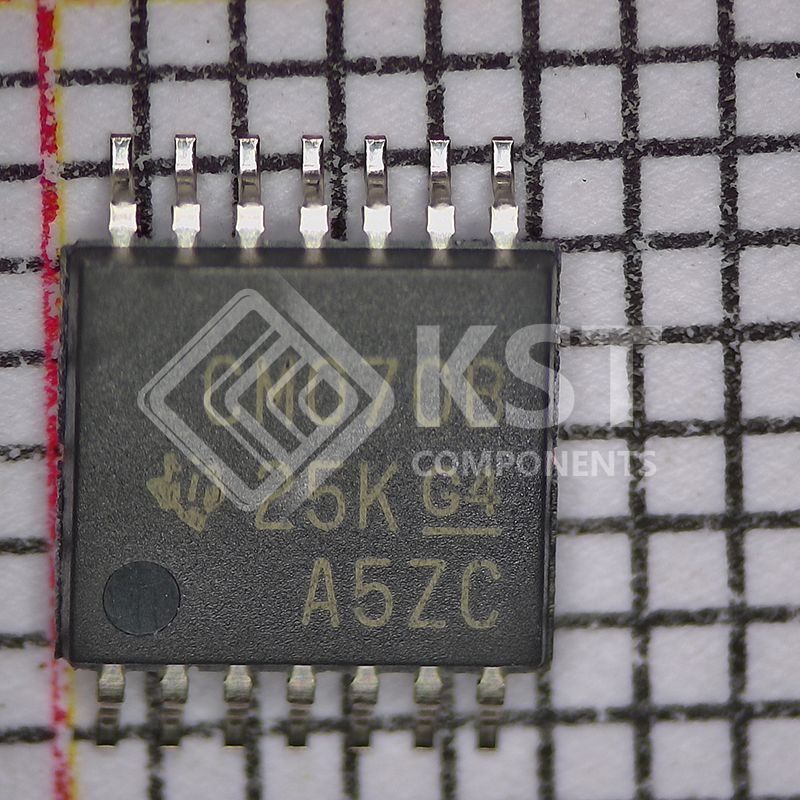

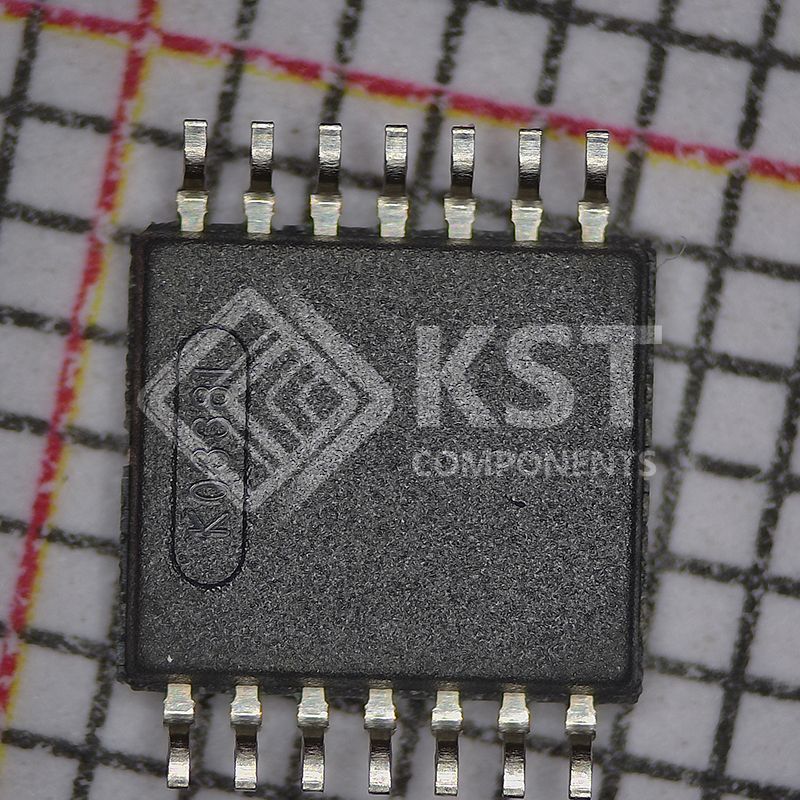

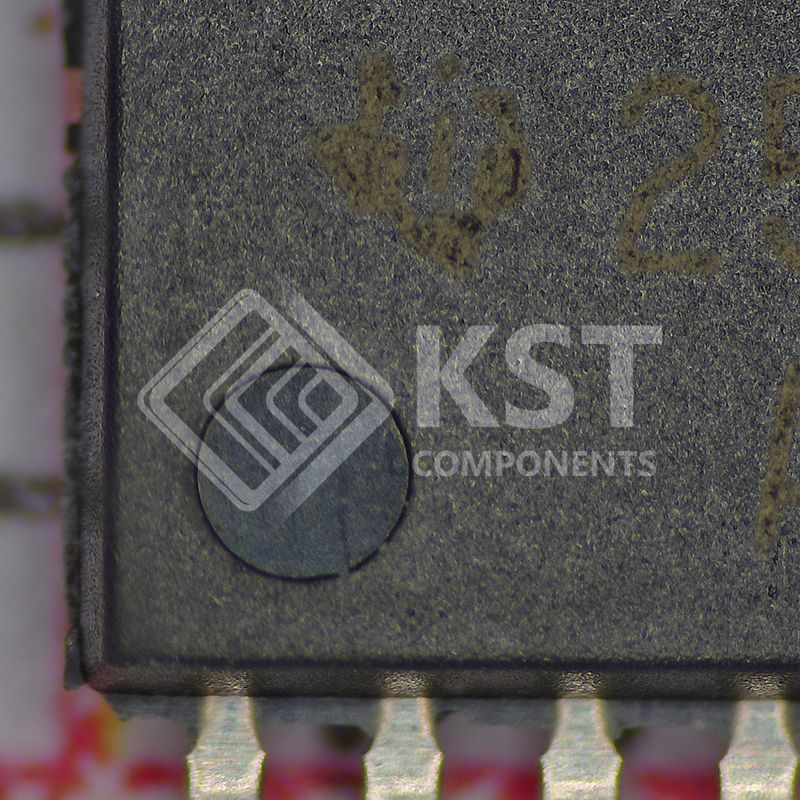

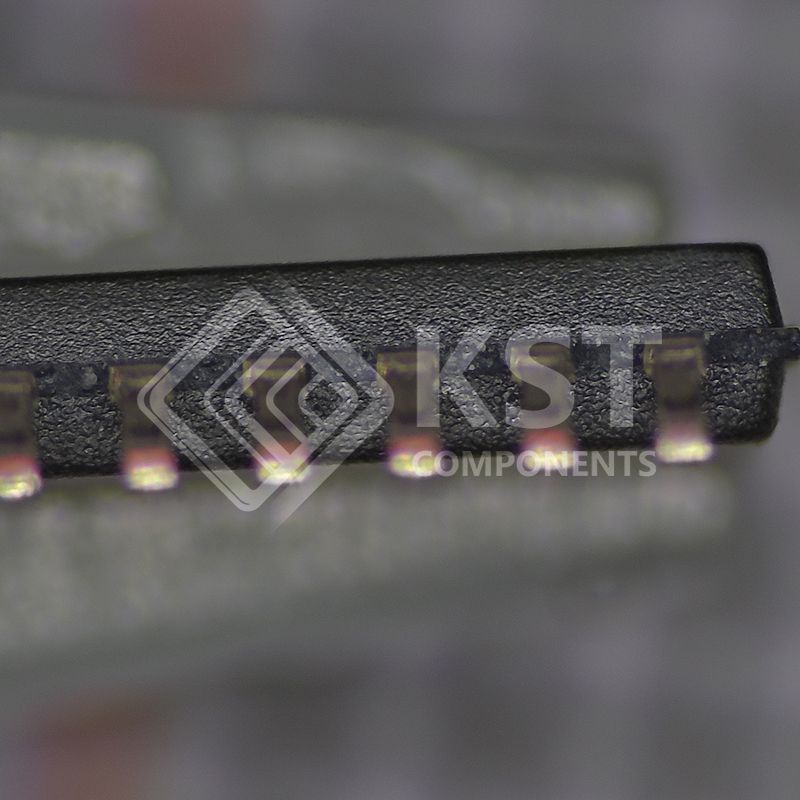

CD4070BPWR
Part Number:
CD4070BPWR
Product Classification:
Accessories - Boots, Seals
Manufacturer:
3PEAK
Description:
IC GATE XOR 4CH 2-INP 14TSSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Gates and Inverters
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
4000B |
|
|
Packaging |

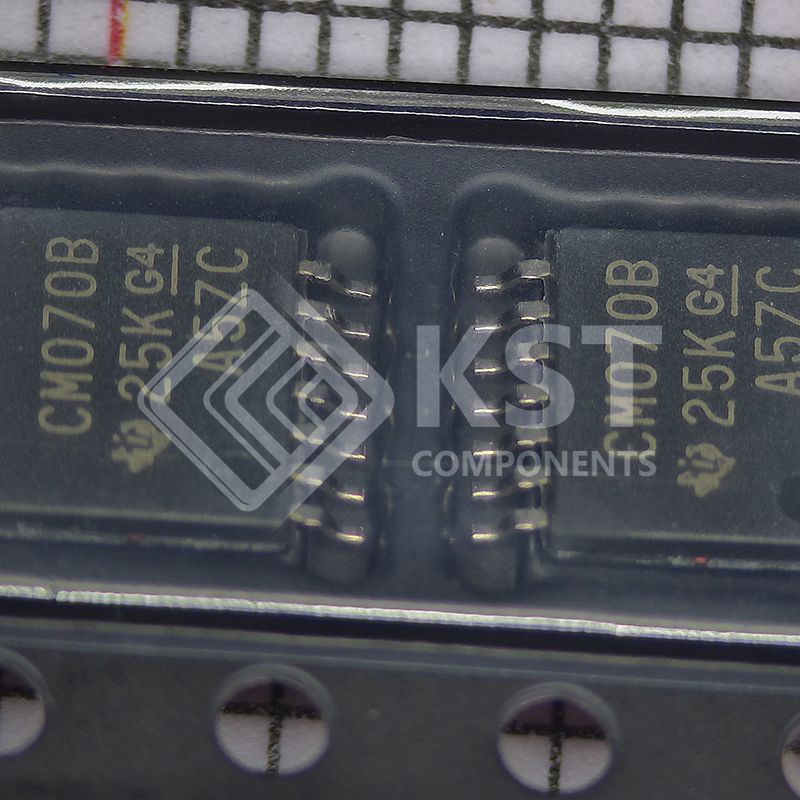

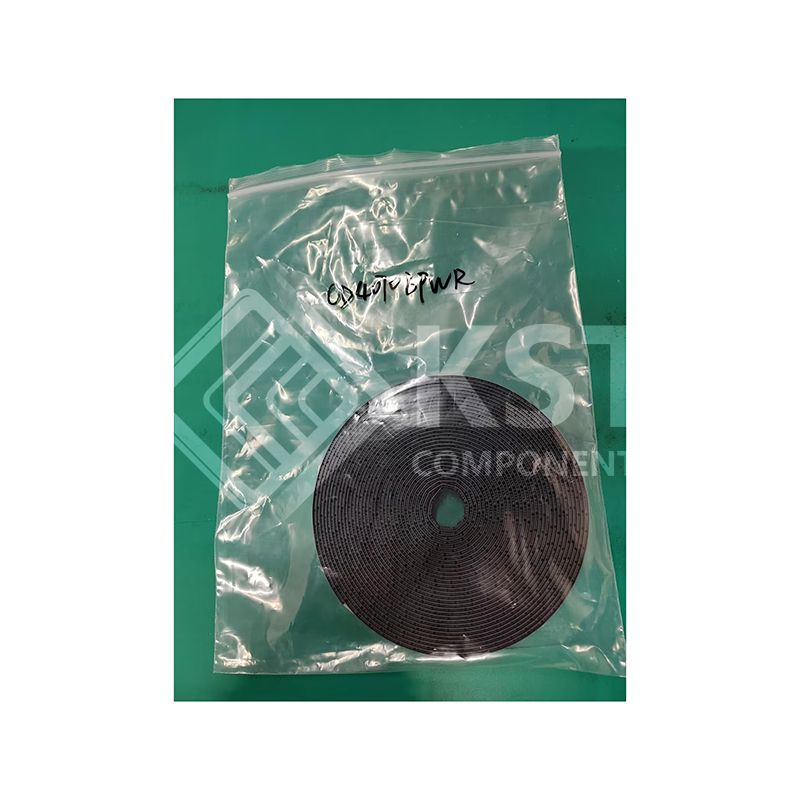

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Logic Type |
XOR (Exclusive OR) |
|
|
Number of Circuits |
4
|
|
|
Number of Inputs |
2
|
|
|
Features |
-
|
|
|
Voltage - Supply |
3V ~ 18V
|
|
|
Current - Quiescent (Max) |
1 µA
|
|
|
Current - Output High, Low |
3.4mA, 3.4mA
|
|
|
Input Logic Level - Low |
1.5V ~ 4V
|
|
|
Input Logic Level - High |
3.5V ~ 11V
|
|
|
Max Propagation Delay @ V, Max CL |
100ns @ 15V, 50pF
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
14-TSSOP
|
|
|
Package / Case |
14-TSSOP (0.173", 4.40mm Width)
|
|
|
Base Product Number |
CD4070 |
