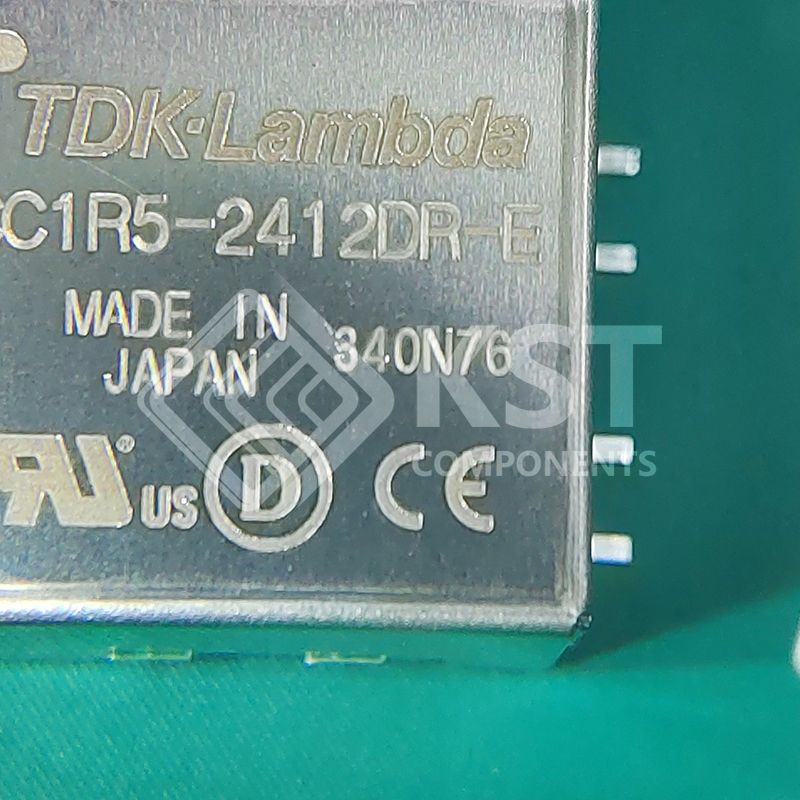

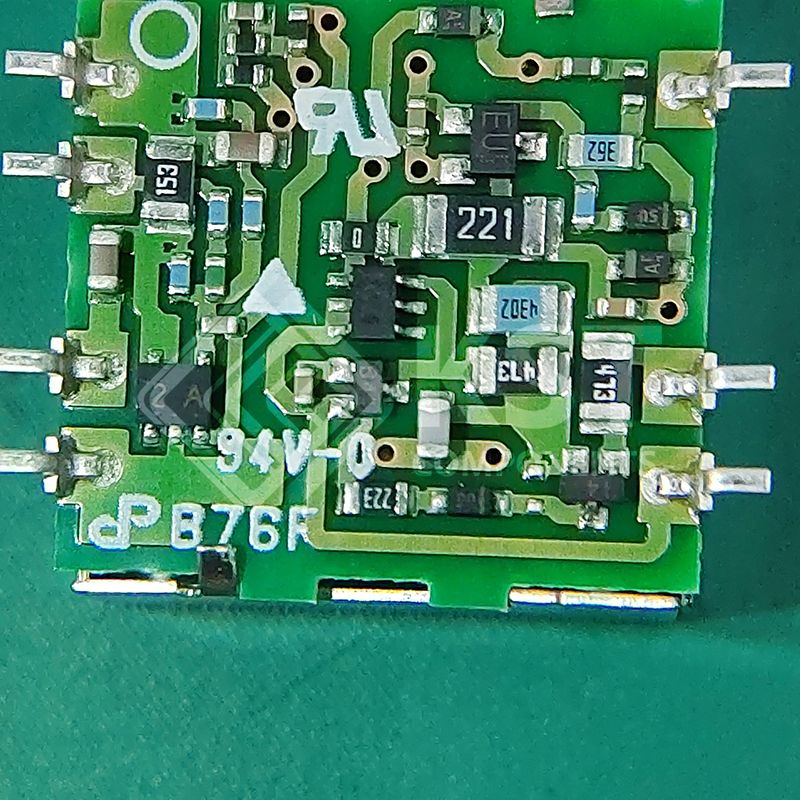

CC1R5-2412DR-E
Part Number:
CC1R5-2412DR-E
Product Classification:
Programmable Display Switches
Manufacturer:
Amphenol Onanon
Description:
DC DC CNVRTR +/-12V TO +/-15V 1W
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Mfr |
TDK-Lambda |
|
|
Series |
CC-E (1.5W) |
|
|

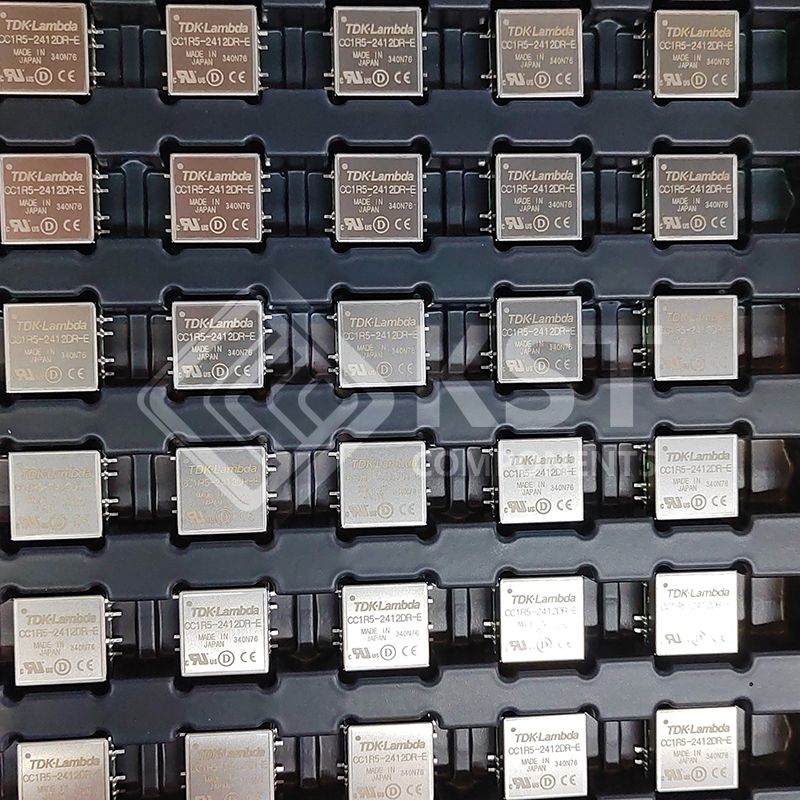

Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Type |
Isolated Module
|
|
|
Number of Outputs |
2
|
|
|
Voltage - Input (Min) |
18V
|
|
|
Voltage - Input (Max) |
36V
|
|
|
Voltage - Output 1 |
12 ~ 15V |
|
|
Voltage - Output 2 |
-12 ~ -15V
|
|
|
Voltage - Output 3 |
-
|
|
|
Voltage - Output 4 |
-
|
|
|
Current - Output (Max) |
60mA, 60mA
|
|
|
Power (Watts) |
1 W
|
|
|
Voltage - Isolation |
500 V
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Efficiency |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
7-SMD Module
|
|
|
Size / Dimension |
0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
|
|
|
Control Features |
Enable, Active Low
|
|
|
Base Product Number |
CC1R5 |
