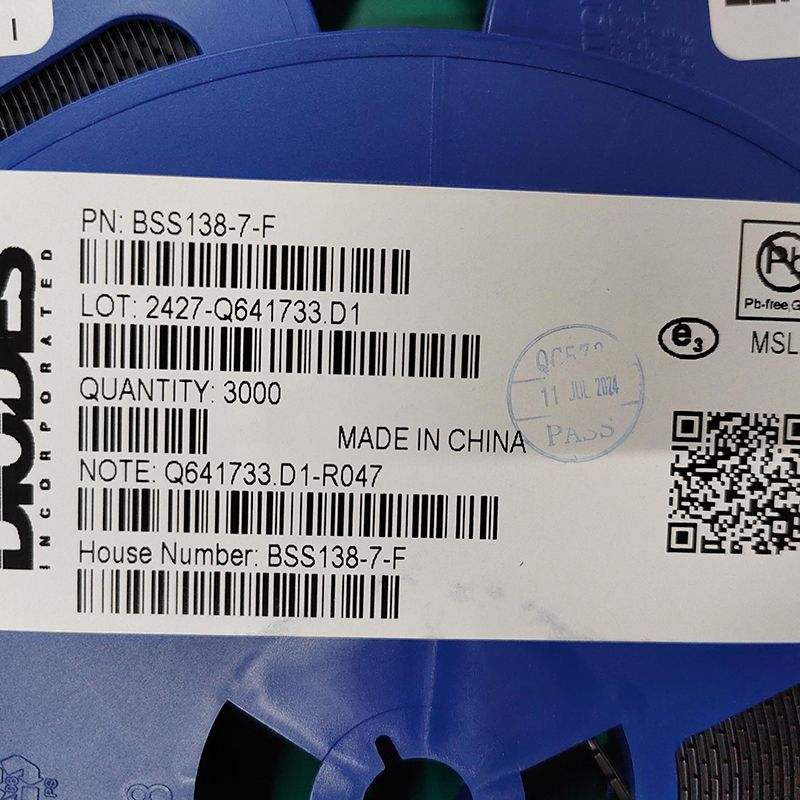

BSS138-7-F
Part Number:
BSS138-7-F
Product Classification:
Solid State Relays (SSR)
Manufacturer:
Accuenergy
Description:
MOSFET N-CH 50V 200MA SOT23-3
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Diodes Incorporated |
|
|
Series |
-
|
|
|

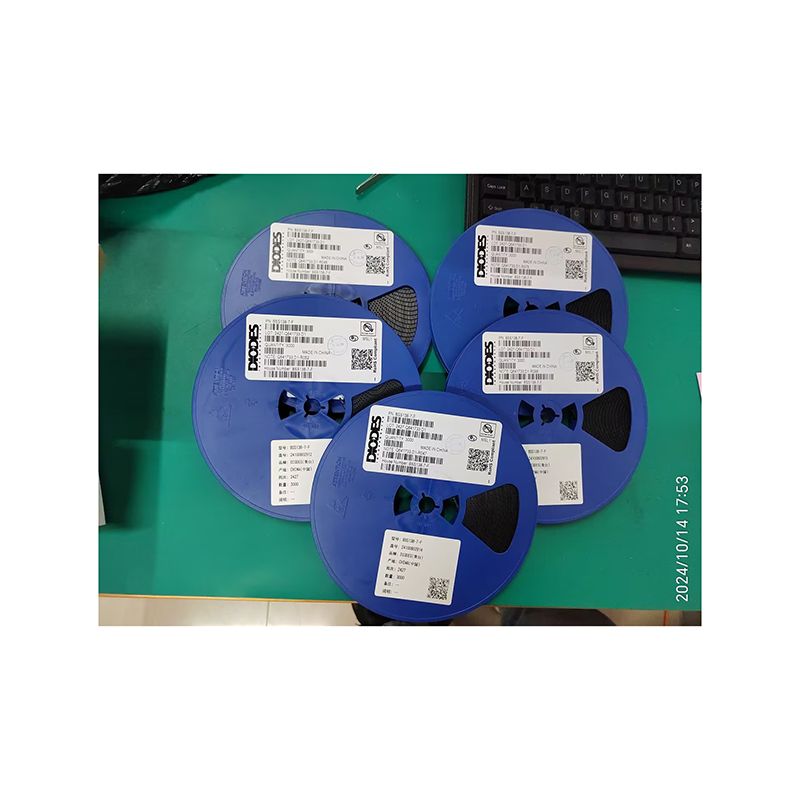

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
50 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
200mA (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
3.5Ohm @ 220mA, 10V
|
|
|
Vgs(th) (Max) @ Id |
1.5V @ 250µA
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
50 pF @ 10 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
300mW (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
SOT-23-3
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
|
Base Product Number |
BSS138 |
