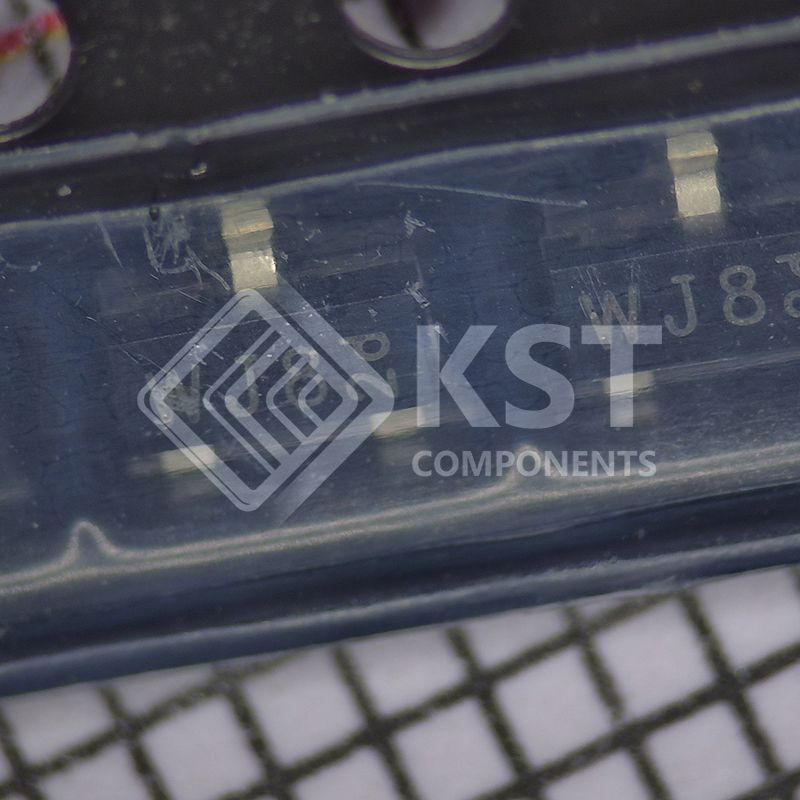

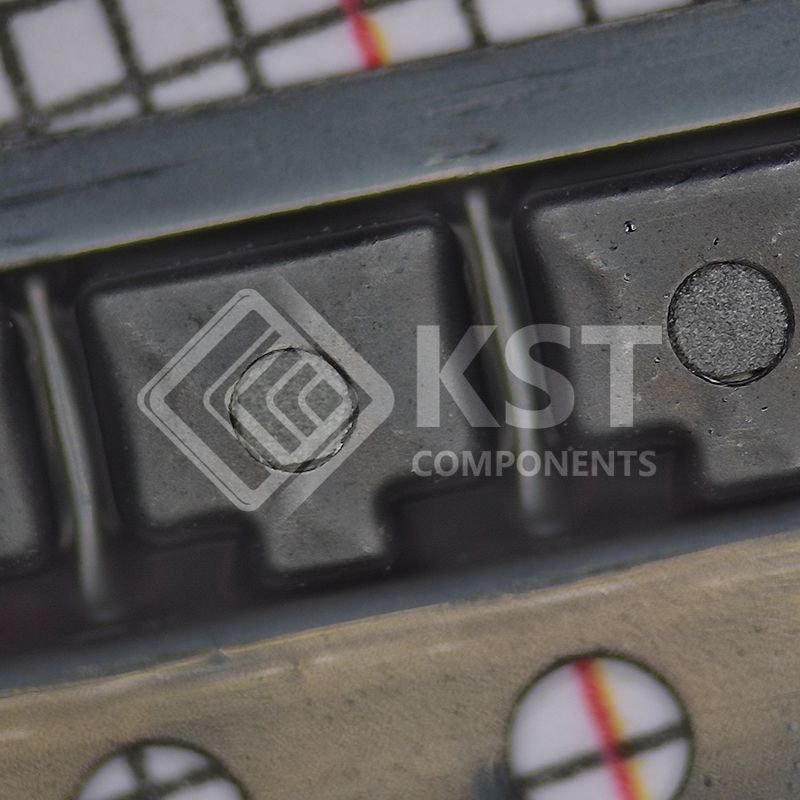

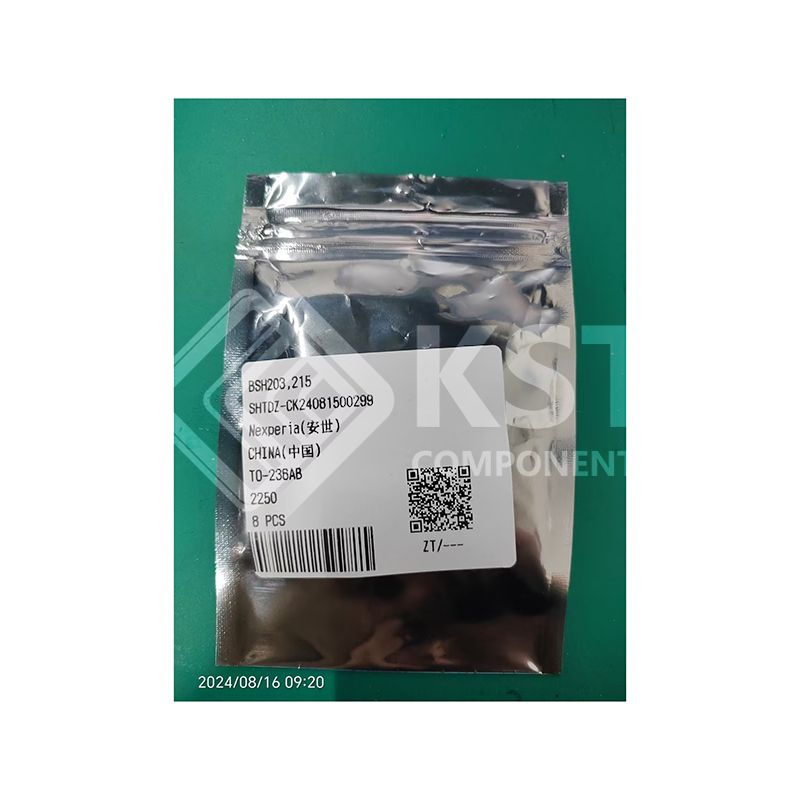

BSH203,215
Part Number:
BSH203,215
Product Classification:
Solid State Relays (SSR)
Manufacturer:
Amphenol Fiber Systems International
Description:
MOSFET P-CH 30V 470MA TO236AB
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Nexperia USA Inc. |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Not For New Designs
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
30 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
470mA (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
1.8V, 4.5V
|
|
|
Rds On (Max) @ Id, Vgs |
900mOhm @ 280mA, 4.5V
|
|
|
Vgs(th) (Max) @ Id |
680mV @ 1mA (Typ)
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
2.2 nC @ 4.5 V
|
|
|
Vgs (Max) |
±8V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
110 pF @ 24 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
417mW (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
TO-236AB
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
|
Base Product Number |
BSH203 |
