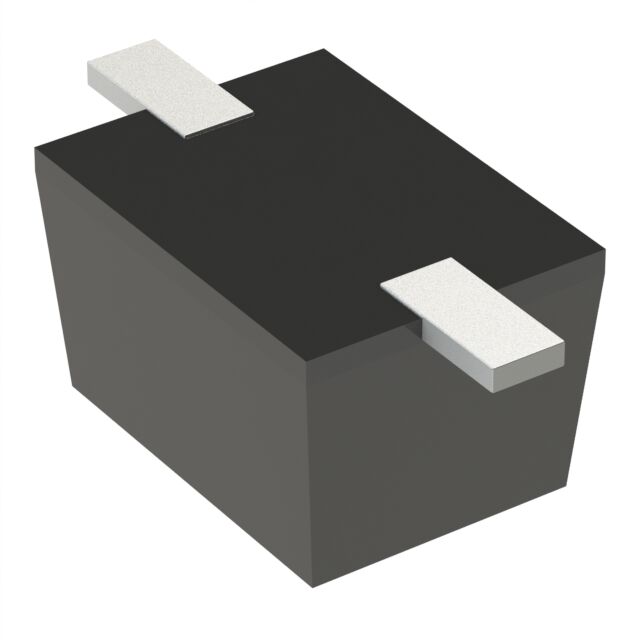

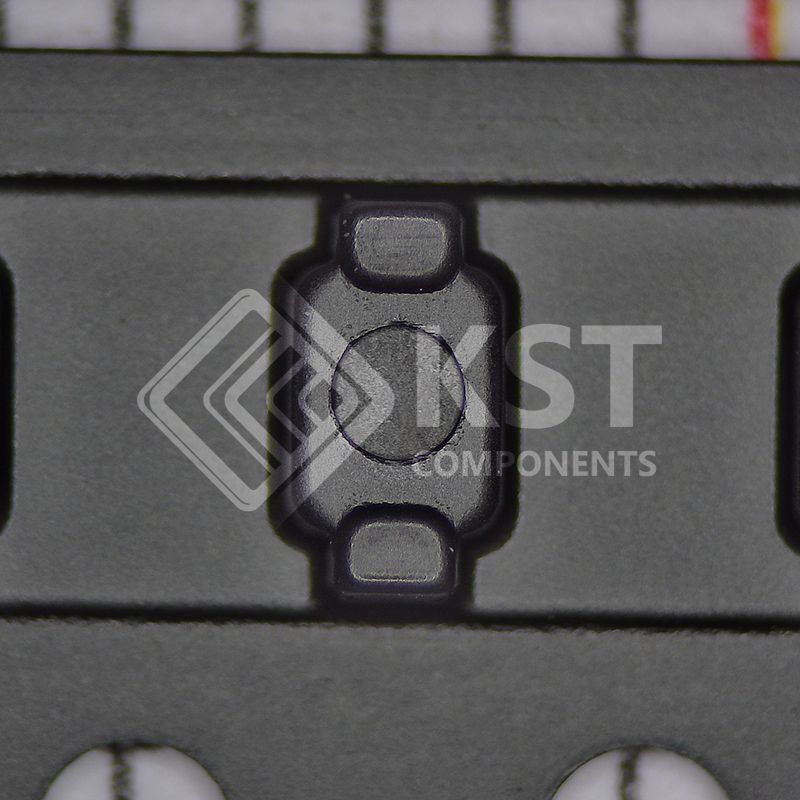

BAV21WS
Part Number:
BAV21WS
Product Classification:
Toggle Switches
Manufacturer:
ARTESYN / Advanced Energy
Description:
DIODE STD 200V 200MA SOD323F
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr |
Diotec Semiconductor |
|
|
Series |
-
|
|
|
Packaging |

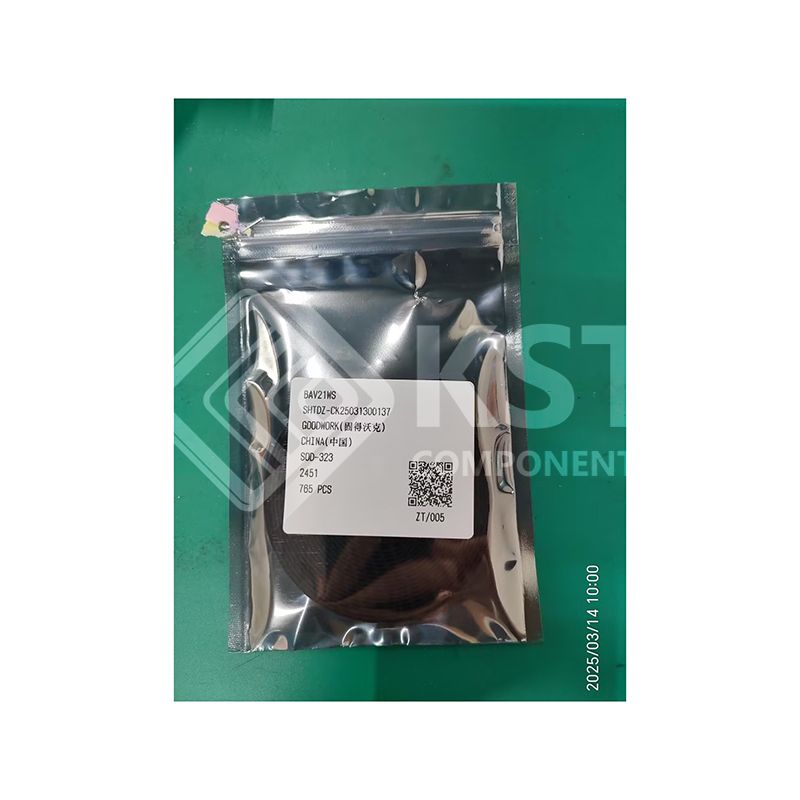

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
Standard |
|
|
Voltage - DC Reverse (Vr) (Max) |
200 V
|
|
|
Current - Average Rectified (Io) |
200mA
|
|
|
Voltage - Forward (Vf) (Max) @ If |
1.25 V @ 200 mA
|
|
|
Speed |
Small Signal =< 200mA (Io), Any Speed
|
|
|
Reverse Recovery Time (trr) |
50 ns
|
|
|
Current - Reverse Leakage @ Vr |
100 nA @ 200 V
|
|
|
Capacitance @ Vr, F |
5pF @ 0V, 1MHz
|
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
SC-90, SOD-323F |
|
|
Supplier Device Package |
SOD-323F
|
|
|
Operating Temperature - Junction |
150°C
|
|
|
Base Product Number |
BAV21 |
