BAT54C,215
Part Number:
BAT54C,215
Product Classification:
Toggle Switches
Manufacturer:
Amphenol Fiber Systems International
Description:
DIODE ARR SCHOTTKY 30V TO-236AB
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Diode Arrays
|
|
|
Manufacturer |
Nexperia USA Inc.
|
|
|
Series |
-
|
|
|
Packaging |

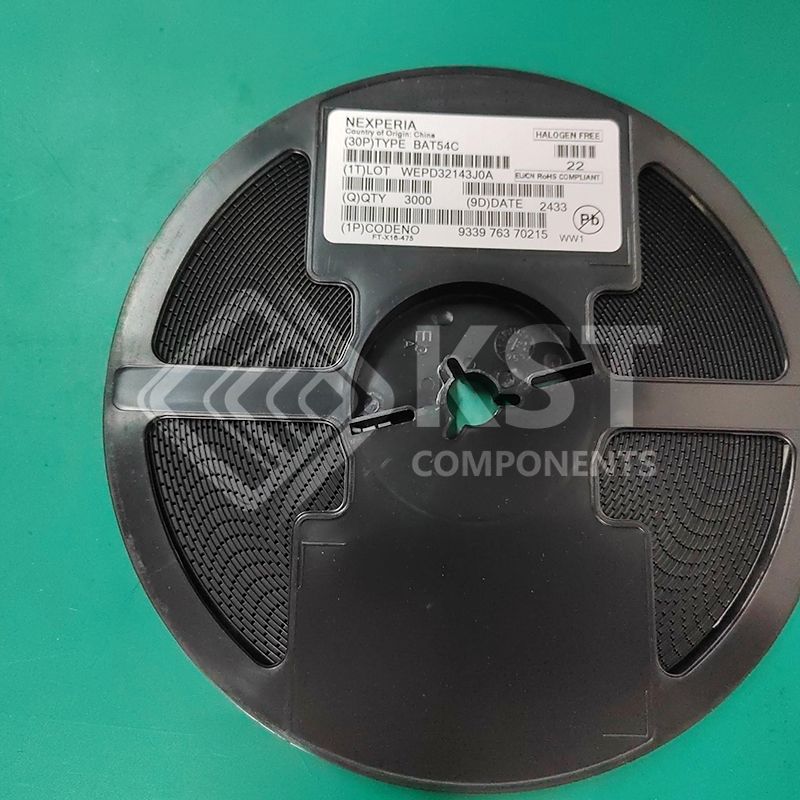

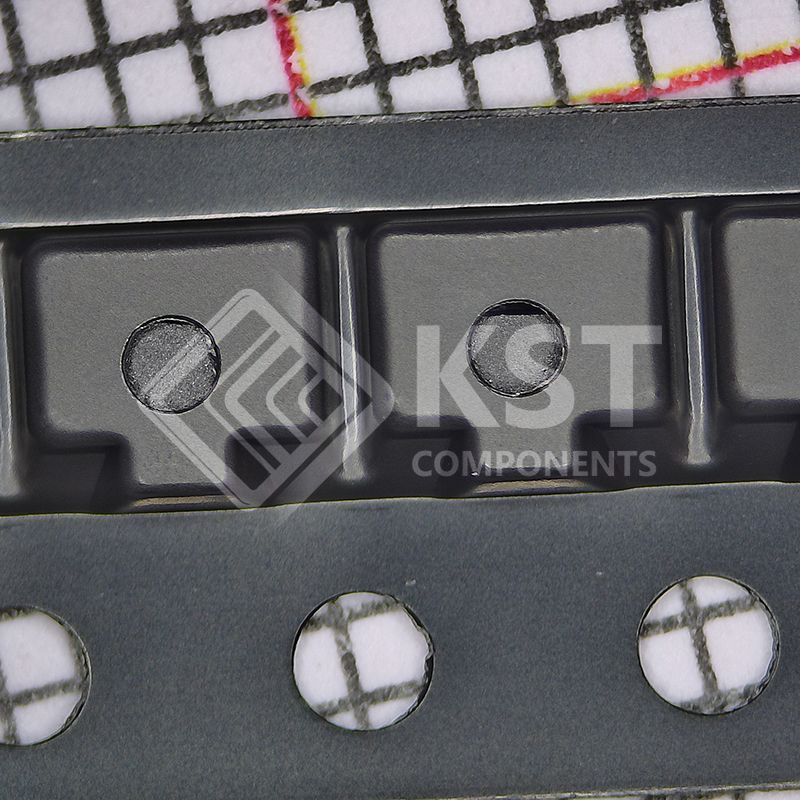

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Diode Configuration |
1 Pair Common Cathode
|
|
|
Technology |
Schottky
|
|
|
Voltage - DC Reverse (Vr) (Max) |
30 V
|
|
|
Current - Average Rectified (Io) (per Diode) |
200mA (DC)
|
|
|
Voltage - Forward (Vf) (Max) @ If |
800 mV @ 100 mA
|
|
|
Speed |
Small Signal =< 200mA (Io), Any Speed
|
|
|
Reverse Recovery Time (trr) |
5 ns
|
|
|
Current - Reverse Leakage @ Vr |
2 µA @ 25 V
|
|
|
Operating Temperature - Junction |
150°C (Max)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q101
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
TO-236AB
|
|
|
Base Product Number |
BAT54 |
