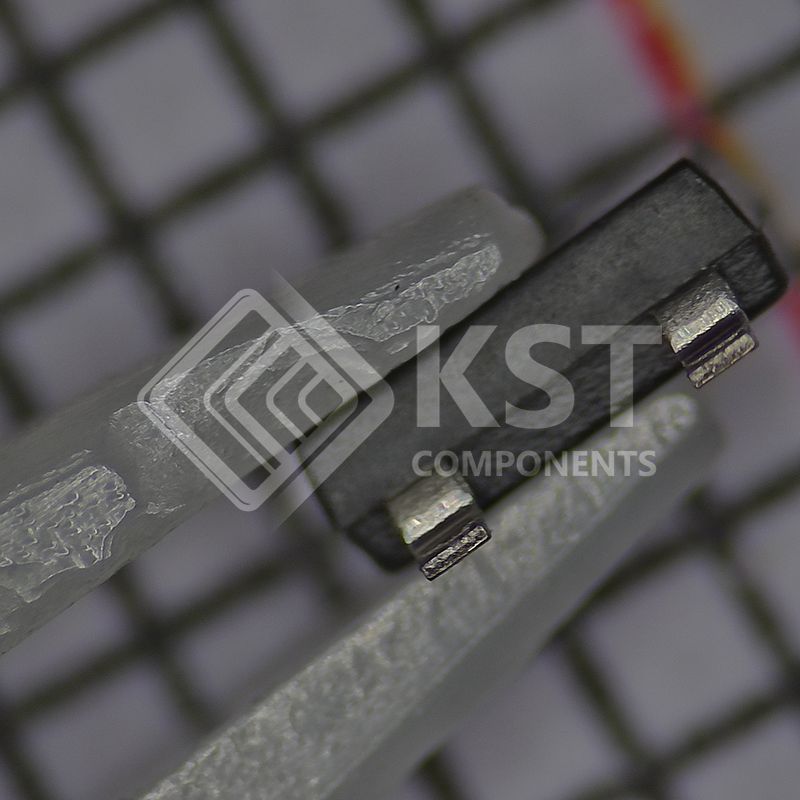

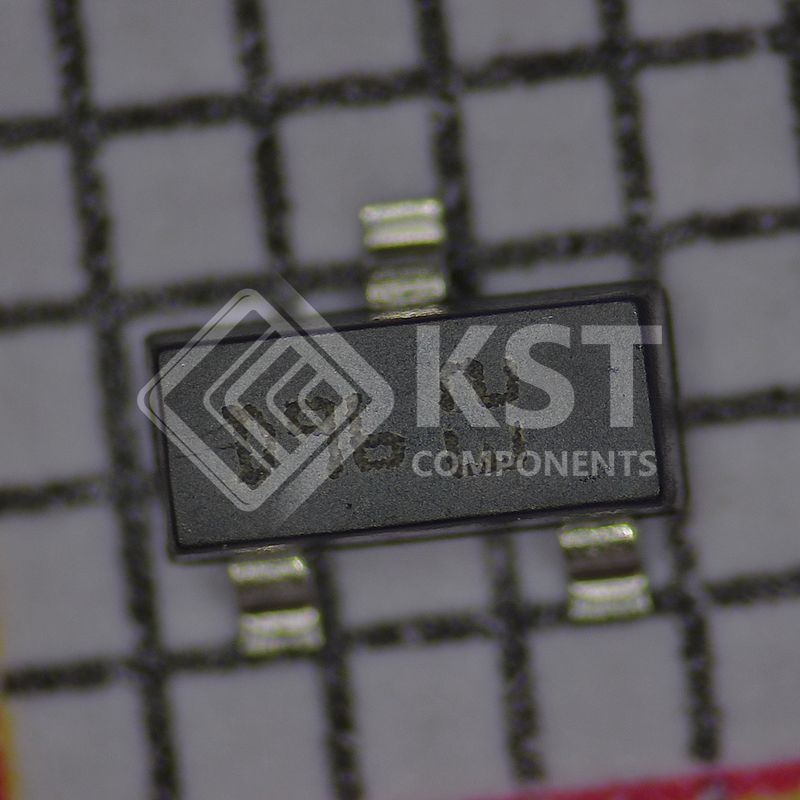

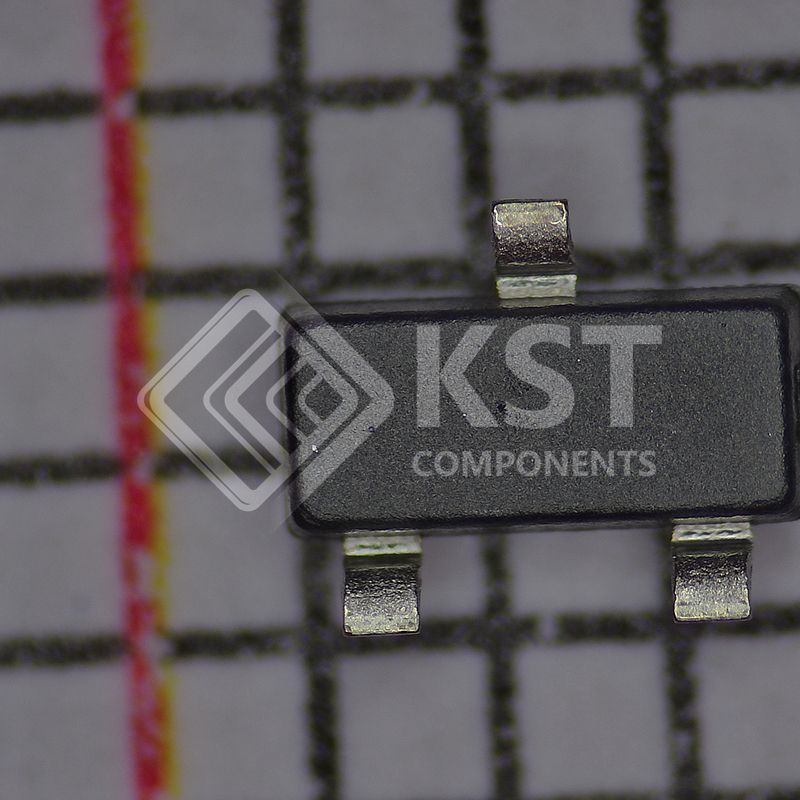

BAS70-04FILM
Part Number:
BAS70-04FILM
Product Classification:
Specialty Transformers
Manufacturer:
3M
Description:
DIODE ARR SCHOT 70V 70MA SOT23-3
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Diode Arrays
|
|
|
Manufacturer |
STMicroelectronics
|
|
|
Series |
-
|
|
|
Packaging |

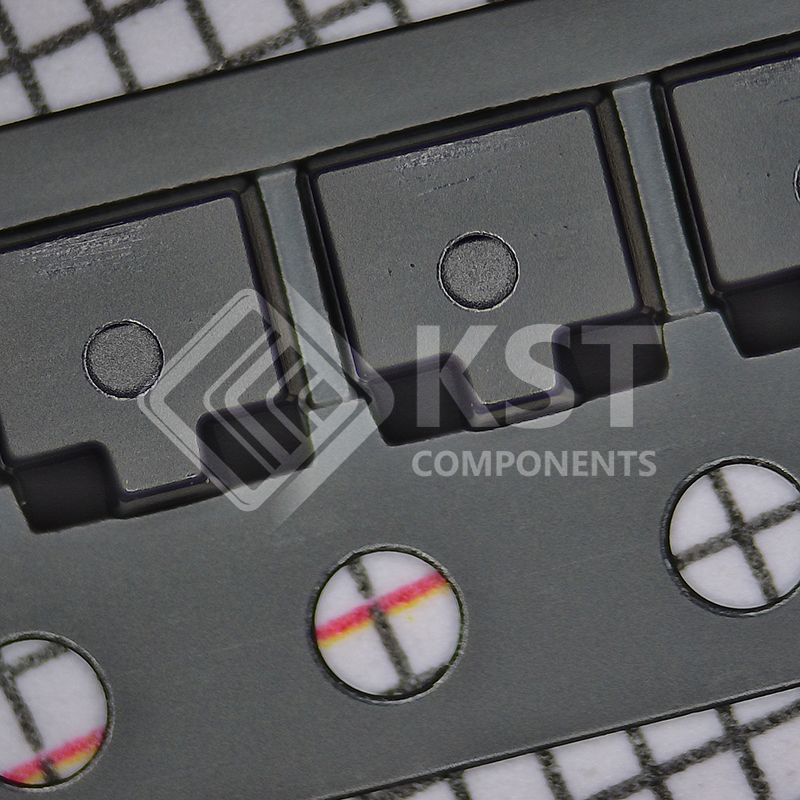

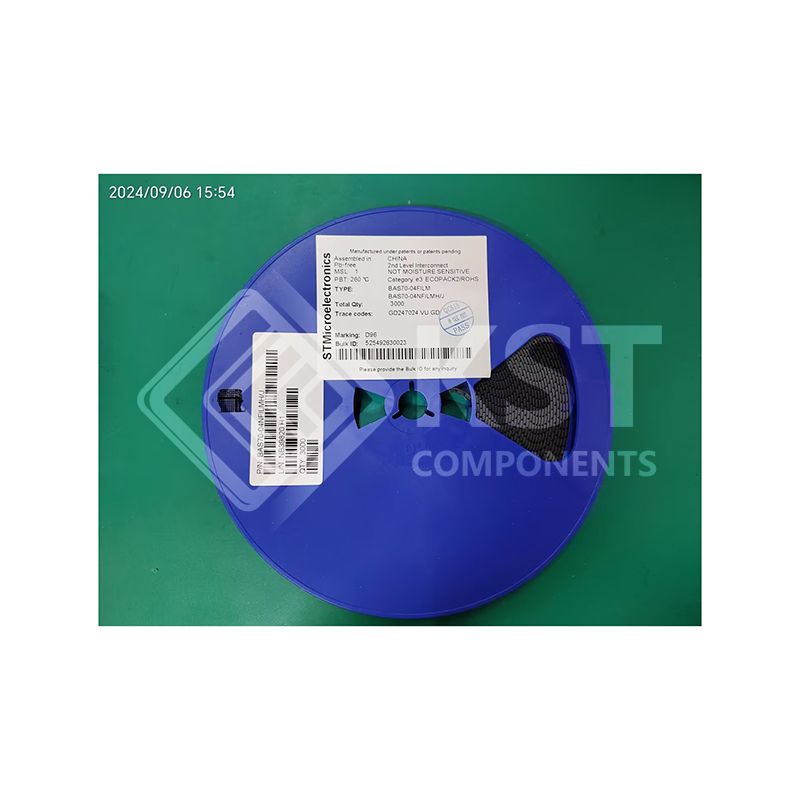

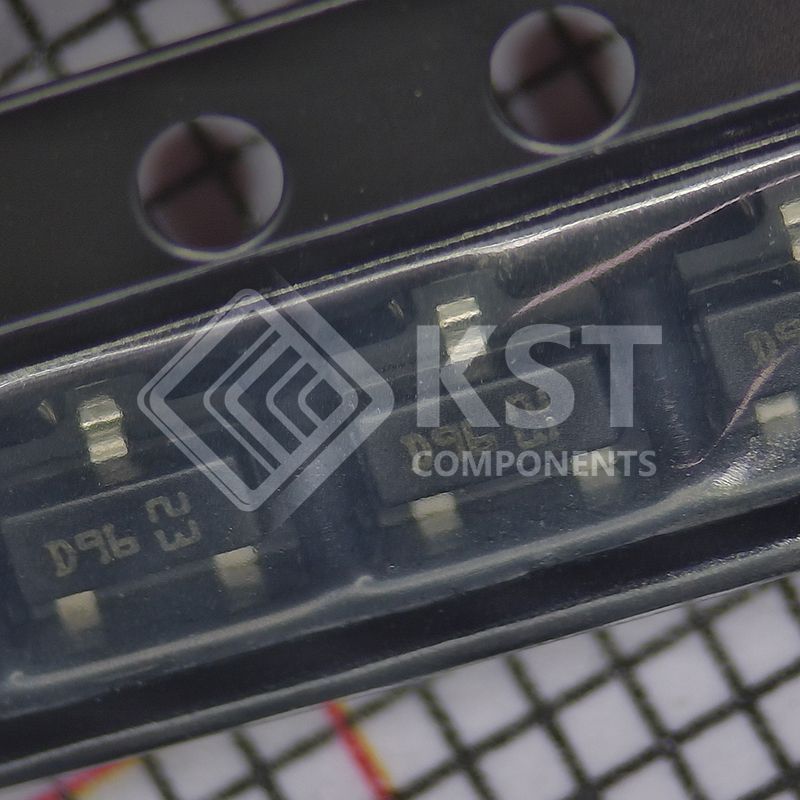

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Diode Configuration |
1 Pair Series Connection
|
|
|
Technology |
Schottky
|
|
|
Voltage - DC Reverse (Vr) (Max) |
70 V
|
|
|
Current - Average Rectified (Io) (per Diode) |
70mA (DC)
|
|
|
Voltage - Forward (Vf) (Max) @ If |
1 V @ 15 mA
|
|
|
Speed |
Small Signal =< 200mA (Io), Any Speed
|
|
|
Current - Reverse Leakage @ Vr |
10 µA @ 70 V
|
|
|
Operating Temperature - Junction |
150°C (Max)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
SOT-23-3
|
|
|
Base Product Number |
BAS70 |
