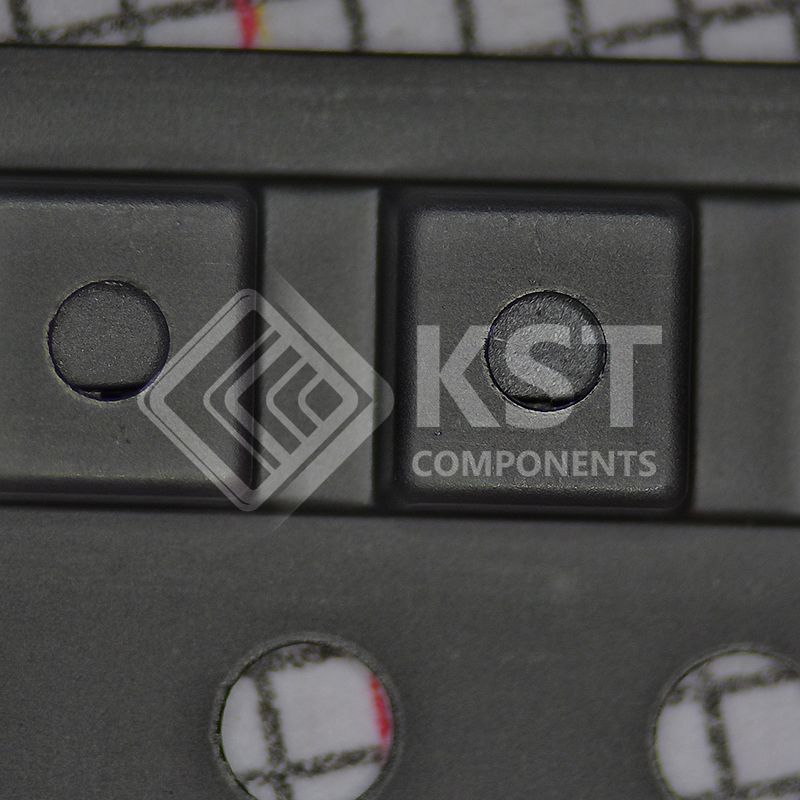

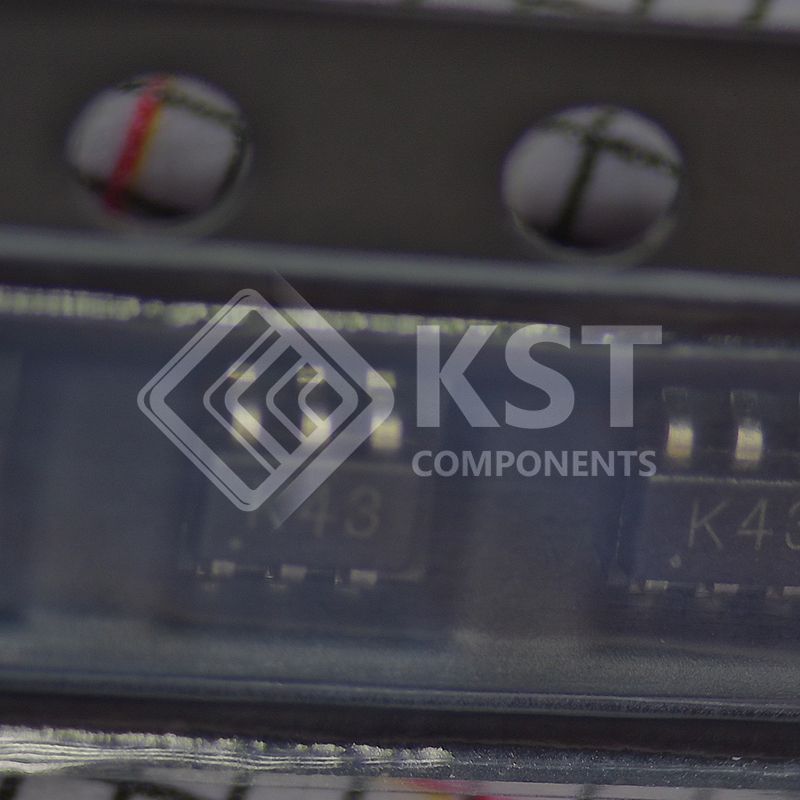

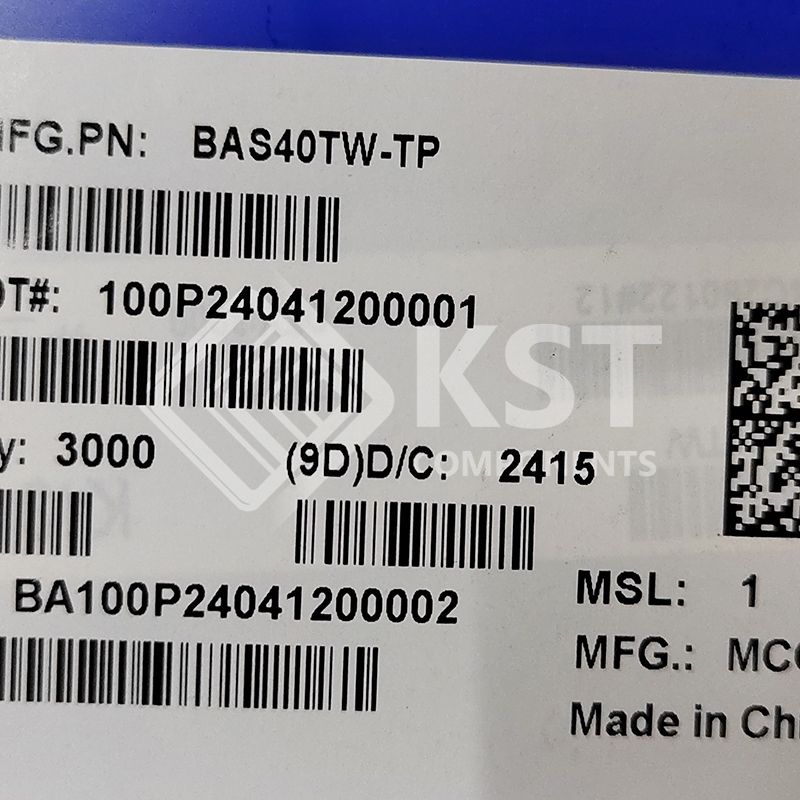

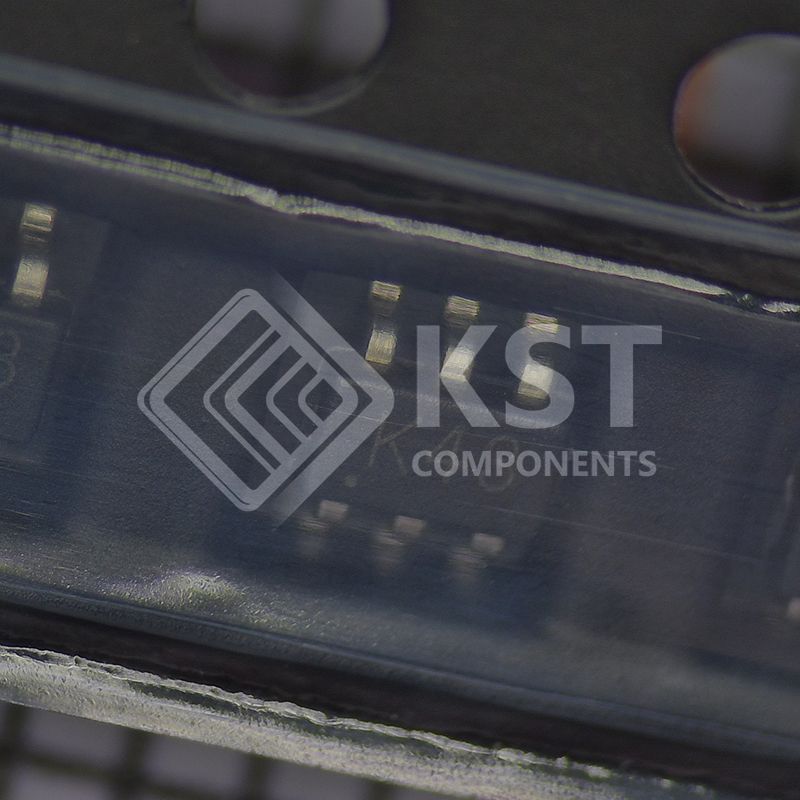

BAS40TW-TP
Part Number:
BAS40TW-TP
Product Classification:
Specialty Transformers
Manufacturer:
BusBoard Prototype Systems
Description:
DIODE ARR SCHOT 40V 200MA SOT363
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Diode Arrays
|
|
|
Manufacturer |
MCC (Micro Commercial Components)
|
|
|
Series |
-
|
|
|
Packaging |

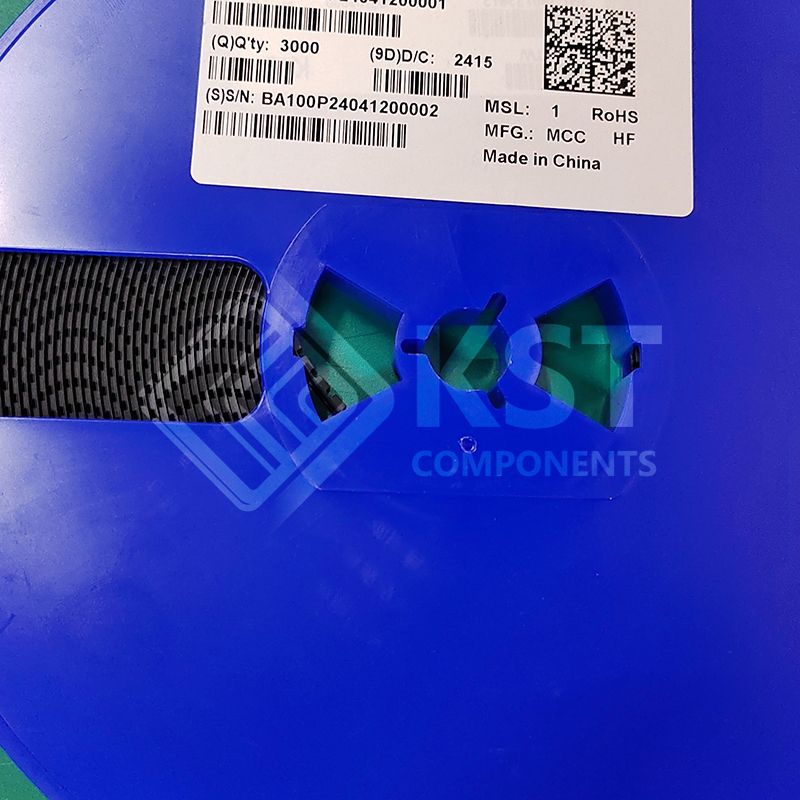

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Diode Configuration |
3 Independent
|
|
|
Technology |
Schottky
|
|
|
Voltage - DC Reverse (Vr) (Max) |
40 V
|
|
|
Current - Average Rectified (Io) (per Diode) |
200mA
|
|
|
Voltage - Forward (Vf) (Max) @ If |
1 V @ 40 mA
|
|
|
Speed |
Small Signal =< 200mA (Io), Any Speed
|
|
|
Reverse Recovery Time (trr) |
5 ns
|
|
|
Current - Reverse Leakage @ Vr |
200 nA @ 30 V
|
|
|
Operating Temperature - Junction |
-55°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
6-TSSOP, SC-88, SOT-363
|
|
|
Supplier Device Package |
SOT-363
|
|
|
Base Product Number |
BAS40 |
