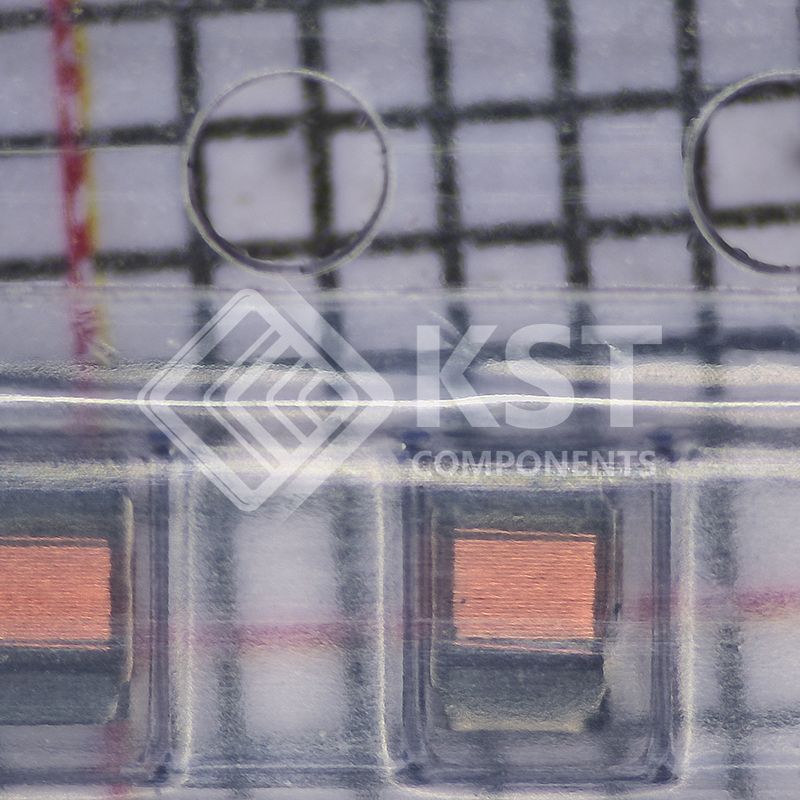

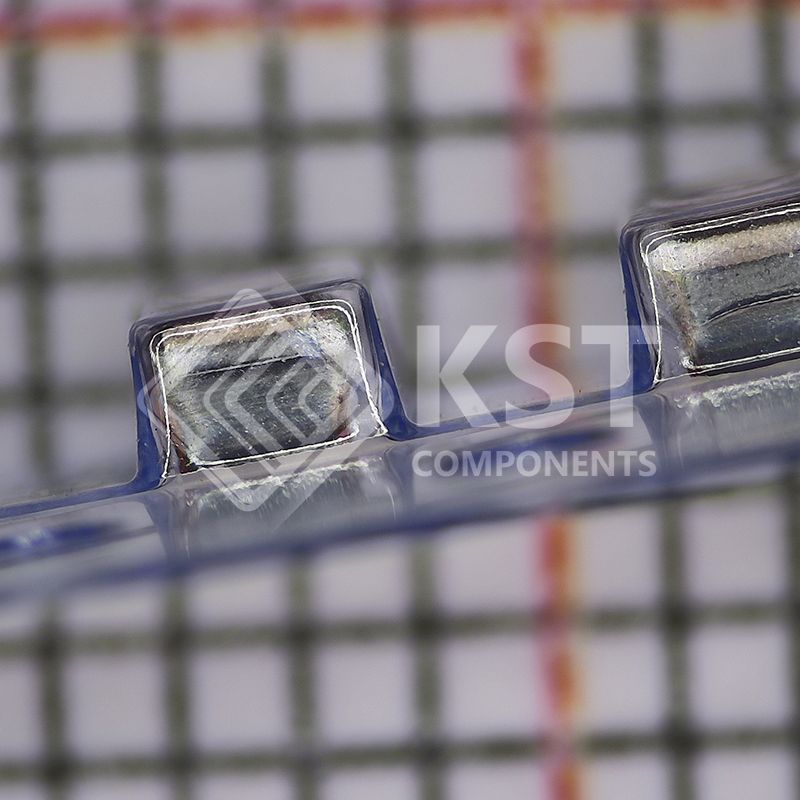

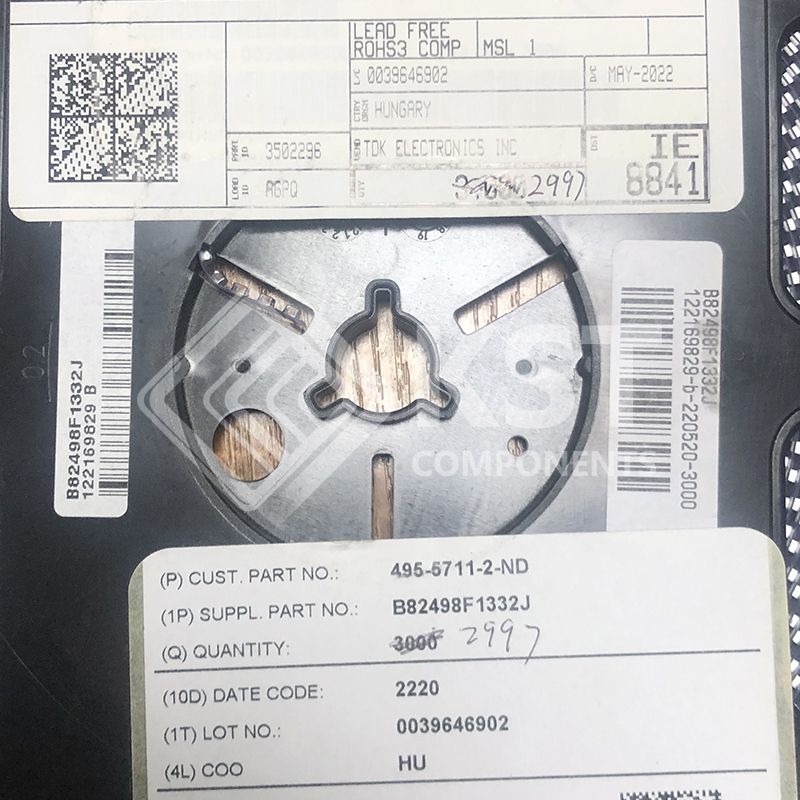

B82498F1332J000
Part Number:
B82498F1332J000
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Arcotronics (KEMET)
Description:
FIXED IND 3.3UH 100MA 3.3OHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
EPCOS - TDK Electronics |
|
|
Series |
SIMID |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
3.3 µH
|
|
|
Tolerance |
±5%
|
|
|
Current Rating (Amps) |
100 mA |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
3.3Ohm Max
|
|
|
Q @ Freq |
20 @ 7.96MHz
|
|
|
Frequency - Self Resonant |
250MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
7.96 MHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
0805 (2012 Metric)
|
|
|
Size / Dimension |
0.091" L x 0.067" W (2.30mm x 1.70mm)
|
|
|
Height - Seated (Max) |
0.055" (1.40mm)
|
