B82442T1334K000
Part Number:
B82442T1334K000
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Arcotronics (KEMET)
Description:
330 µH Unshielded Drum Core, Wirewound Inductor 280 mA 3.29Ohm Max 2-SMD, J-Lead
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
| Mfr | EPCOS - TDK Electronics |
| Series | SIMID |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 280 mA |
| Current - Saturation (Isat) | 550mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.29Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 3.4MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |

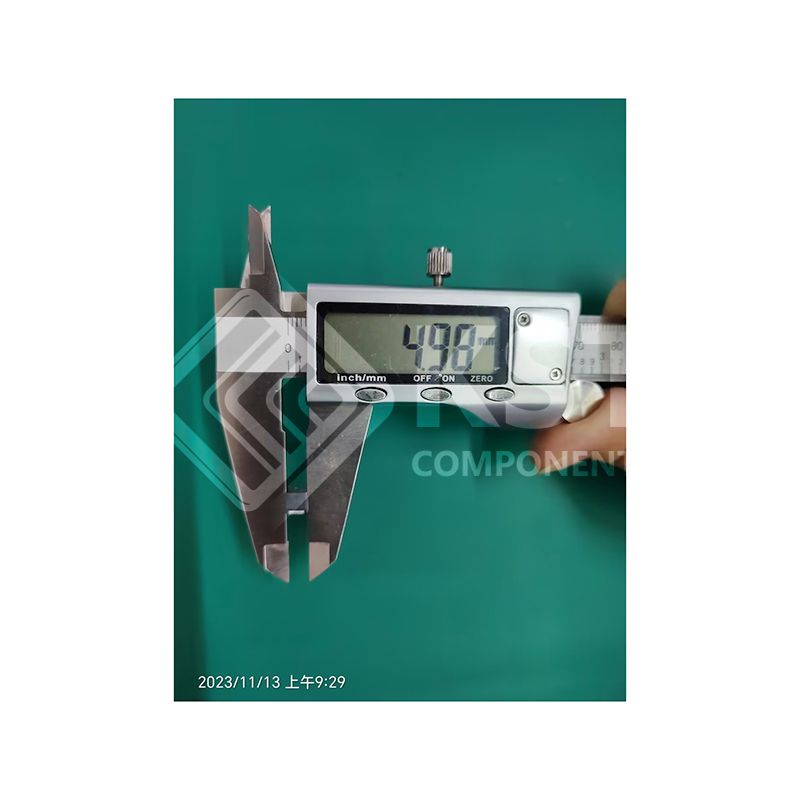

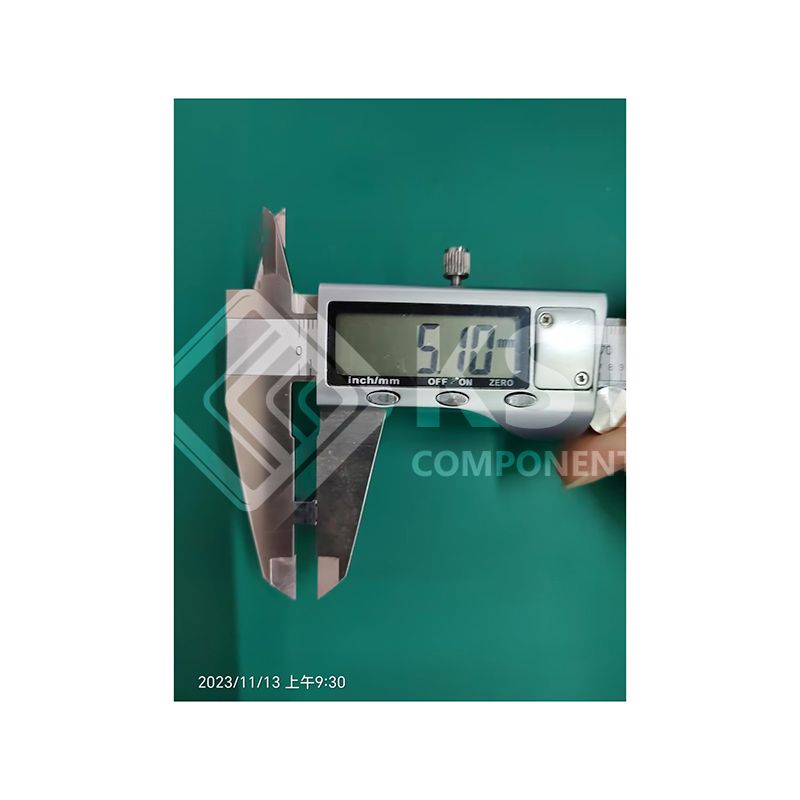

| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
