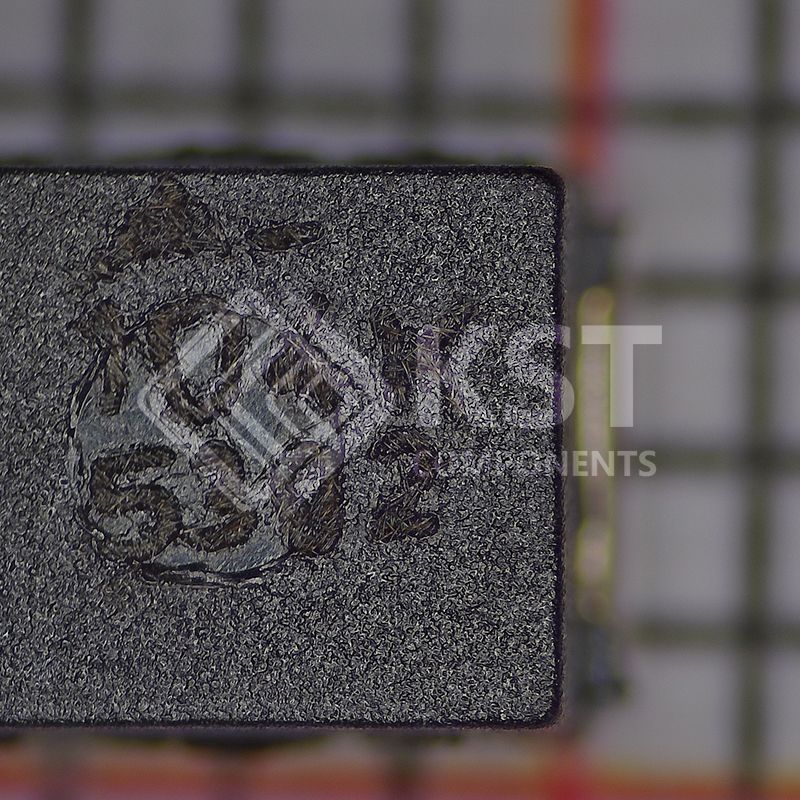

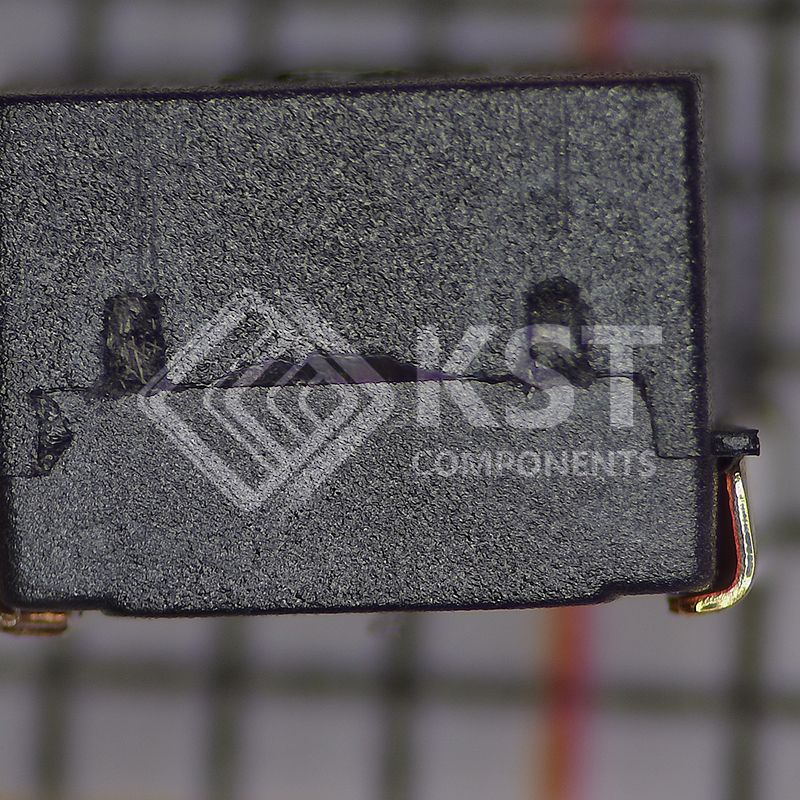

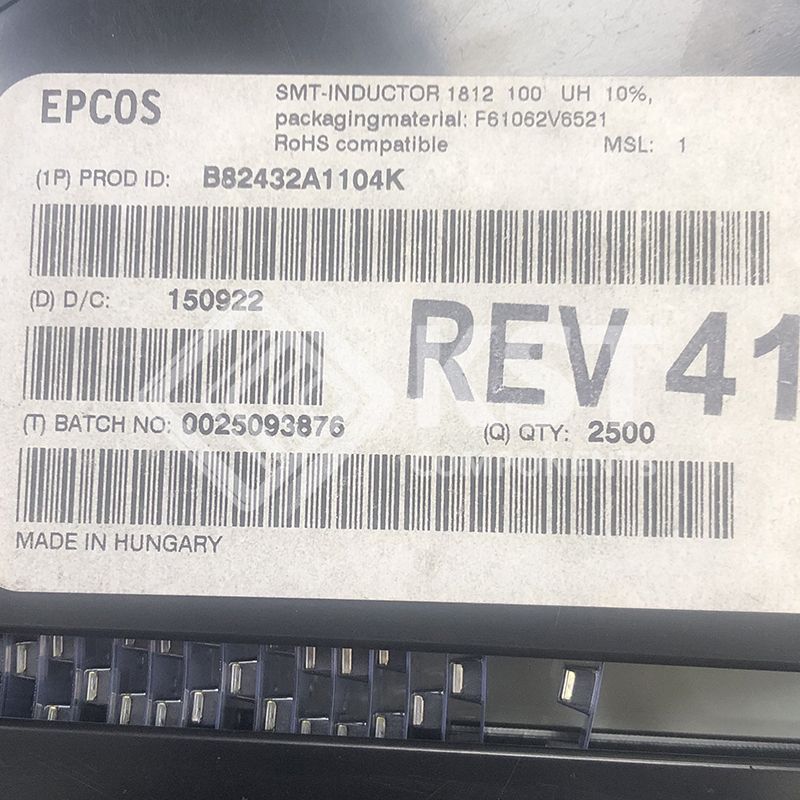

B82432A1104K000
Part Number:
B82432A1104K000
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Arcotronics (KEMET)
Description:
FIXED IND 100UH 145MA 4.7OHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
EPCOS - TDK Electronics |
|
|
Series |
SIMID |
|
|

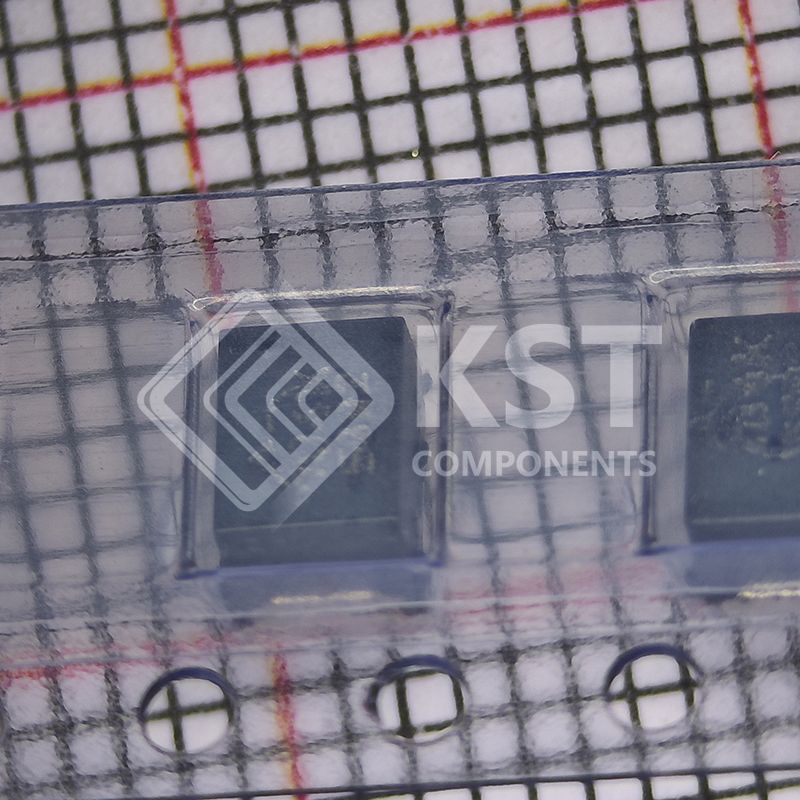

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Obsolete
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
100 µH
|
|
|
Tolerance |
±10%
|
|
|
Current Rating (Amps) |
145 mA |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
4.7Ohm Max
|
|
|
Q @ Freq |
40 @ 2.52MHz
|
|
|
Frequency - Self Resonant |
6.5MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
2-SMD, J-Lead
|
|
|
Supplier Device Package |
1812 (4532 Metric)
|
|
|
Size / Dimension |
0.177" L x 0.126" W (4.50mm x 3.20mm)
|
|
|
Height - Seated (Max) |
0.126" (3.20mm)
|
