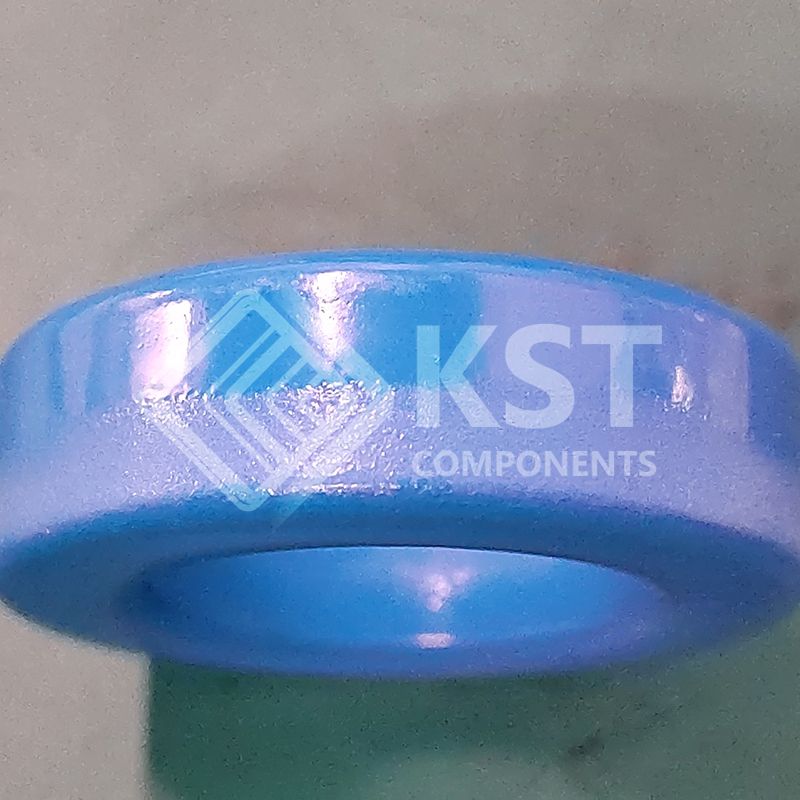

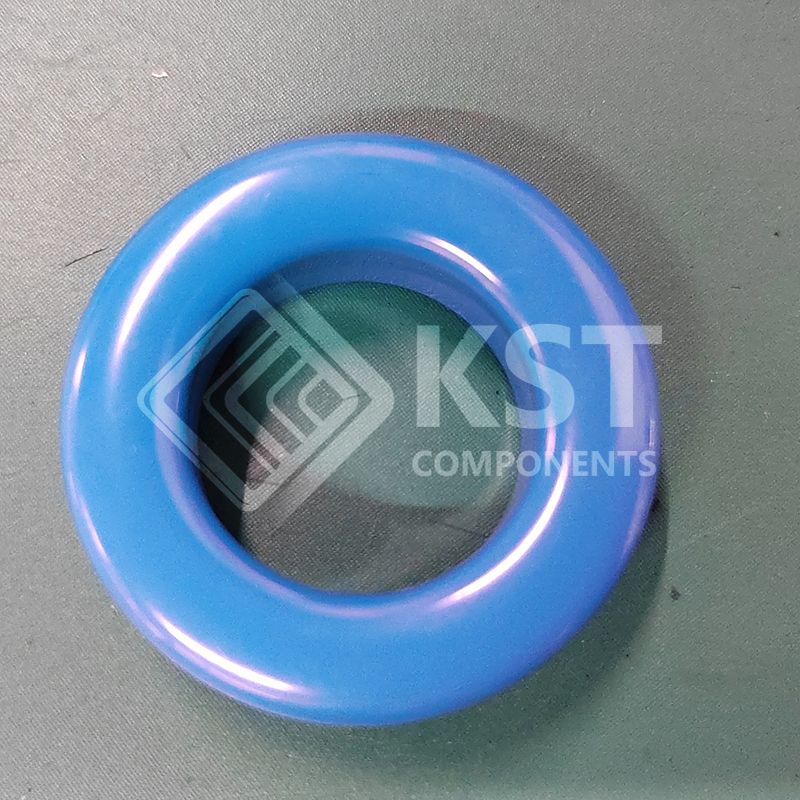

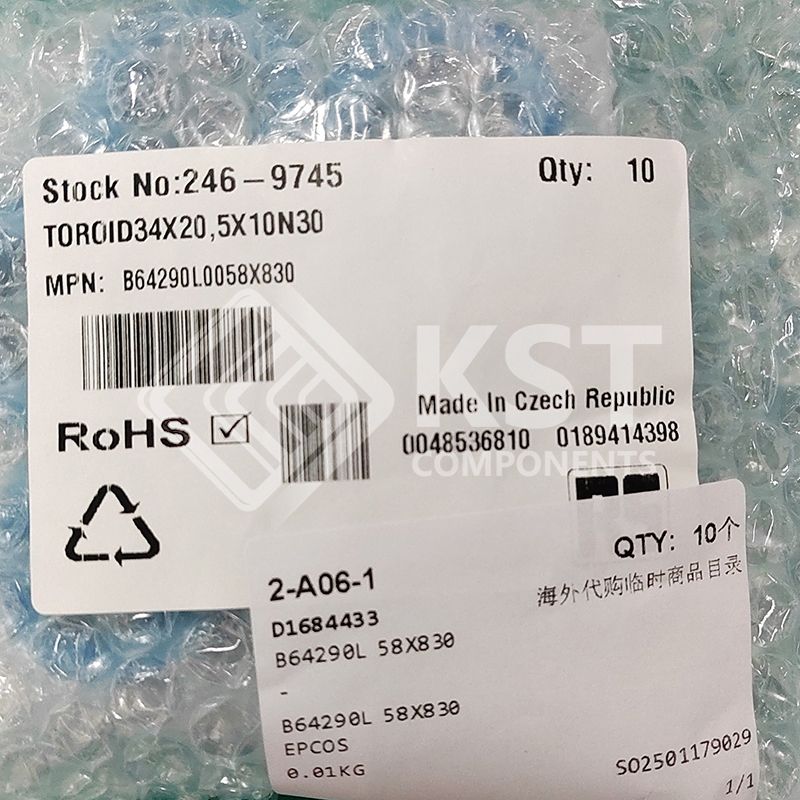

B64290L0058X830
Part Number:
B64290L0058X830
Product Classification:
Flashlights
Manufacturer:
Arcotronics (KEMET)
Description:
FERRITE CORE TOROID 4.36UH N30
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Magnetics - Transformer, Inductor Components
Ferrite Cores
|
|
|
Manufacturer |
EPCOS - TDK Electronics
|
|
|
Series |
TX34/20.5/10 |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Core Type |
Toroid
|
|
|
Supplier Device Package |
-
|
|
|
Material |
N30
|
|
|
Diameter |
1.397" (35.50mm)
|
|
|
Inductance Factor (Al) |
4.36 µH
|
|
|
Tolerance |
±25%
|
|
|
Gap |
Ungapped
|
|
|
Initial Permeability (µi) |
4300
|
|
|
Core Factor (ΣI/A) mm⁻¹ |
1.24
|
|
|
Effective Length (le) mm |
82.06
|
|
|
Effective Area (Ae) mm² |
66.08
|
|
|
Effective Magnetic Volume (Ve) mm³ |
5423.0
|
|
|
Finish |
Epoxy
|
|
|
Height |
0.437" (11.10mm)
|
|
|
Length |
-
|
|
|
Width |
-
|
