AXE530127D
Part Number:
AXE530127D
Product Classification:
External/Internal Power Supply Accessories
Manufacturer:
5G Hub
Description:
Conn Board to Board SKT 30 POS 0.4mm Solder ST Top Entry SMD Reel
Packaging:
-
ROHS Status:
No
Currency:
USD
| Item | Specifications |
|---|---|
| Product Number | AXE530127D |
| Part Number | AXE530127D |
| Connector Type | BOARD-TO-FPC |
| Piece Type | 2 Pieces type (Socket) |
| Socket/ Header | Socket |
| Applications | Smartphones, Laptops, Mobile devices |
| Terminal pitch (mm) | 0.4 |
| Number of pins | 30 |
| Mated height (mm) | 0.8mm |

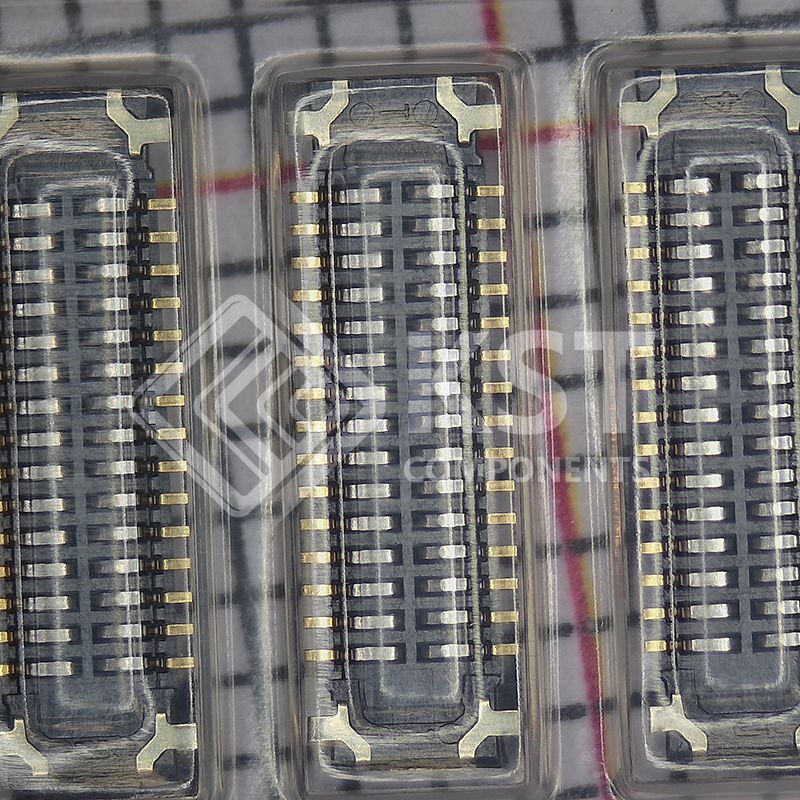

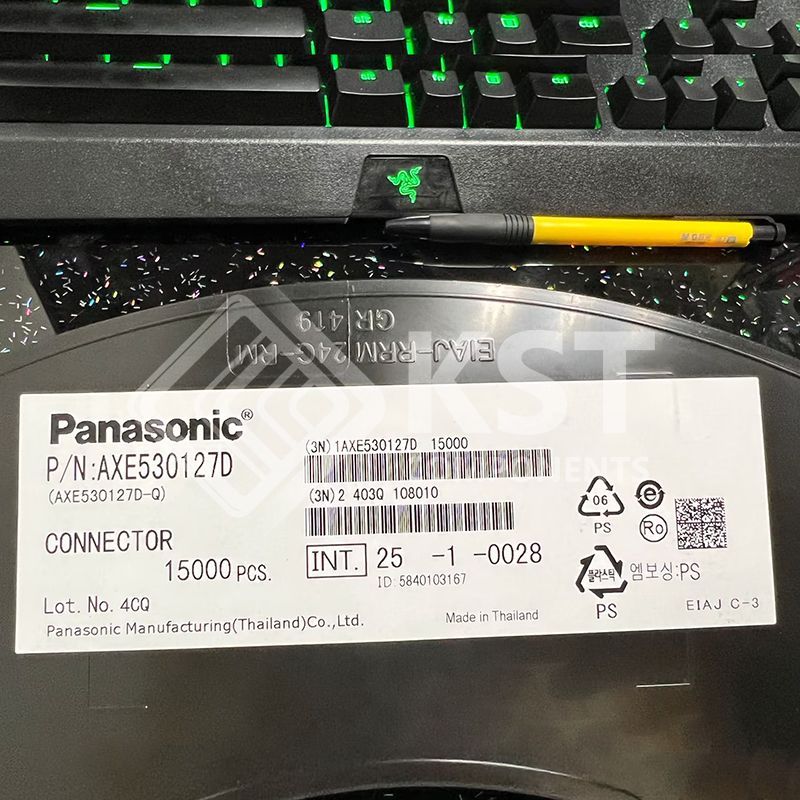

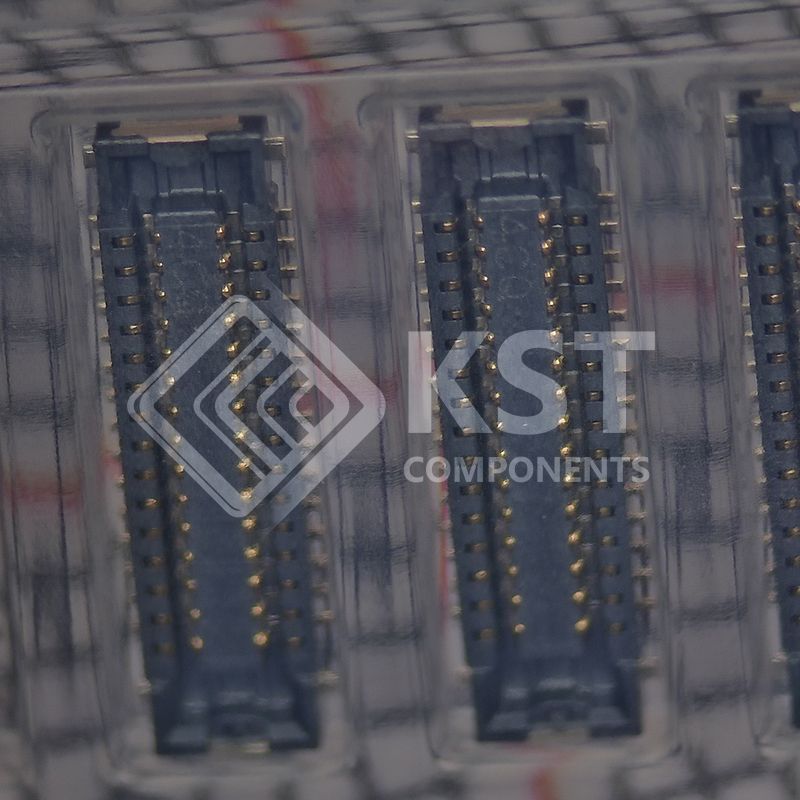

| Packing style | EMBOSSED TAPE AND PLASTIC REEL |
| Package | Embossed packaging (4 mm pitch) |
| Packing Inner carton | 15,000pieces (1reel) |
| Packing Outer carton | 30,000 pieces |
| Soldering terminals | with |
| Positioning bosses | without |
| Body length (L mm) | 8.50 |
| Body Height (H mm) | 0.77 |
| Short width | 2.50 |
| Recommended PC board pattern Width (mm) | 2.90 |
| Rated current | 0.3A/pin contact (Max. 5A at total pin contacts) |
| Dielectric strength | 150V AC for 1min. |
| Insulation resistance (Min.MΩ)(Initial) | 1000 |
| Contact resistance (Max.mΩ) | 90 |
| Insertion and removal life (times) | 30 |
| Molded portion material | LCP resin (UL94V-0) |
| Contact and Post Material | Copper alloy |
| Surface treatment material | Base: Ni plating Surface: Au plating |
