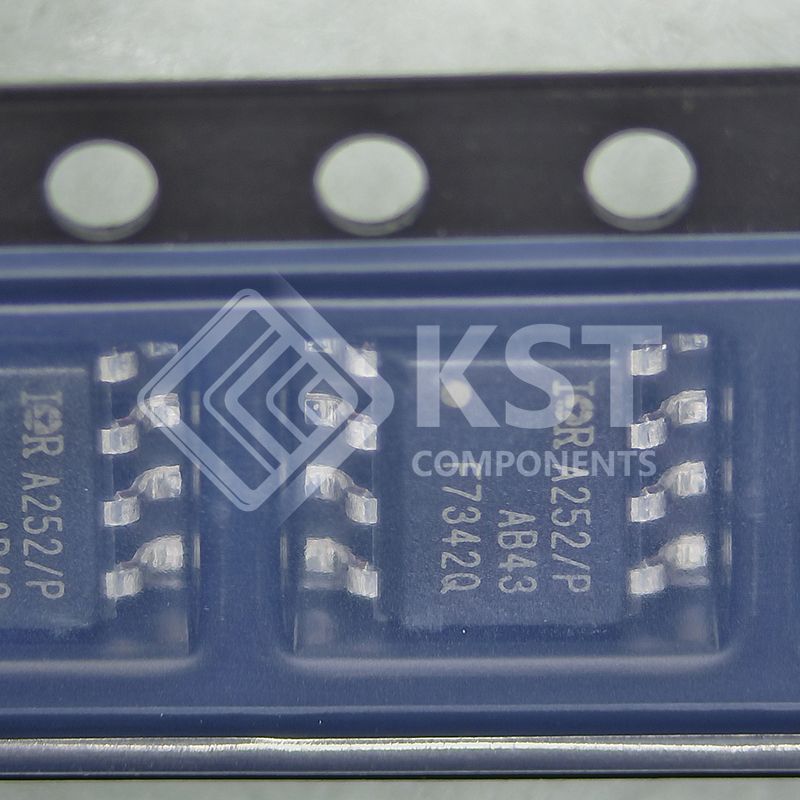

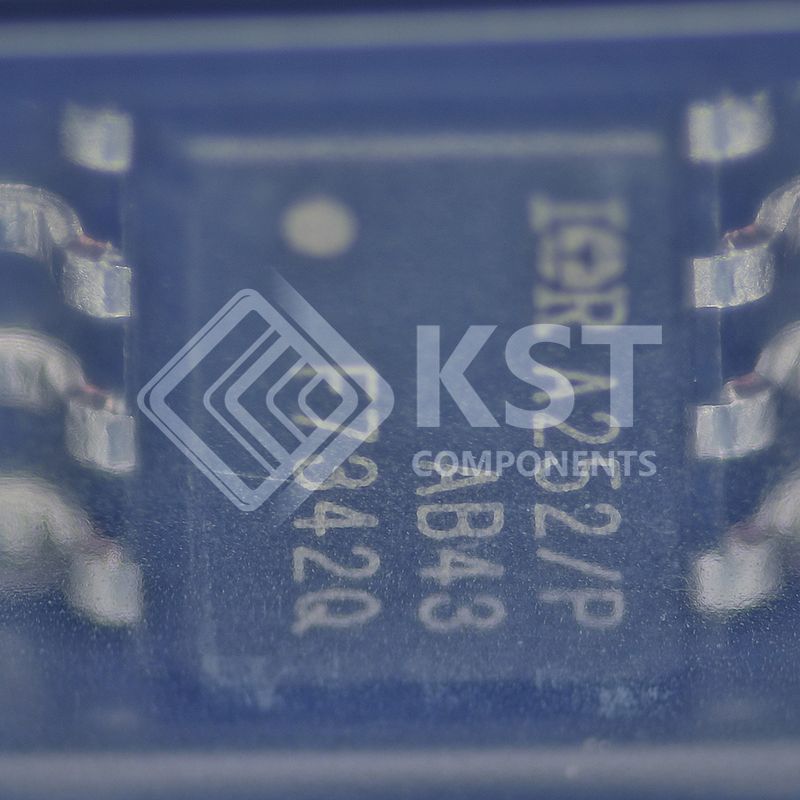

AUIRF7342QTR
Part Number:
AUIRF7342QTR
Product Classification:
Solid State Relays (SSR)
Manufacturer:
AIC tech
Description:
MOSFET 2P-CH 55V 3.4A 8SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer |
Infineon Technologies
|
|
|
Series |
HEXFET® |
|
|
Packaging |

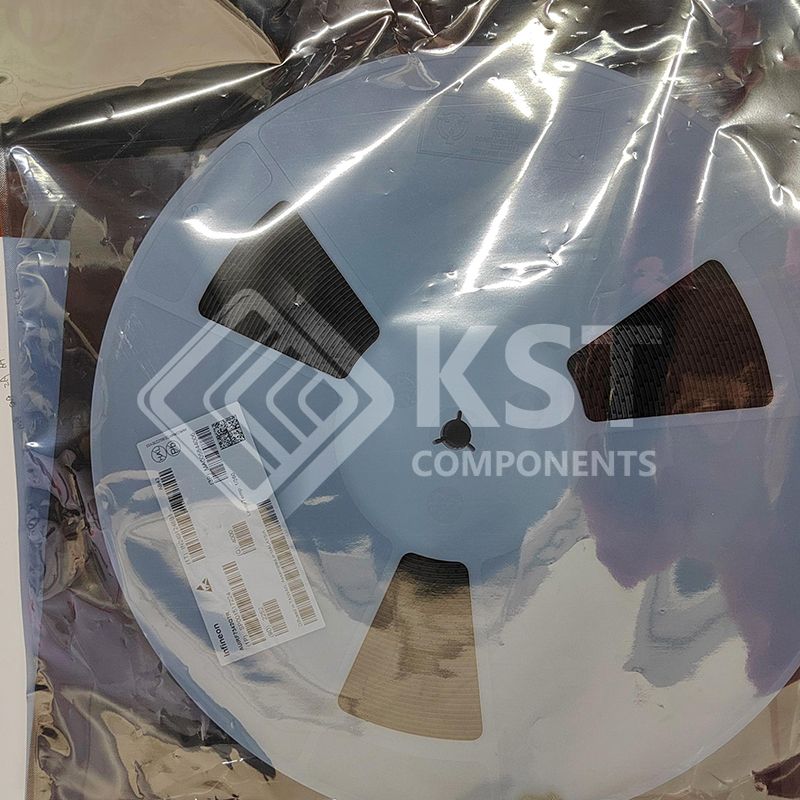

Tape & Reel (TR)
|
|
|
Part Status |
Obsolete
|
|
|
Technology |
MOSFET (Metal Oxide)
|
|
|
Configuration |
2 P-Channel (Dual)
|
|
|
FET Feature |
Logic Level Gate
|
|
|
Drain to Source Voltage (Vdss) |
55V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
3.4A
|
|
|
Rds On (Max) @ Id, Vgs |
105mOhm @ 3.4A, 10V
|
|
|
Vgs(th) (Max) @ Id |
3V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
38nC @ 10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
690pF @ 25V
|
|
|
Power - Max |
2W
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q101
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SOIC
|
|
|
Base Product Number |
AUIRF7342 |
