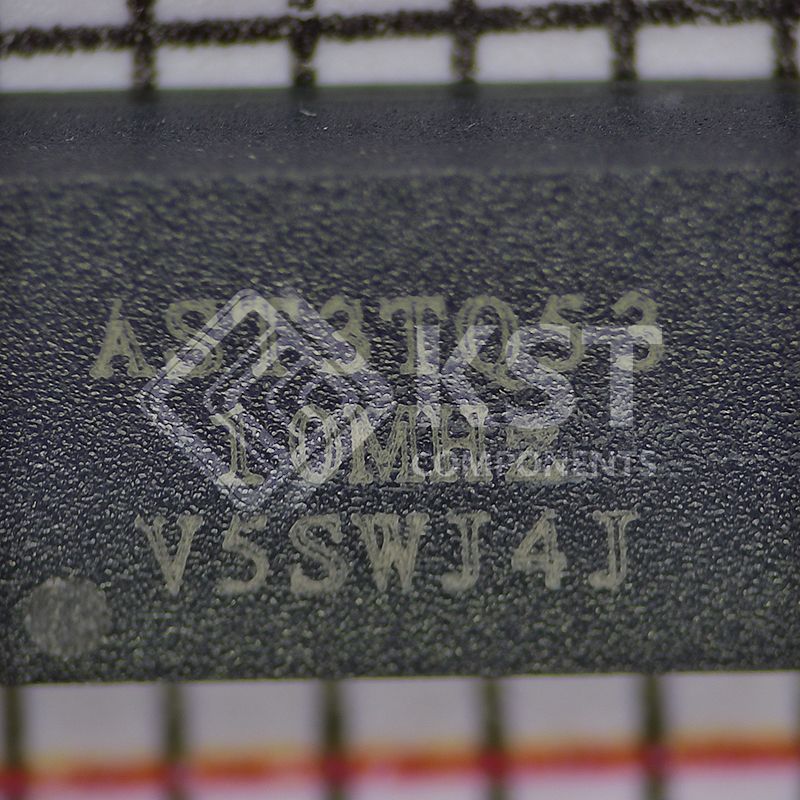

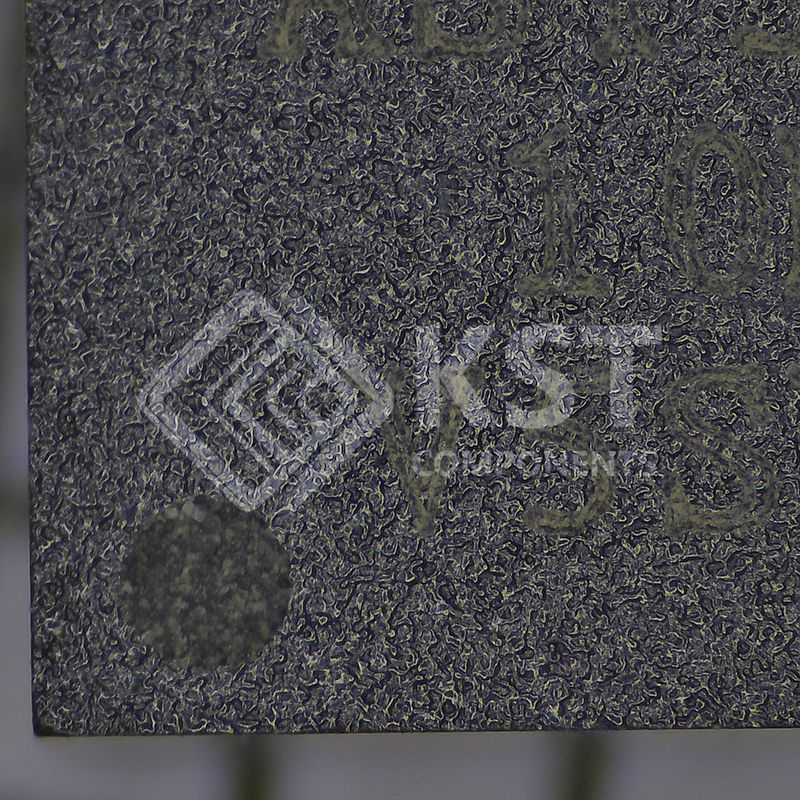

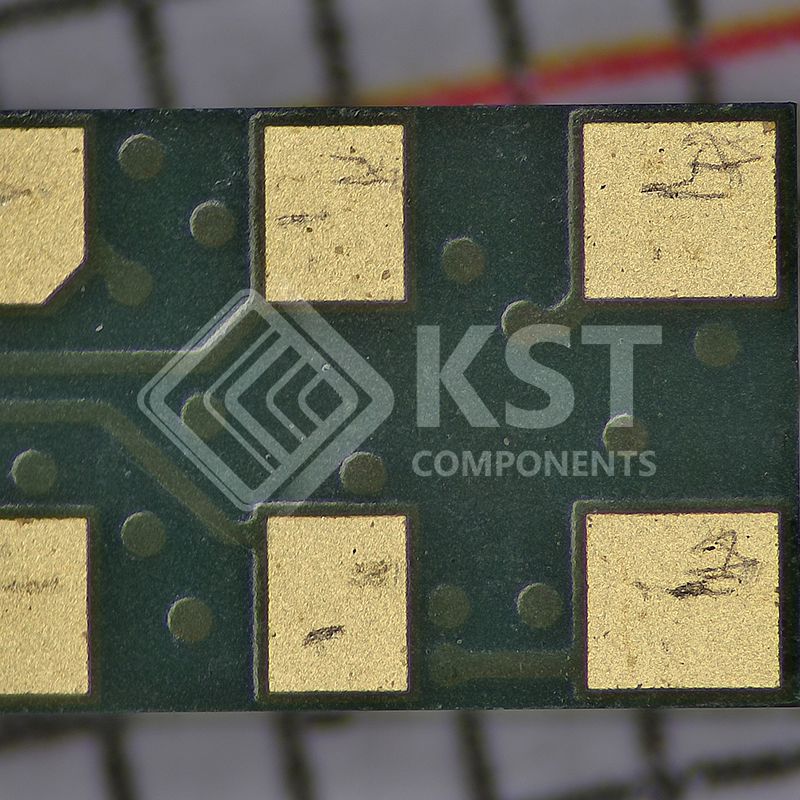

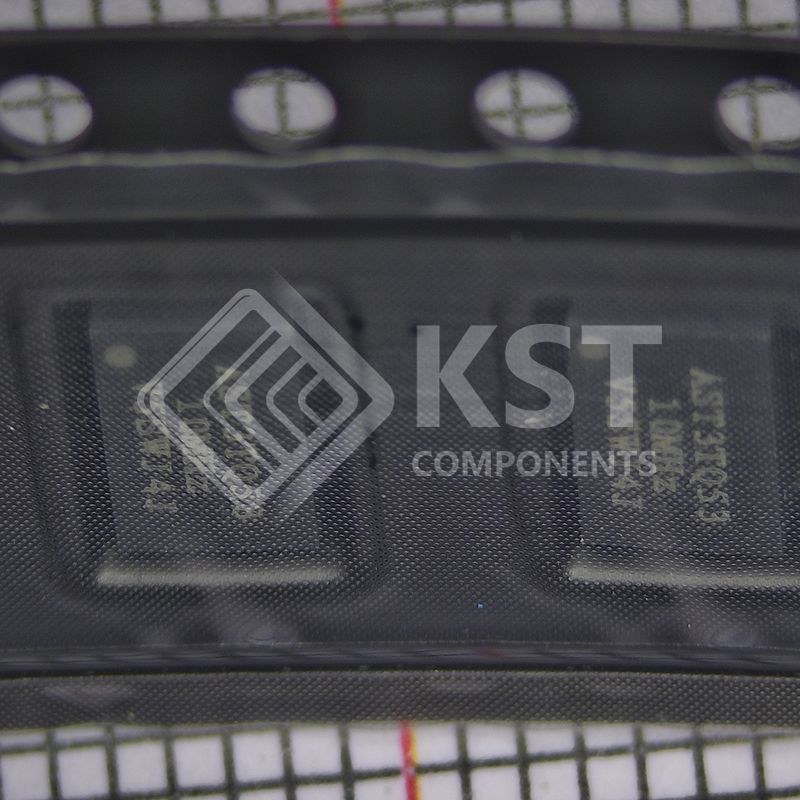

AST3TQ53-V-10.000MHZ-5-SW
Part Number:
AST3TQ53-V-10.000MHZ-5-SW
Product Classification:
AC DC Configurable Power Supply Modules
Manufacturer:
Agile MwT
Description:
XTAL OSC VCTCXO 10.0000MHZ SNWV
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Crystals, Oscillators, Resonators
Oscillators
|
|
|
Mfr |
Abracon LLC |
|
|
Series |
AST3TQ53 |
|
|
Packaging |
Strip
|
|
|
Part Status |
Active
|
|
|
Base Resonator |
Crystal |
|
|
Type |
VCTCXO |
|
|
Frequency |
10 MHz
|
|
|
Function |
-
|
|
|
Output |
Clipped Sine Wave
|
|
|
Voltage - Supply |
3.3V
|
|
|
Frequency Stability |
±50ppb
|
|
|
Absolute Pull Range (APR) |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Current - Supply (Max) |
6mA
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
4-SMD, No Lead
|
|
|
Supplier Device Package |
4-VDFN (3.2x2.5)
|
|
|
Size / Dimension |
0.205" L x 0.134" W (5.20mm x 3.40mm)
|
|
|
Height - Seated (Max) |
0.063" (1.60mm)
|
