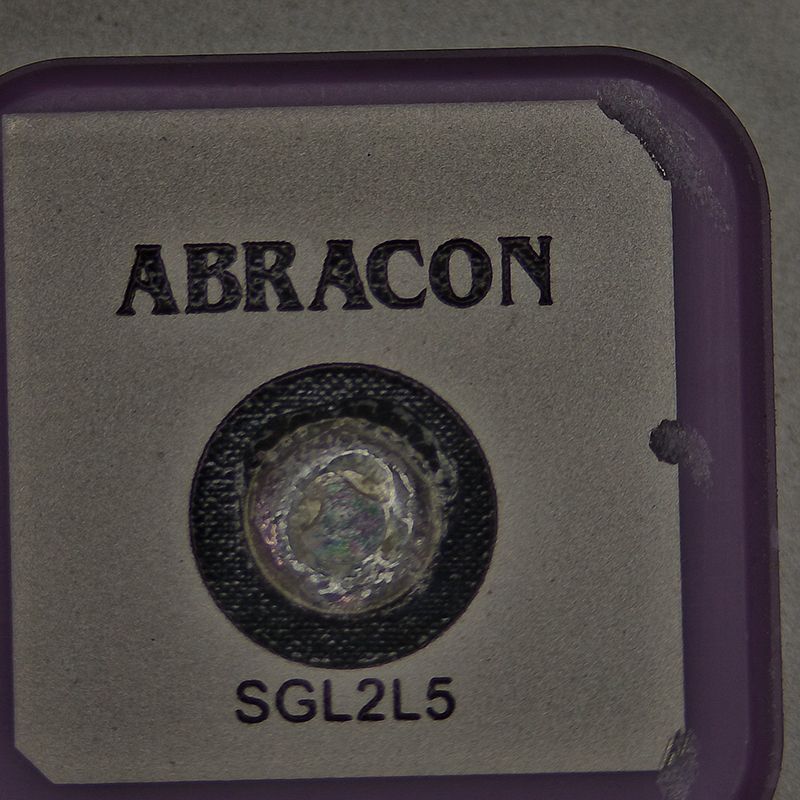

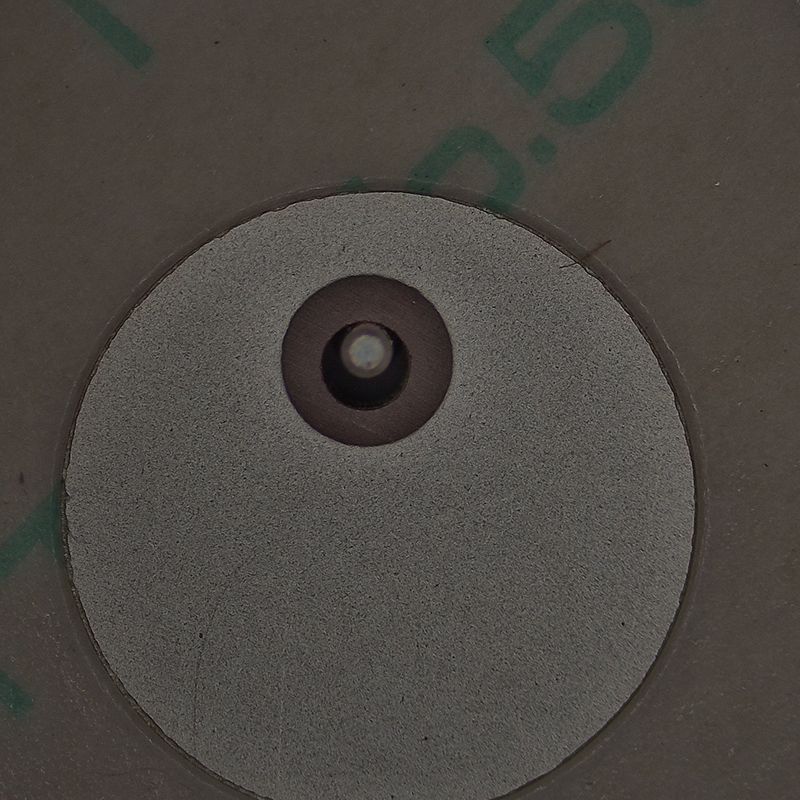

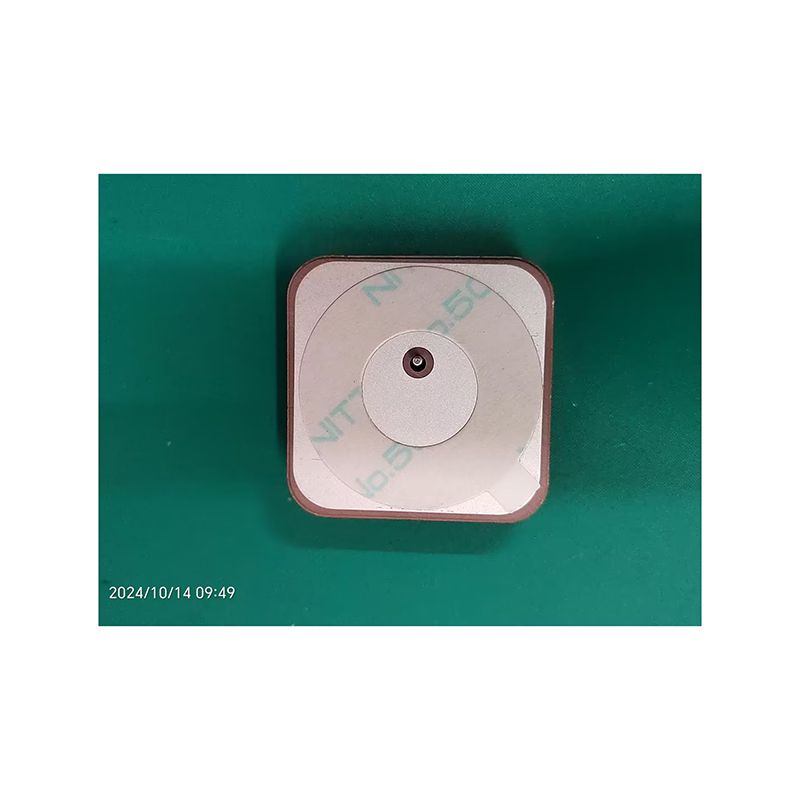

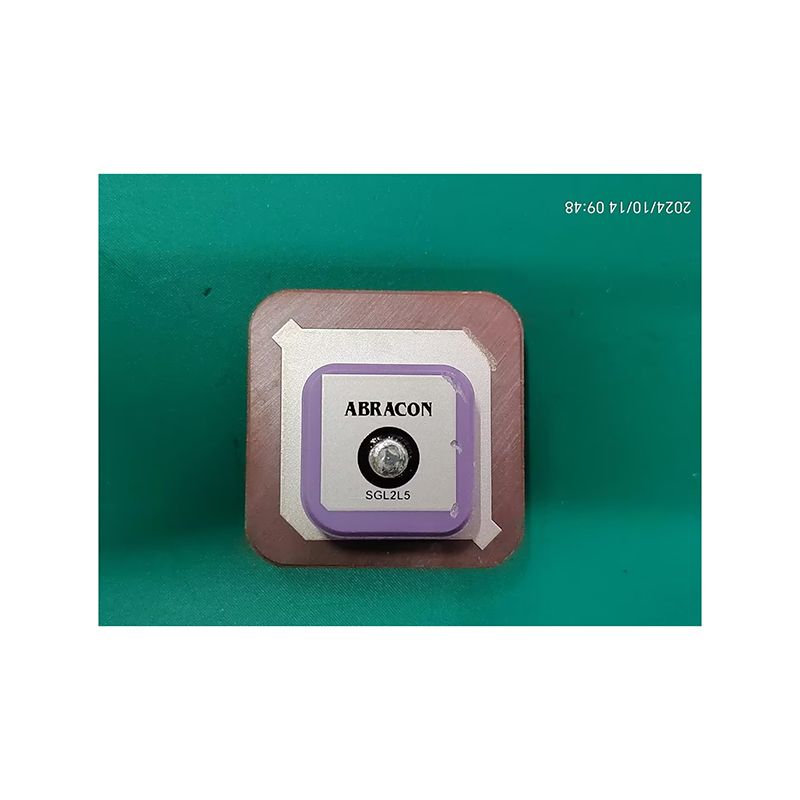

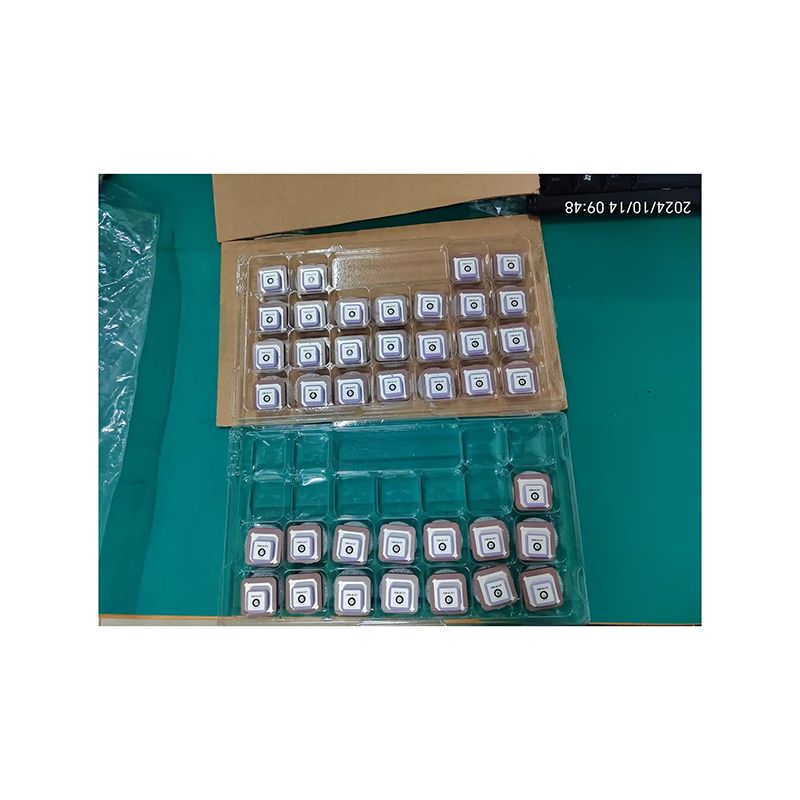

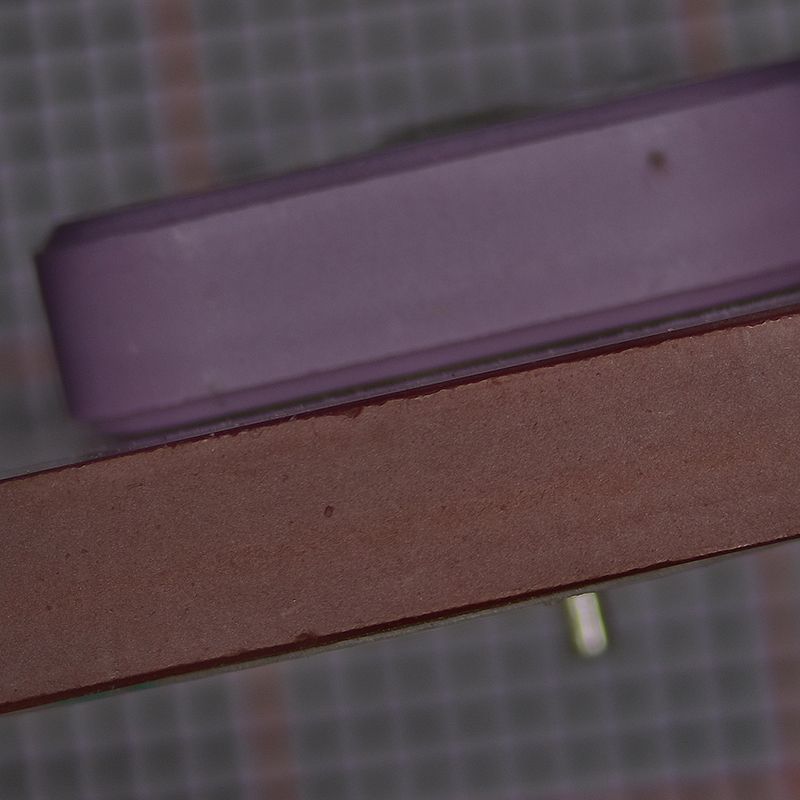

APARM2508S-SGL2L5
Part Number:
APARM2508S-SGL2L5
Product Classification:
Accessories
Manufacturer:
Agile MwT
Description:
RF ANT GPS L1+L2+L5 STACK PATCH
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
RF and Wireless
RF Antennas
|
|
|
Manufacturer |
Abracon LLC
|
|
|
Series |
APARM |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
RF Family/Standard |
Navigation
|
|
|
Frequency Group |
UHF (1GHz ~ 2GHz)
|
|
|
Frequency (Center/Band) |
1.176GHz, 1.575GHz
|
|
|
Frequency Range |
1.164GHz ~ 1.188GHz, 1.574GHz ~ 1.576GHz
|
|
|
Antenna Type |
Ceramic Patch
|
|
|
Number of Bands |
2
|
|
|
VSWR |
1.8
|
|
|
Return Loss |
-
|
|
|
Gain |
3.8dBi, -0.3dBi, -0.5dBi
|
|
|
Features |
-
|
|
|
Termination |
Pin
|
|
|
Ingress Protection |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Height (Max) |
0.315" (8.00mm)
|
|
|
Applications |
GPS
|
