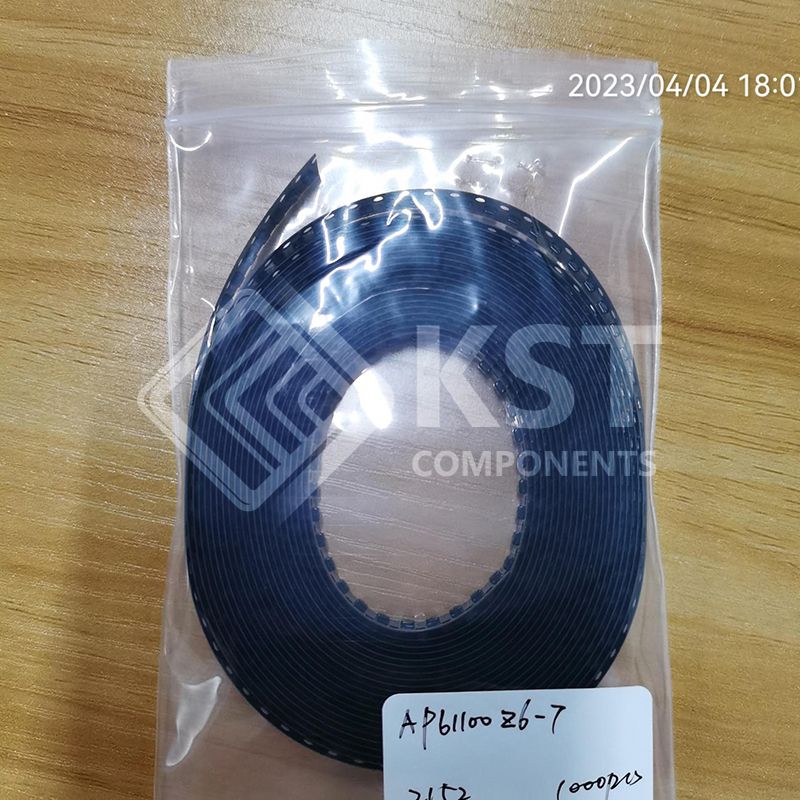

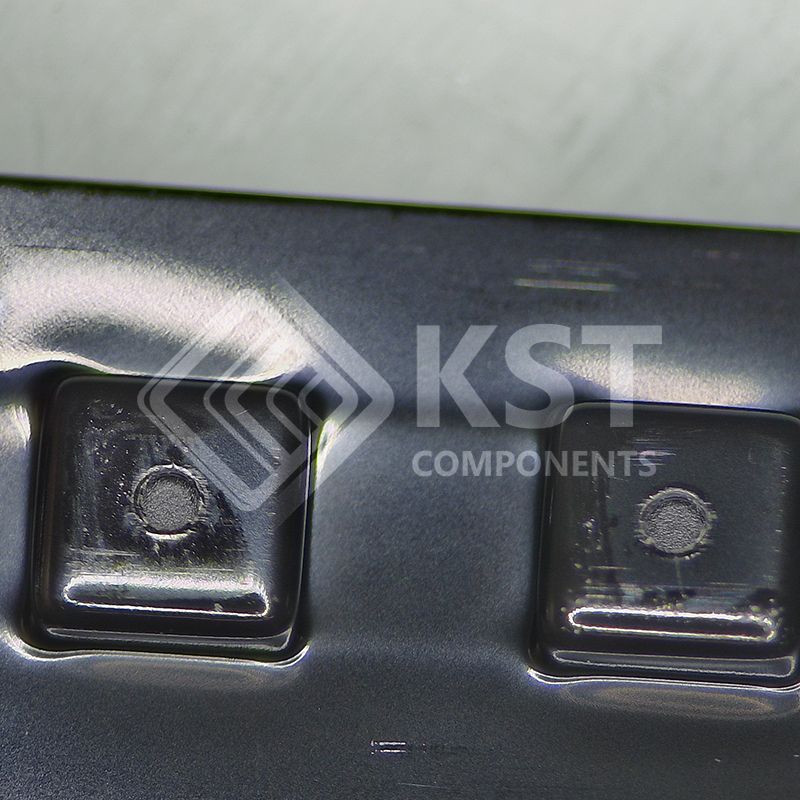

    • AP61100Z6-7

    AP61100Z6-7

    Part Number: AP61100Z6-7
    Product Classification: Power Transformers
    Manufacturer: All Sensors Corporation
    Description: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A SOT-563, SOT-666
    Packaging: -
    ROHS Status: No
    Currency: USD

     VIN: 2.3V to 5.5V
     Output Voltage (VOUT): 0.6V to 3.6V
     1A Continuous Output Current
     0.6V ± 2% Reference Voltage
     15μA Low Quiescent Current (Pulse Frequency Modulation)
     2.2MHz Switching Frequency (VIN = 5V, VOUT = 1.8V)
     Up to 89% Efficiency at 5mA Light Load
     Programmable Operation Mode Through EN
     Pulse Frequency Modulation
     Pulse Width Modulation Regardless of Output Load
     Power-Good Indicator
     AP61102
     Protection Circuitry
     Undervoltage Lockout (UVLO)
     VIN Overvoltage Protection (OVP)
     Peak Current Limit
     Valley Current Limit
     Thermal Shutdown
     Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
     Halogen and Antimony Free. “Green” Device (Note 3)
     For automotive applications requiring specific change
    control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP
    capable, and manufactured in IATF 16949 certified
    facilities), please contact us or your local Diodes
    representative. https://www.diodes.com/quality/productdefinitions/
     An Automotive-Compliant Part is Available Under Separate
    Datasheet (AP61100Q/AP61102Q)

    Specification
