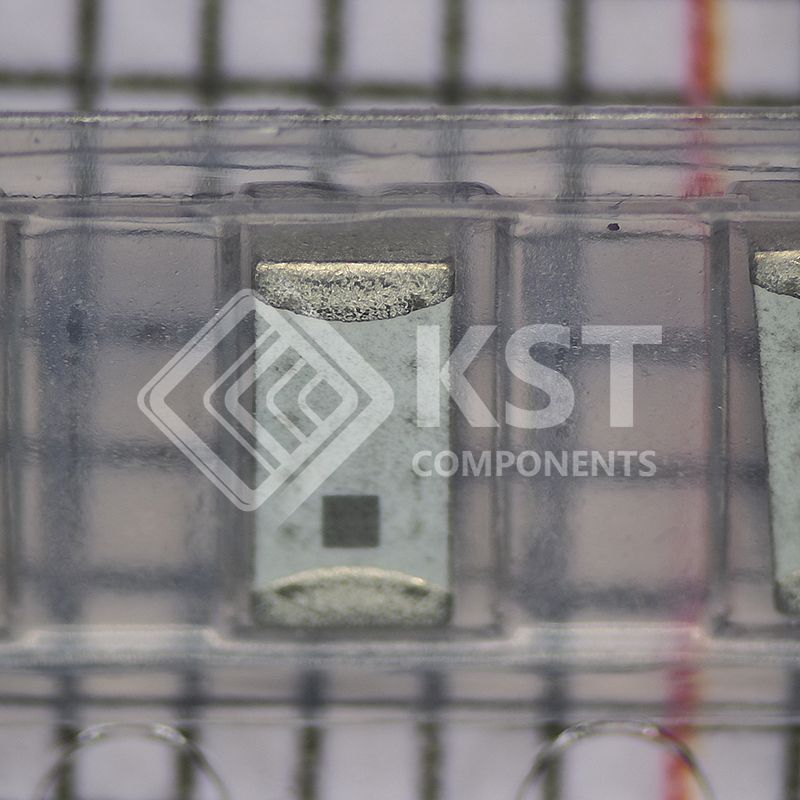

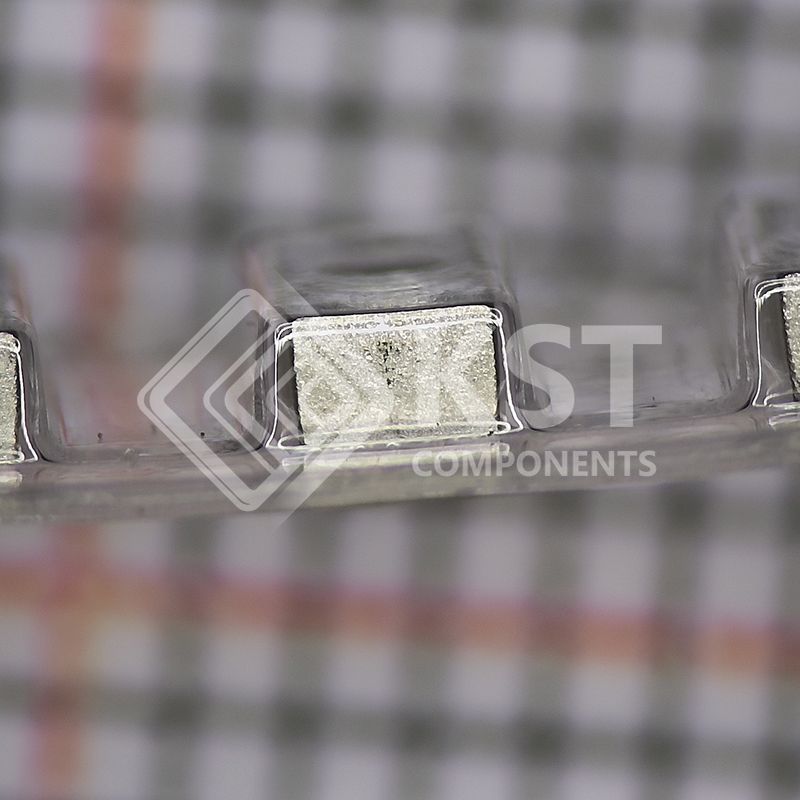

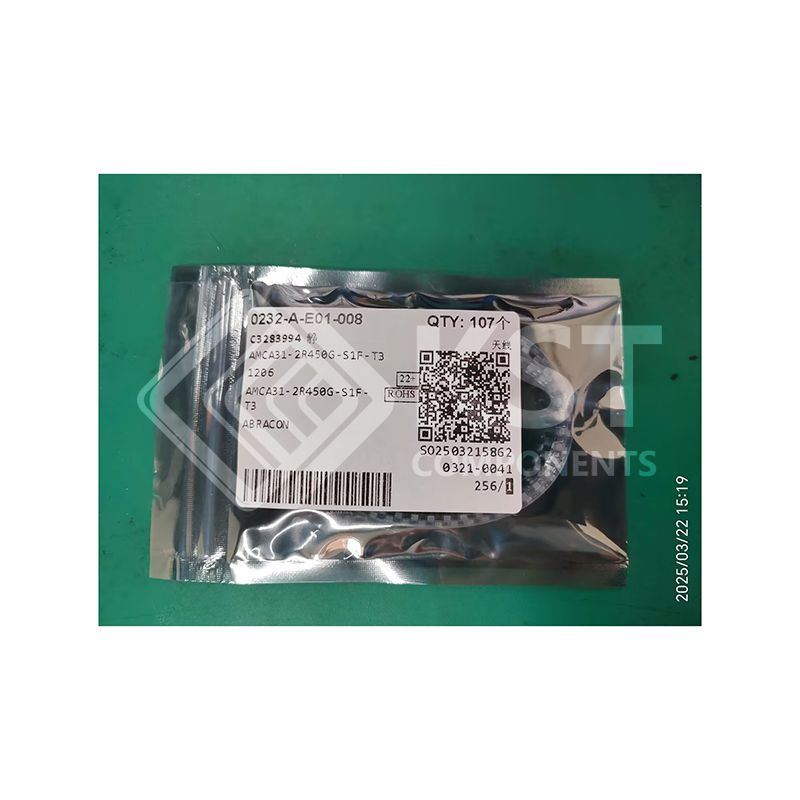

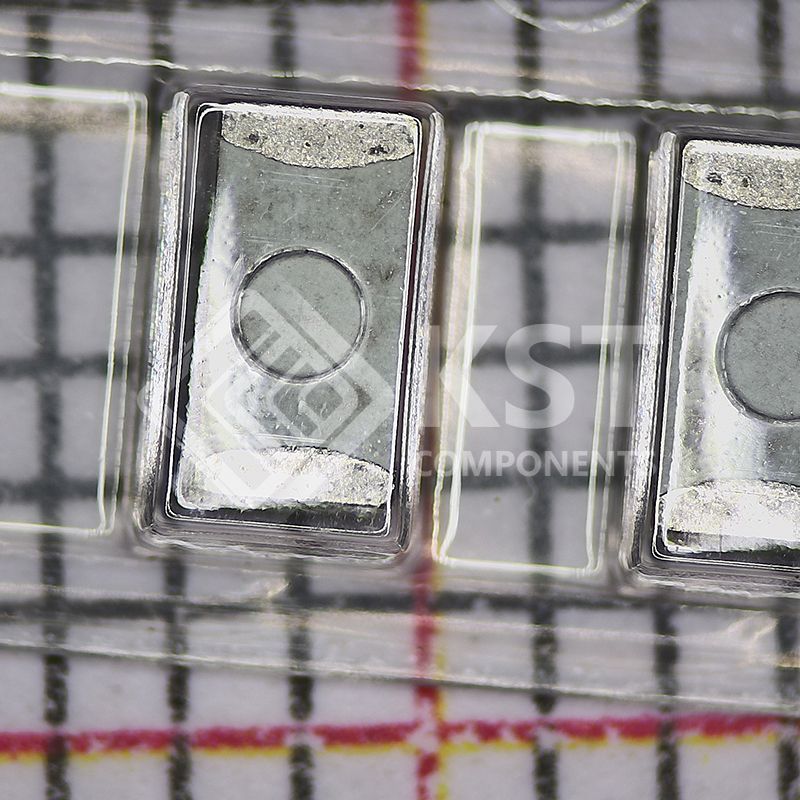

AMCA31-2R450G-S1F-T3
Part Number:
AMCA31-2R450G-S1F-T3
Product Classification:
Accessories
Manufacturer:
Agile MwT
Description:
RF ANT 2.4GHZ CHIP SOLDER SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
RF and Wireless
RF Antennas
|
|
|
Manufacturer |
Abracon LLC
|
|
|
Series |
AMCA |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
RF Family/Standard |
Bluetooth, General ISM, WiFi
|
|
|
Frequency Group |
UHF (2GHz ~ 3GHz)
|
|
|
Frequency (Center/Band) |
2.45GHz
|
|
|
Frequency Range |
2.4GHz ~ 2.5GHz
|
|
|
Antenna Type |
Chip
|
|
|
Number of Bands |
1
|
|
|
VSWR |
-
|
|
|
Return Loss |
-
|
|
|
Gain |
2.3dBi
|
|
|
Power - Max |
3 W
|
|
|
Features |
-
|
|
|
Termination |
Solder
|
|
|
Ingress Protection |
-
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Height (Max) |
0.047" (1.20mm)
|
|
|
Applications |
Bluetooth, IoT, ISM, M2M, Wi-Fi, ZigBee™
|
