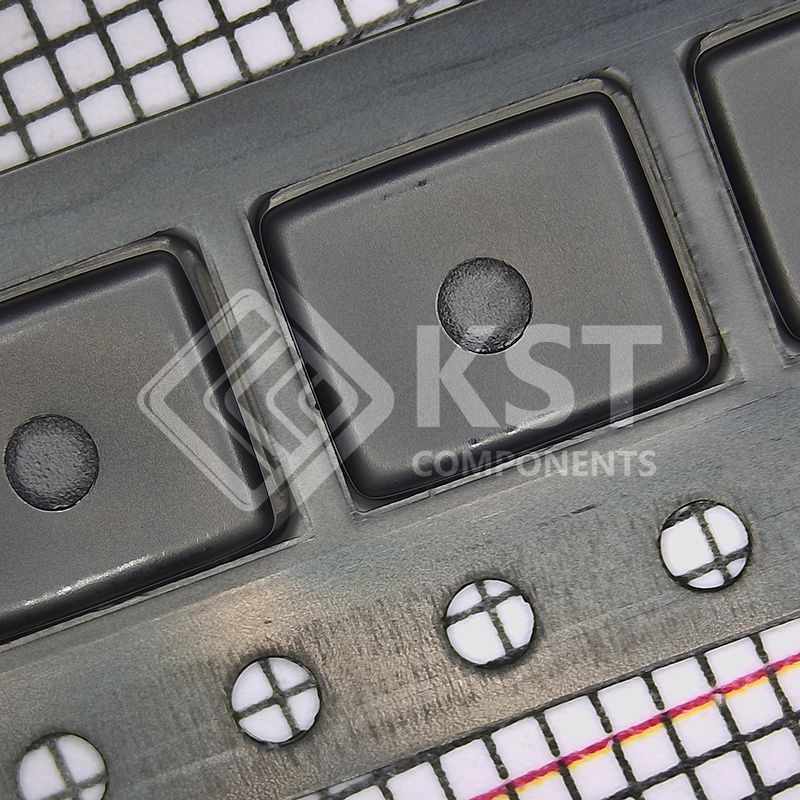

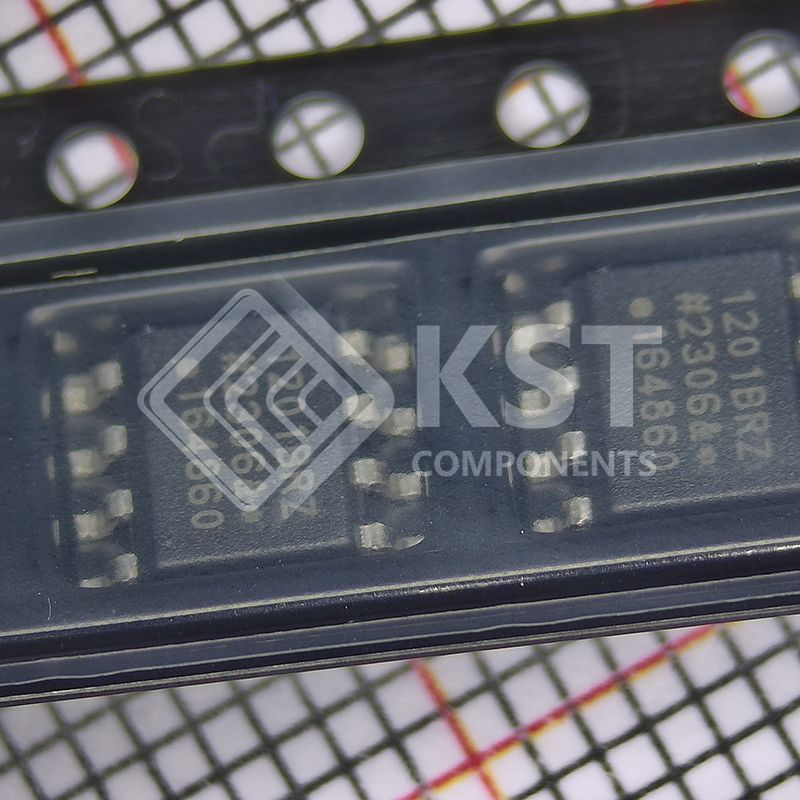

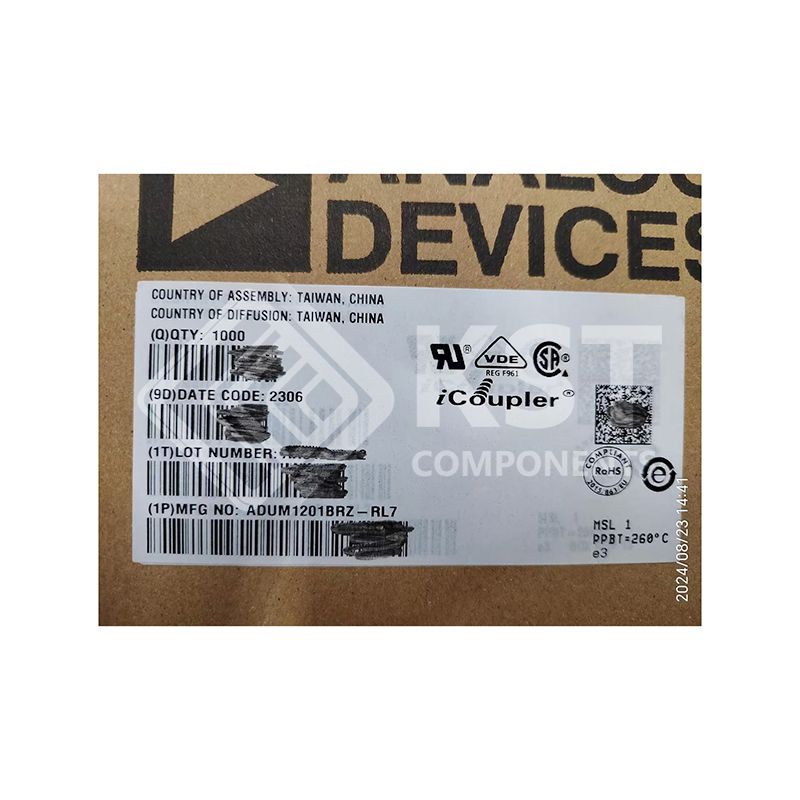

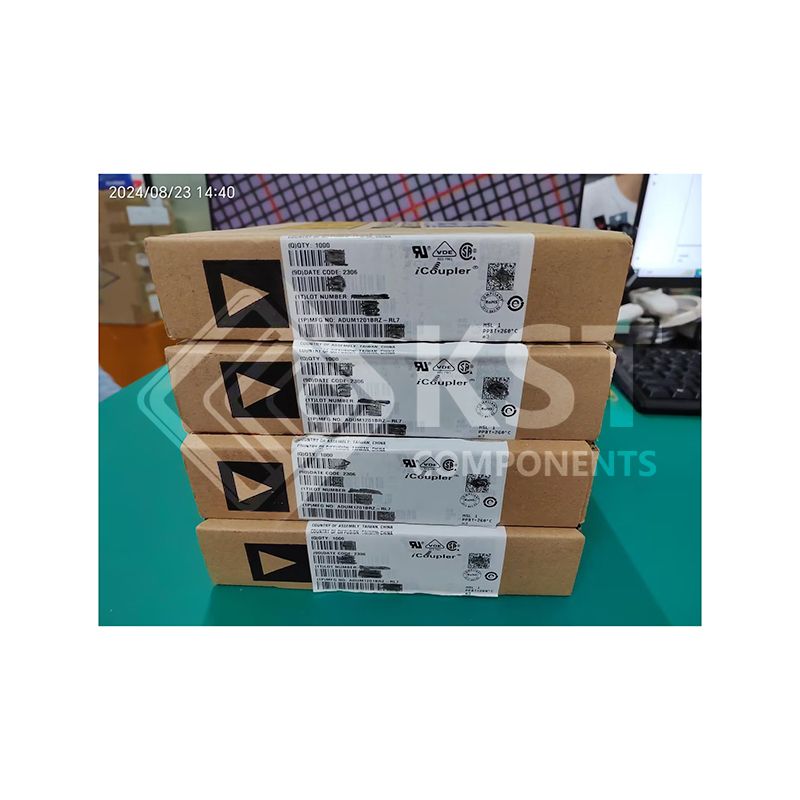

ADUM1201BRZ-RL7
Part Number:
ADUM1201BRZ-RL7
Product Classification:
Accessories - Caps
Manufacturer:
AEM Central Semiconductor
Description:
DGTL ISO 2500VRMS 2CH GP 8SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Isolators
Digital Isolators
|
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
iCoupler® |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
Magnetic Coupling
|
|
|
Type |
General Purpose
|
|
|
Isolated Power |
No
|
|
|
Number of Channels |
2
|
|
|
Inputs - Side 1/Side 2 |
1/1
|
|
|
Channel Type |
Unidirectional
|
|
|
Voltage - Isolation |
2500Vrms
|
|
|
Common Mode Transient Immunity (Min) |
25kV/µs
|
|
|
Data Rate |
10Mbps |
|
|
Propagation Delay tpLH / tpHL (Max) |
50ns, 50ns
|
|
|
Pulse Width Distortion (Max) |
3ns
|
|
|
Rise / Fall Time (Typ) |
2.5ns, 2.5ns
|
|
|
Voltage - Supply |
2.7V ~ 5.5V
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
|
Supplier Device Package |
8-SOIC
|
|
|
Base Product Number |
ADUM1201 |
