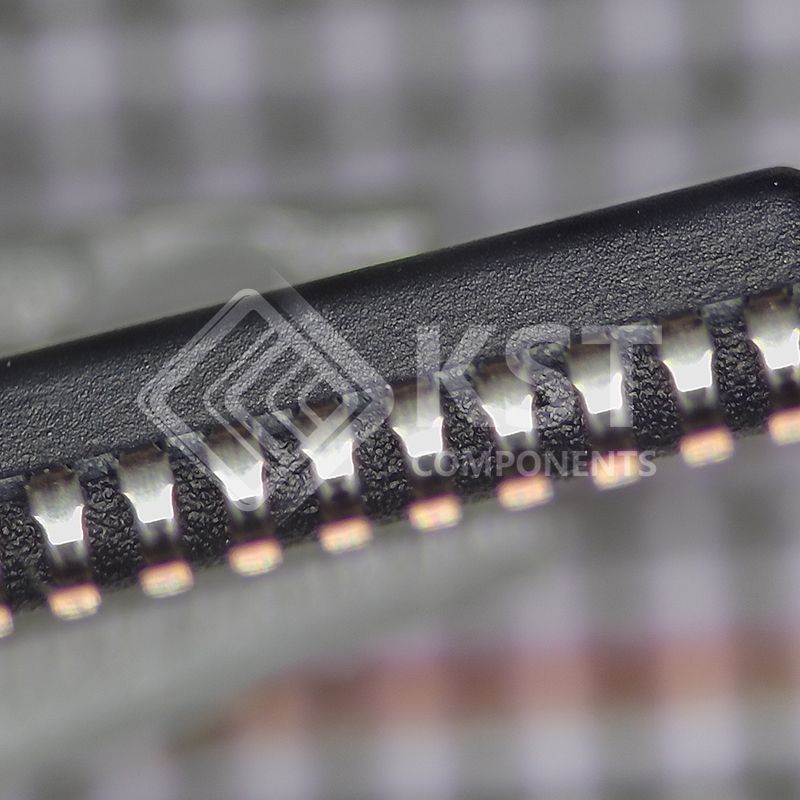

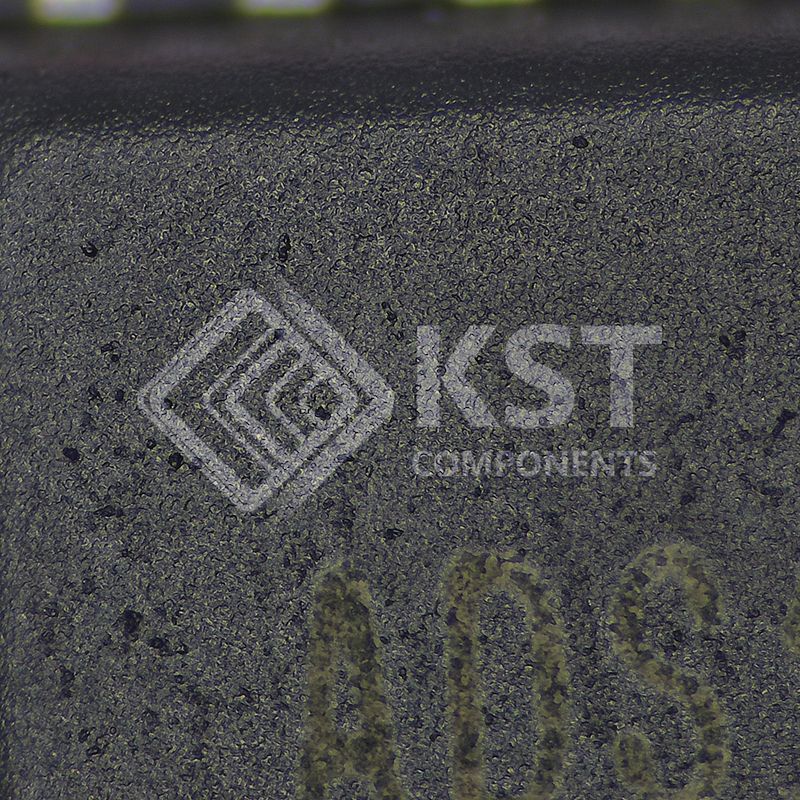

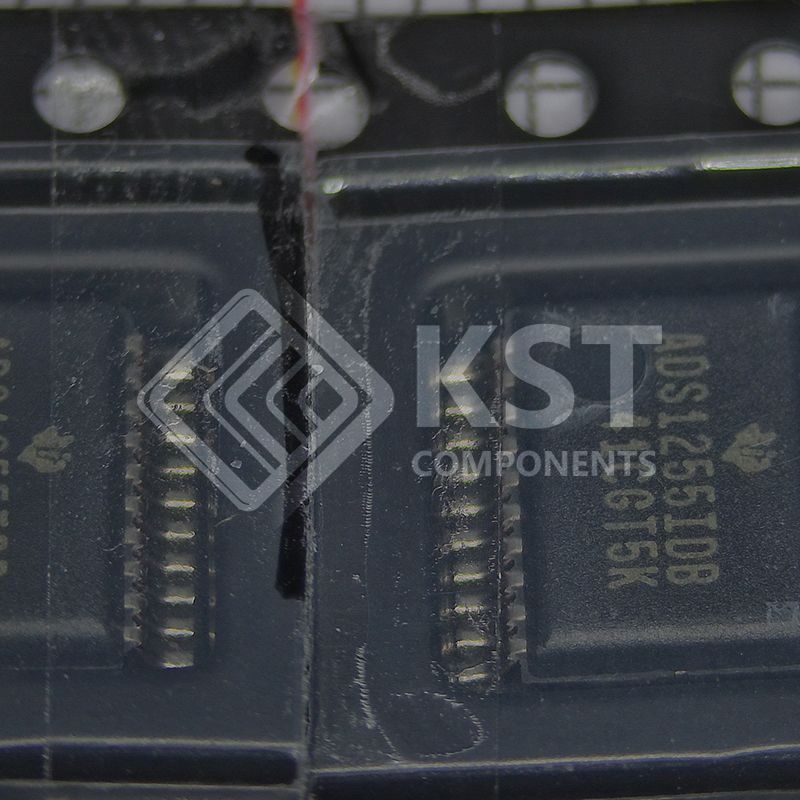

ADS1255IDBR
Part Number:
ADS1255IDBR
Product Classification:
Isolation Transformers and Autotransformers, Step Up, Step Down
Manufacturer:
3PEAK
Description:
IC ADC 24BIT SIGMA-DELTA 20SSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Data Acquisition
Analog to Digital Converters (ADC)
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
-
|
|
|
Packaging |

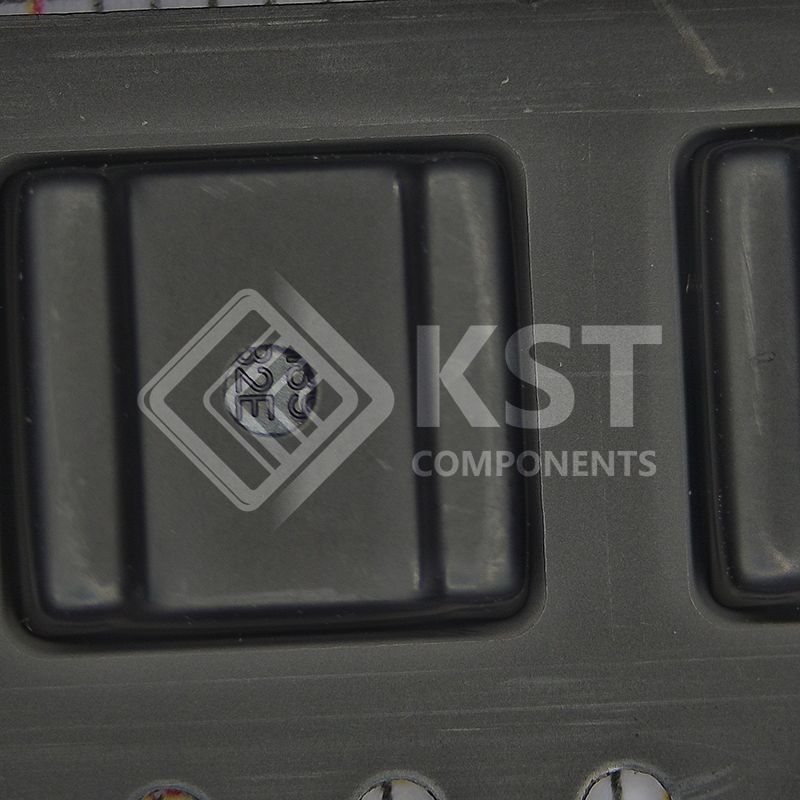

Tape & Reel (TR)

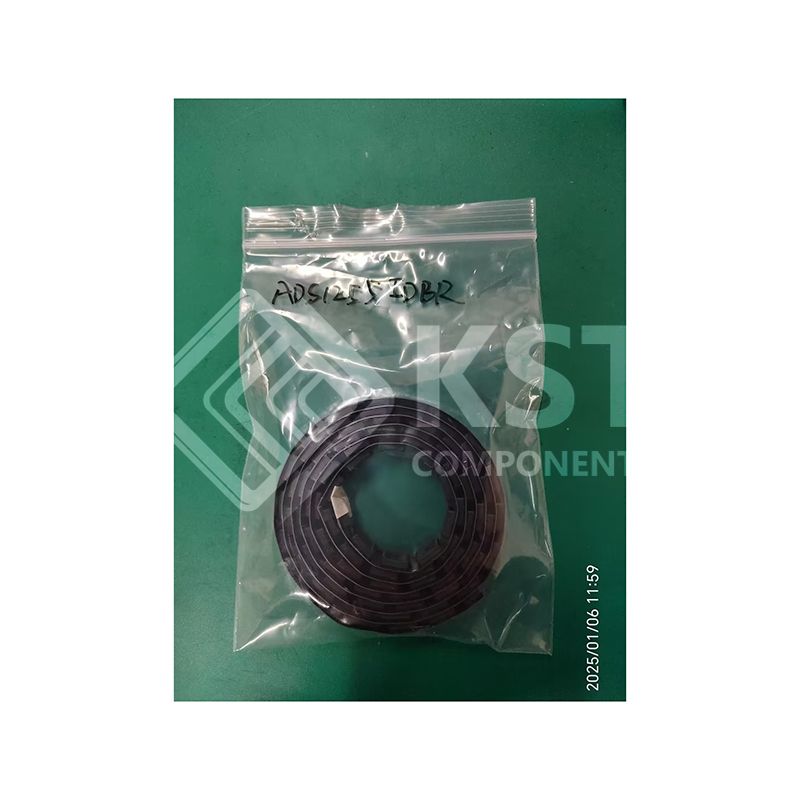

Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Number of Bits |
24
|
|
|
Sampling Rate (Per Second) |
30k
|
|
|
Number of Inputs |
1, 2
|
|
|
Input Type |
Differential, Single Ended
|
|
|
Data Interface |
SPI
|
|
|
Configuration |
MUX-PGA-ADC
|
|
|
Ratio - S/H:ADC |
-
|
|
|
Number of A/D Converters |
1
|
|
|
Architecture |
Sigma-Delta
|
|
|
Reference Type |
External
|
|
|
Voltage - Supply, Analog |
5V
|
|
|
Voltage - Supply, Digital |
1.8V ~ 3.6V
|
|
|
Features |
PGA
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|

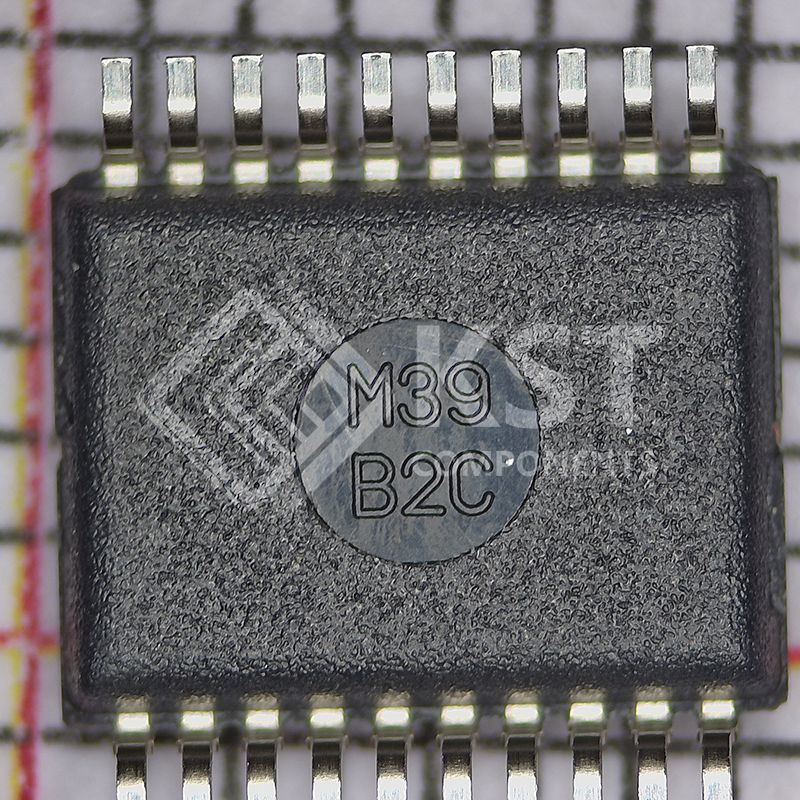

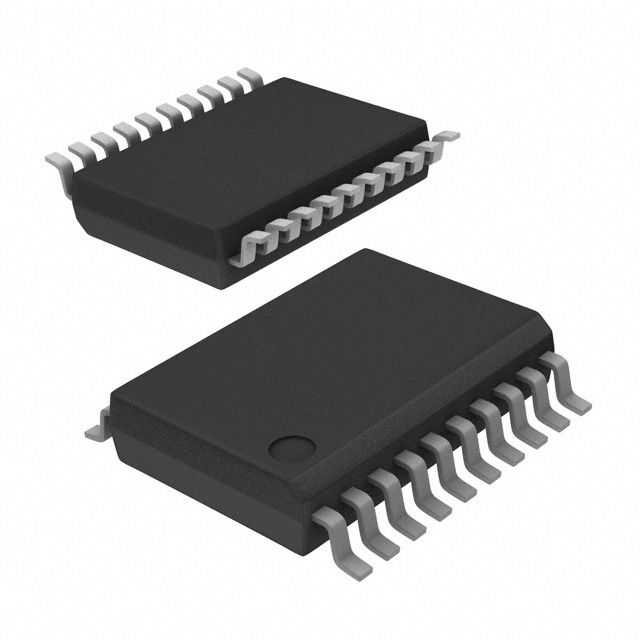

Package / Case |
20-SSOP (0.209", 5.30mm Width)
|
|
|
Supplier Device Package |
20-SSOP
|
|
|
Mounting Type |
Surface Mount
|
|
|
Base Product Number |
ADS1255 |
