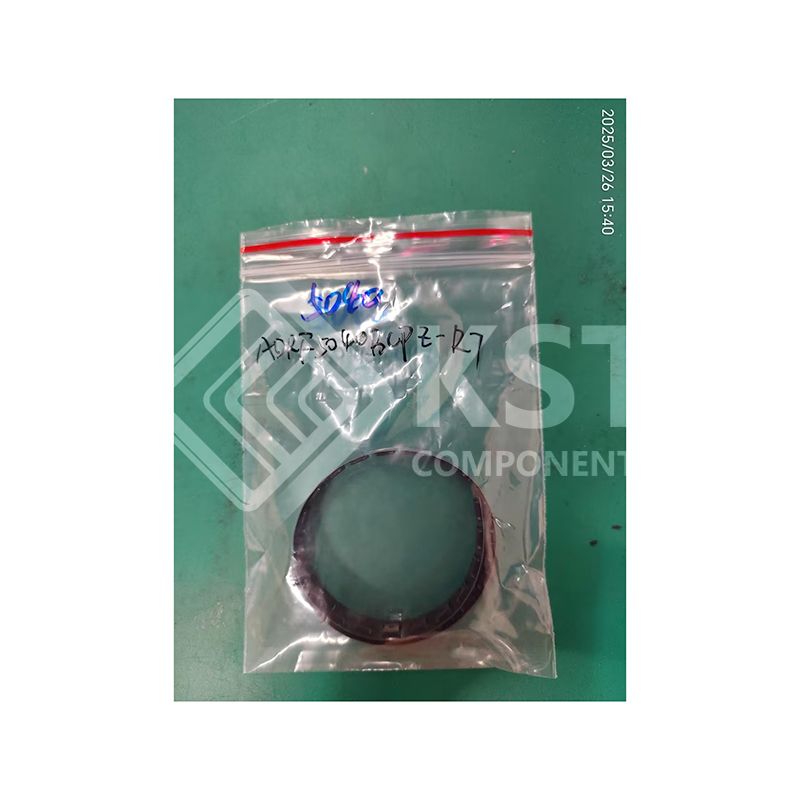

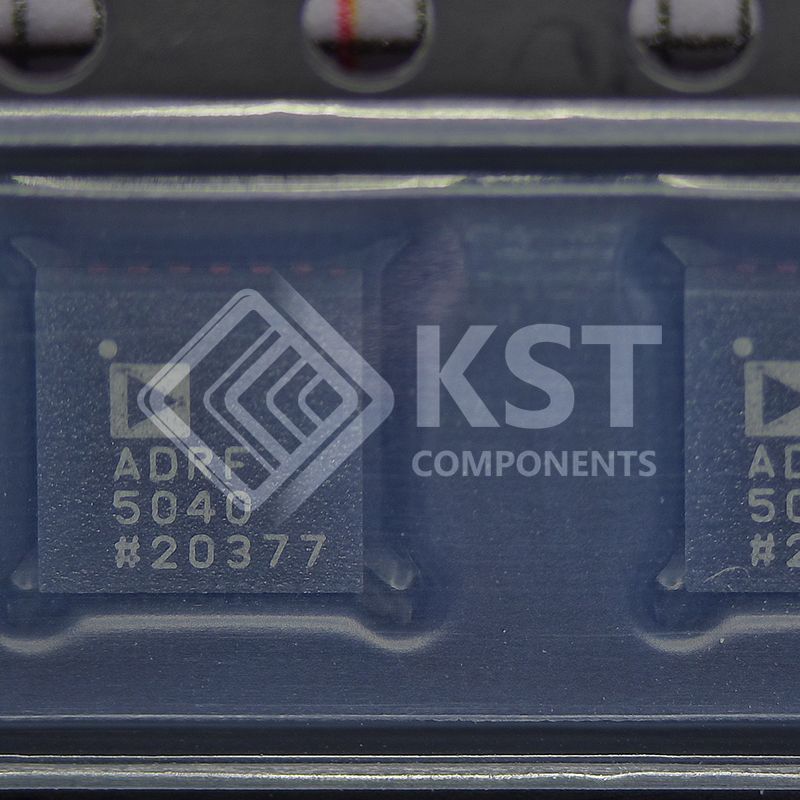

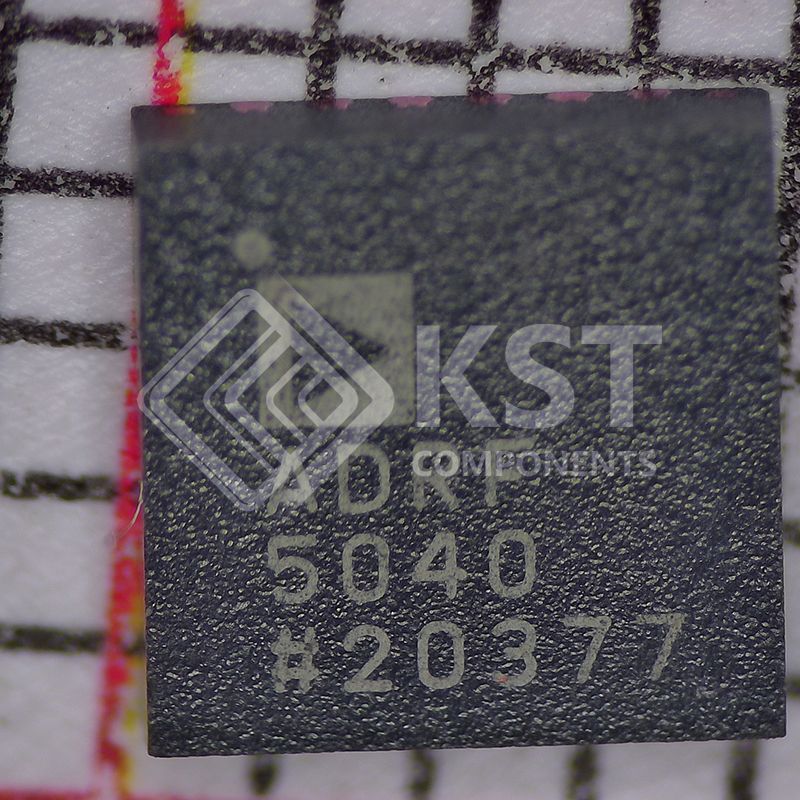

ADRF5040BCPZ-R7
Part Number:
ADRF5040BCPZ-R7
Product Classification:
Accessories
Manufacturer:
AEM Central Semiconductor
Description:
IC RF SWITCH SP4T 12GHZ 24LFCSP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
RF and Wireless
RF Switches
|
|
|
Manufacturer |
Analog Devices Inc.
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
RF Type |
VSAT
|
|
|
Topology |
Absorptive
|
|
|
Circuit |
SP4T
|
|
|
Frequency Range |
9kHz ~ 12GHz
|
|
|
Isolation |
34dB
|
|
|
Insertion Loss |
0.8dB
|
|
|
Test Frequency |
8GHz
|
|
|
P1dB |
37dBm
|
|
|
IIP3 |
53dBm
|
|
|
Features |
-
|
|
|
Impedance |
50Ohm
|
|
|
Voltage - Supply |
3.3V
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

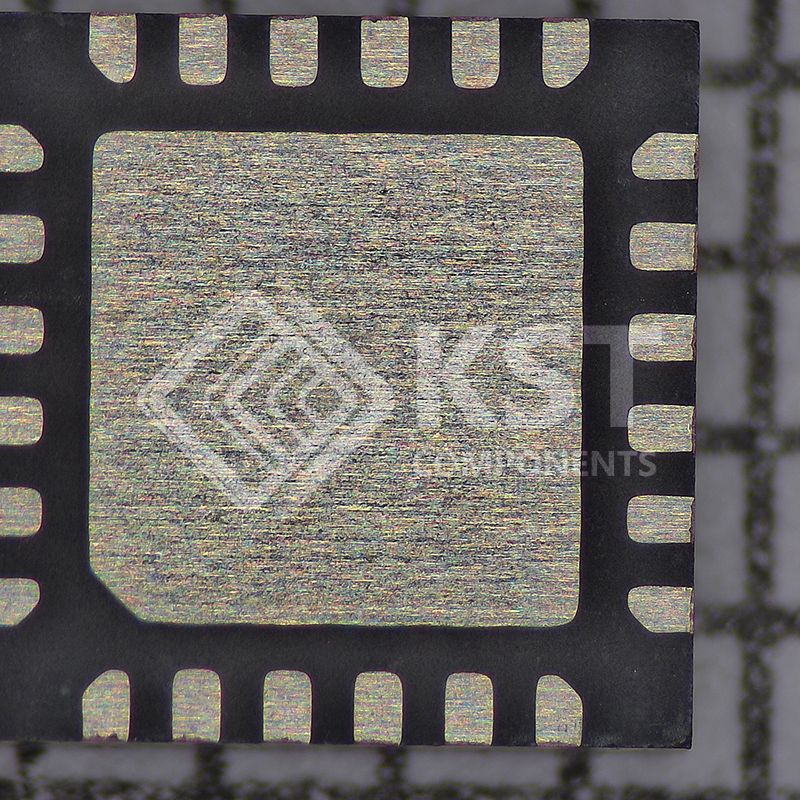

24-VFQFN Exposed Pad
|
|
|
Supplier Device Package |
24-LFCSP (4x4)
|
|
|
Base Product Number |
ADRF5040 |
|
