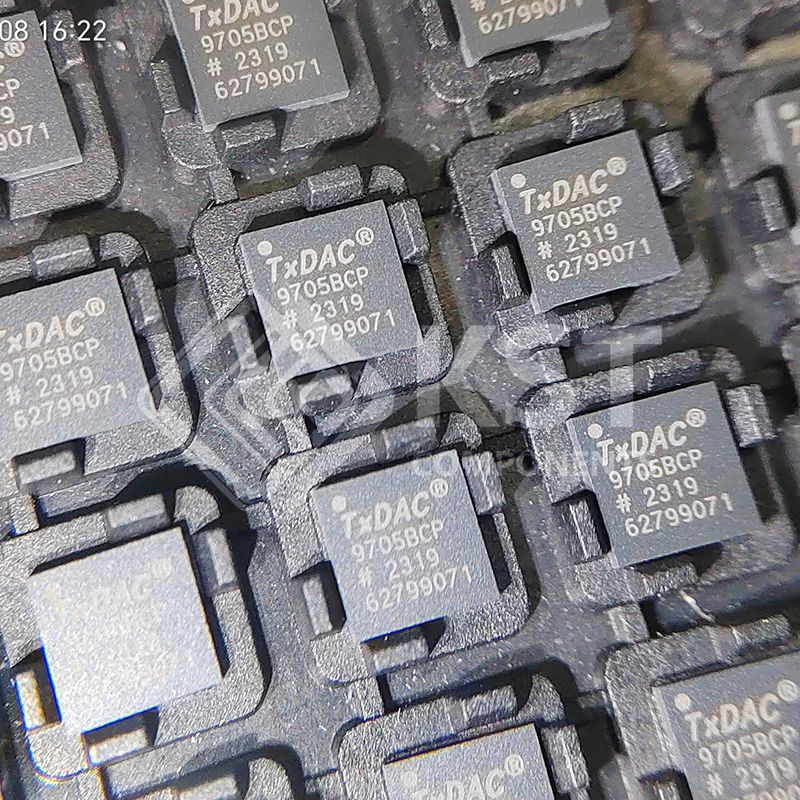

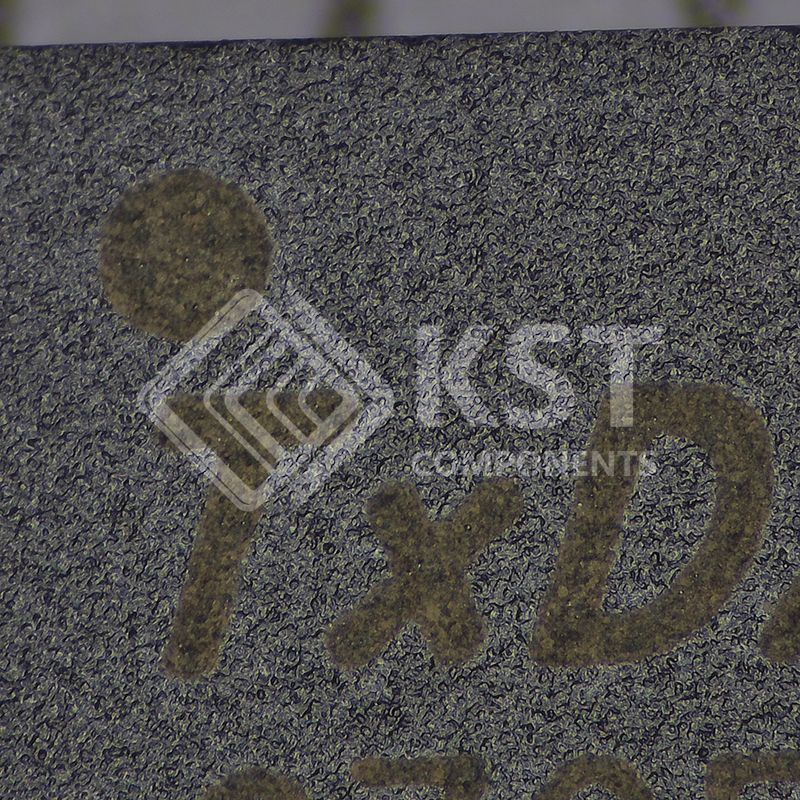

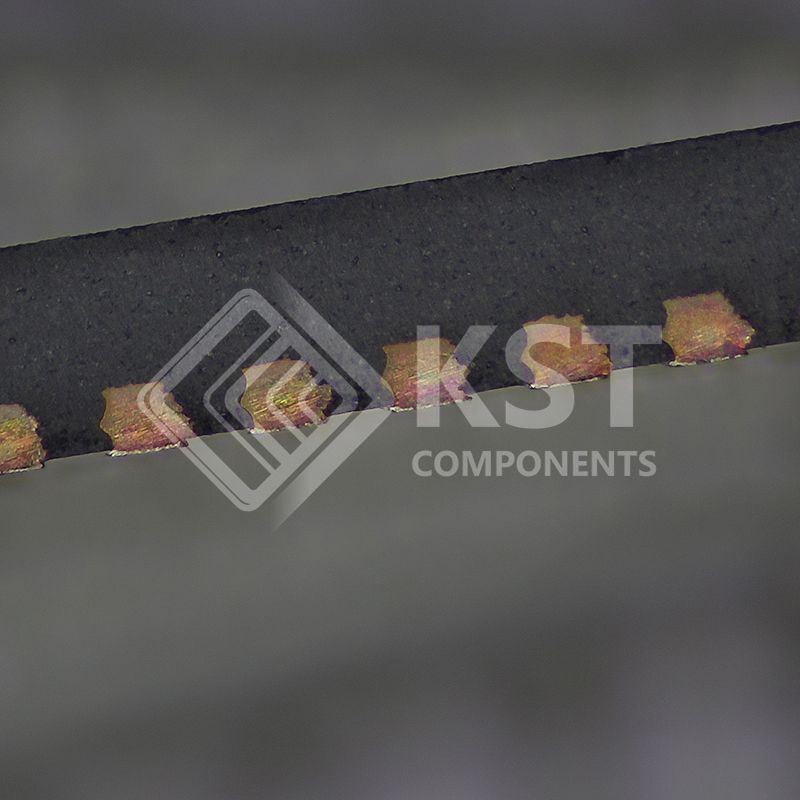

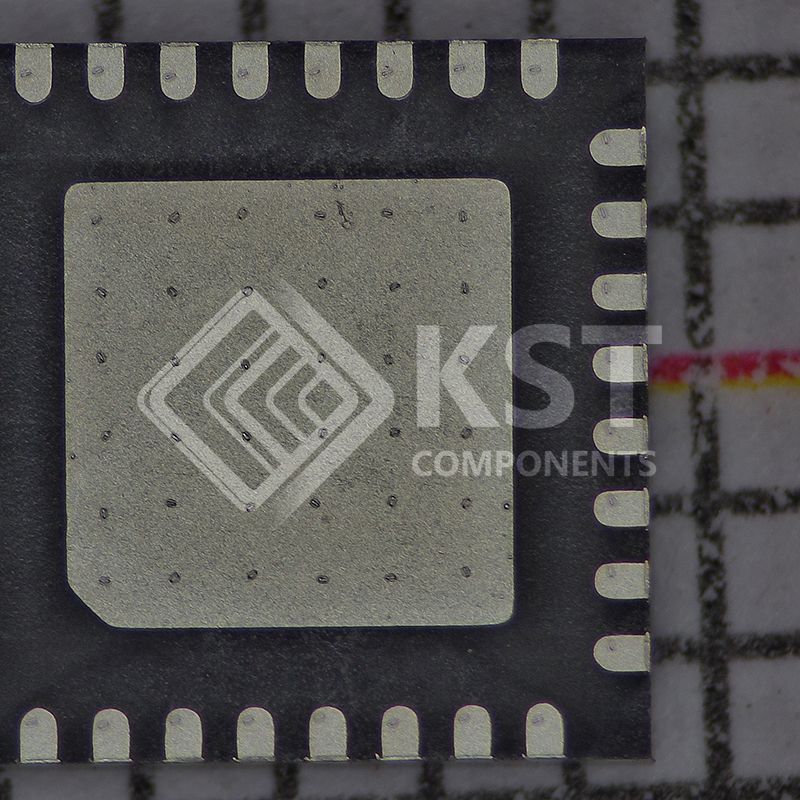

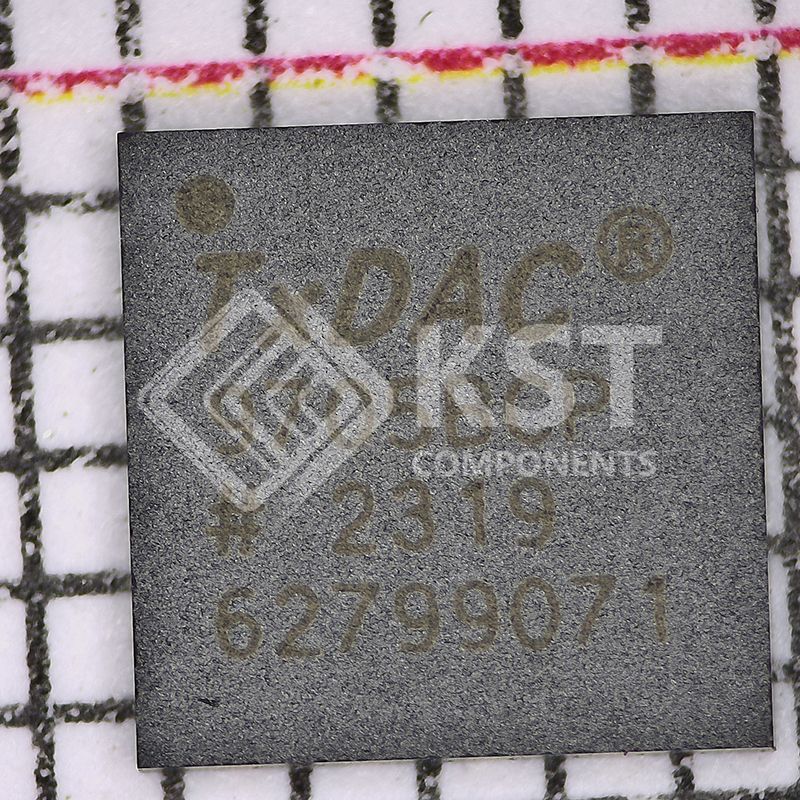

AD9705BCPZ
Part Number:
AD9705BCPZ
Product Classification:
Isolation Transformers and Autotransformers, Step Up, Step Down
Manufacturer:
AEM Central Semiconductor
Description:
IC DAC 10BIT A-OUT 32LFCSP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Data Acquisition
Digital to Analog Converters (DAC)
|
|
|
Manufacturer |
Analog Devices Inc.
|
|
|
Series |
TxDAC® |
|
|
Packaging |

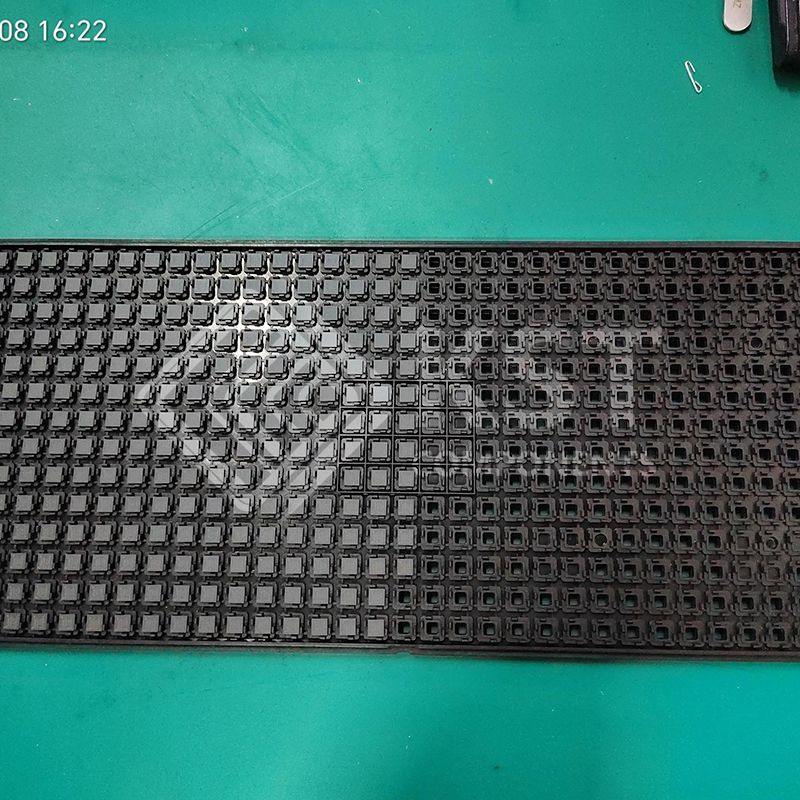

Tray
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Number of Bits |
10
|
|
|
Number of D/A Converters |
1
|
|
|
Settling Time |
11ns (Typ)
|
|
|
Output Type |
Current - Unbuffered
|
|
|
Differential Output |
Yes
|
|
|
Data Interface |
Parallel
|
|
|
Reference Type |
External, Internal
|
|
|
Voltage - Supply, Analog |
1.8V, 3.3V
|
|
|
Voltage - Supply, Digital |
1.8V, 3.3V
|
|
|
INL/DNL (LSB) |
±0.1, ±0.09
|
|
|
Architecture |
Current Source
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Package / Case |
32-VFQFN Exposed Pad, CSP
|
|
|
Supplier Device Package |
32-LFCSP-VQ (5x5)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Base Product Number |
AD9705 |
