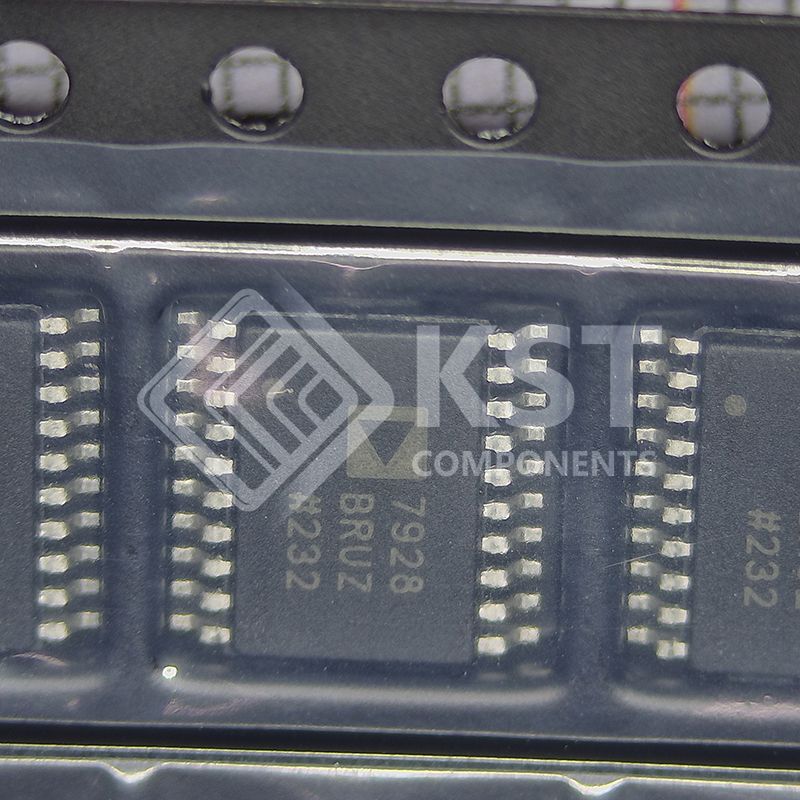

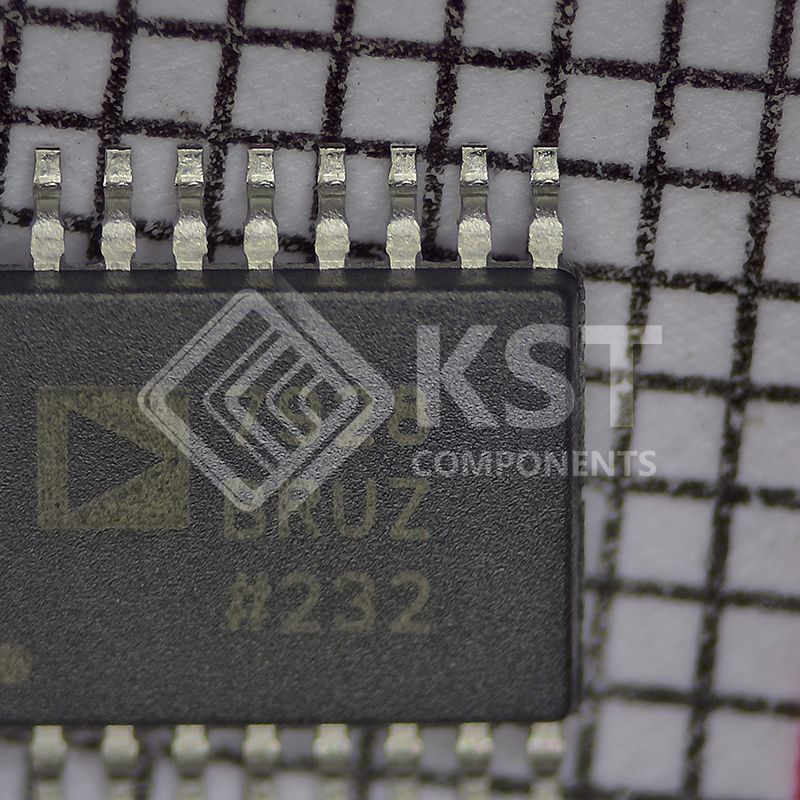

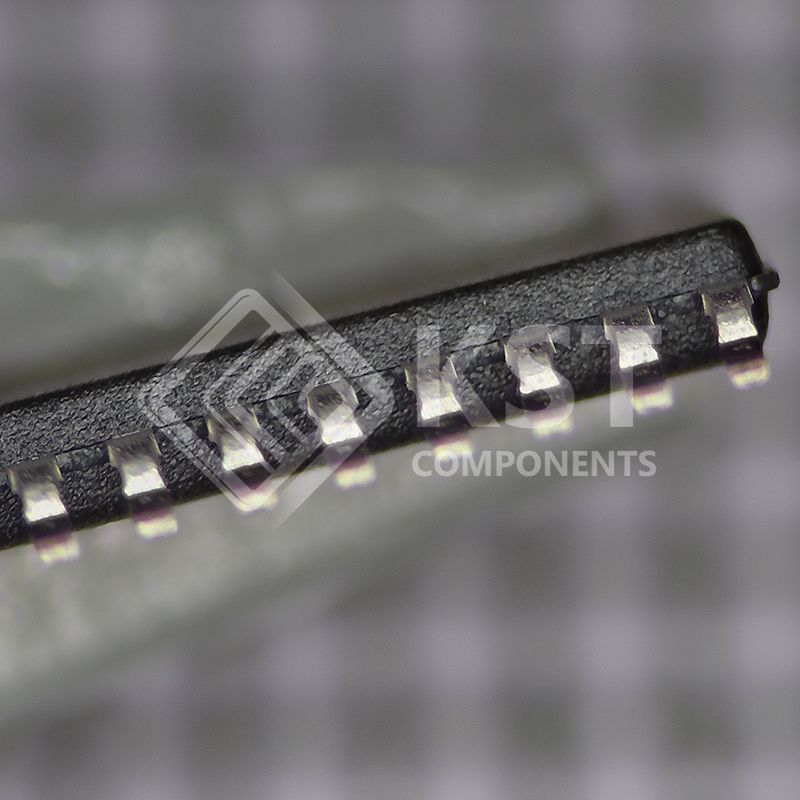

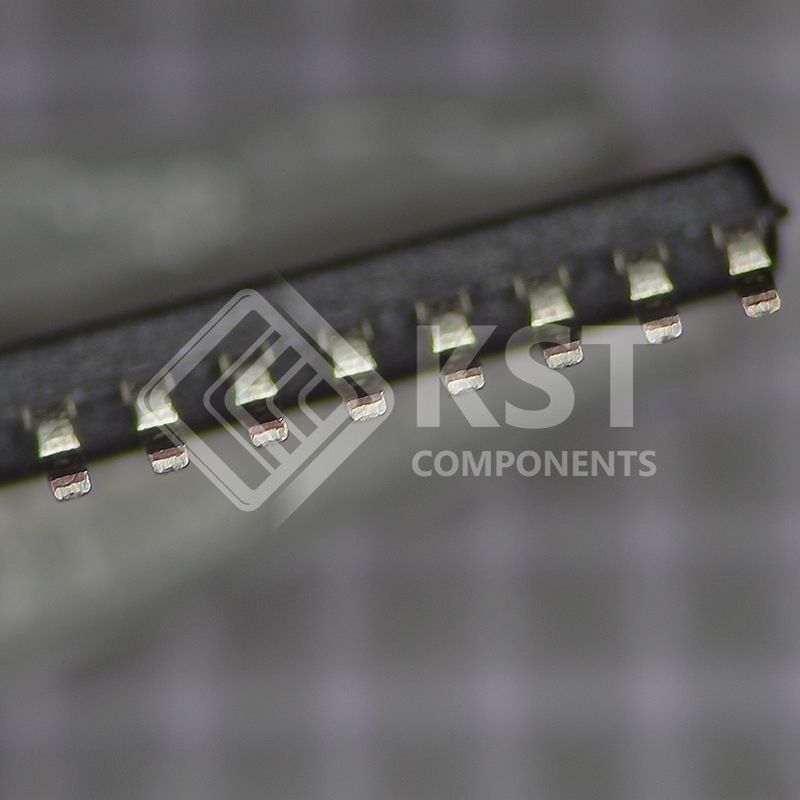

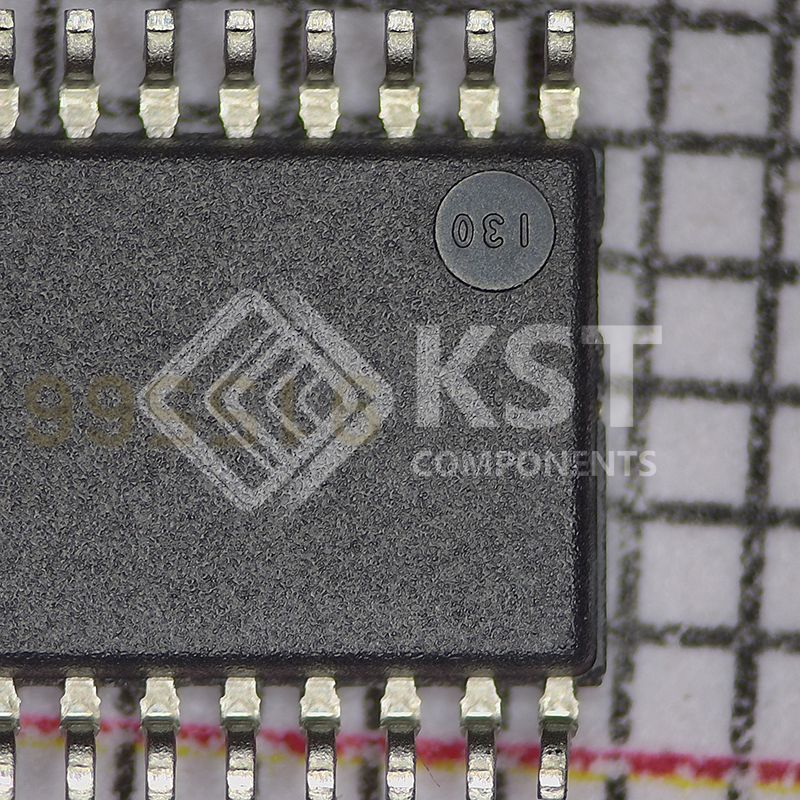

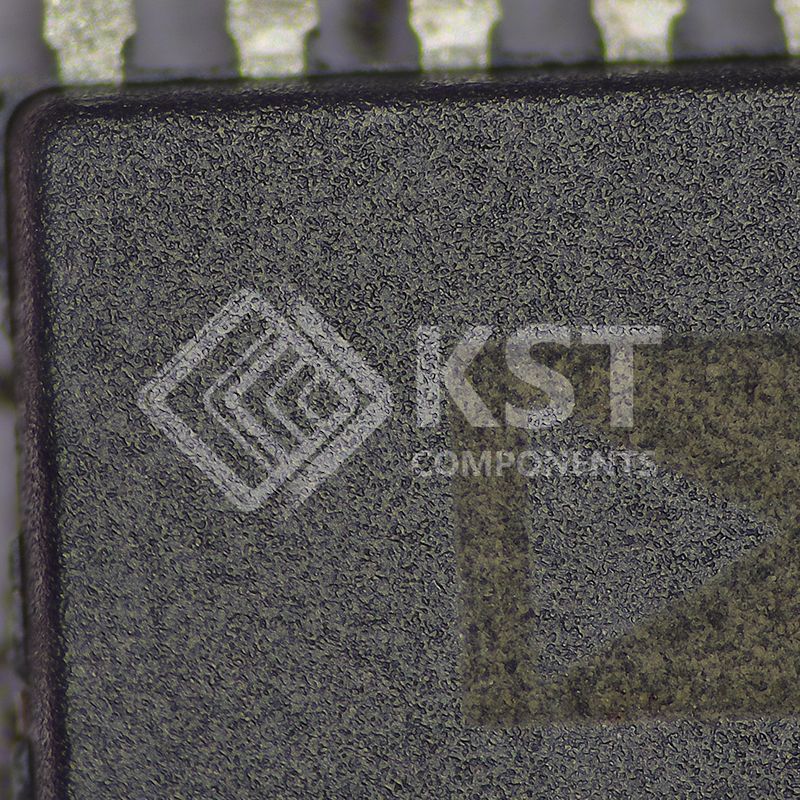

AD7928BRUZ-REEL7
Part Number:
AD7928BRUZ-REEL7
Product Classification:
Isolation Transformers and Autotransformers, Step Up, Step Down
Manufacturer:
AEM Central Semiconductor
Description:
IC ADC 12BIT SAR 20TSSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Data Acquisition
Analog to Digital Converters (ADC)
|
|
|
Manufacturer |
Analog Devices Inc.
|
|
|
Series |
-
|
|
|
Packaging |

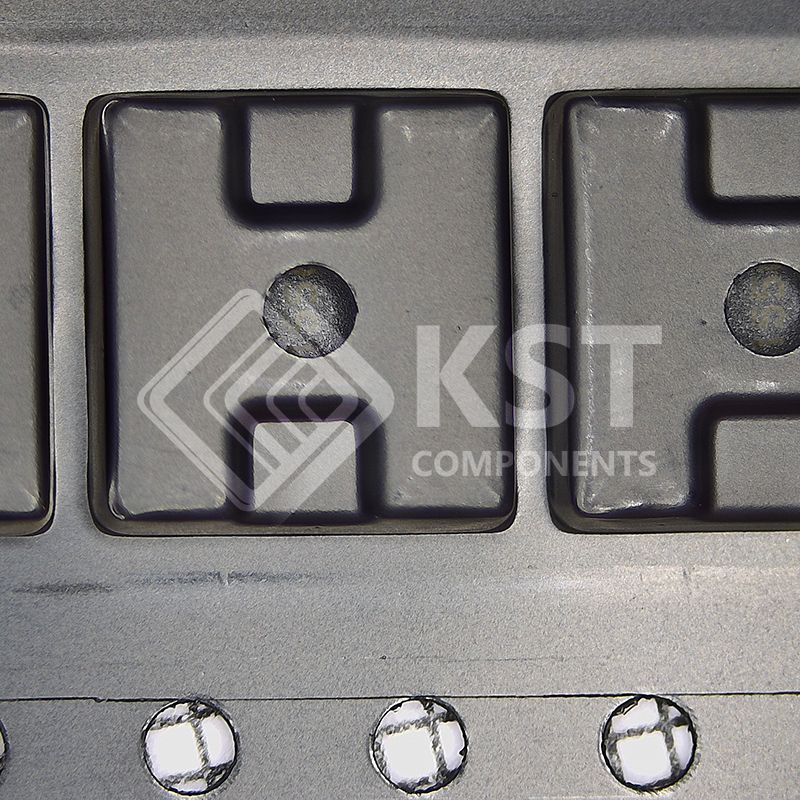

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Number of Bits |
12
|
|
|
Sampling Rate (Per Second) |
1M
|
|
|
Number of Inputs |
8
|
|
|
Input Type |
Single Ended
|
|
|
Data Interface |
SPI, DSP
|
|
|
Configuration |
MUX-S/H-ADC
|
|
|
Ratio - S/H:ADC |
1:1
|
|
|
Number of A/D Converters |
1
|
|
|
Architecture |
SAR
|
|
|
Reference Type |
External
|
|
|
Voltage - Supply, Analog |
2.7V ~ 5.25V
|
|
|
Voltage - Supply, Digital |
2.7V ~ 5.25V
|
|
|
Features |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Package / Case |
20-TSSOP (0.173", 4.40mm Width)
|
|
|
Supplier Device Package |
20-TSSOP
|
|
|
Mounting Type |
Surface Mount
|
|
|
Base Product Number |
AD7928 |
