AD5724AREZ-REEL7
Part Number:
AD5724AREZ-REEL7
Product Classification:
Isolation Transformers and Autotransformers, Step Up, Step Down
Manufacturer:
AEM Central Semiconductor
Description:
IC DAC 12BIT V-OUT 24TSSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Data Acquisition
Digital to Analog Converters (DAC)
|
|
|
Manufacturer |
Analog Devices Inc.
|
|
|
Series |
iCMOS® |
|
|
Packaging |

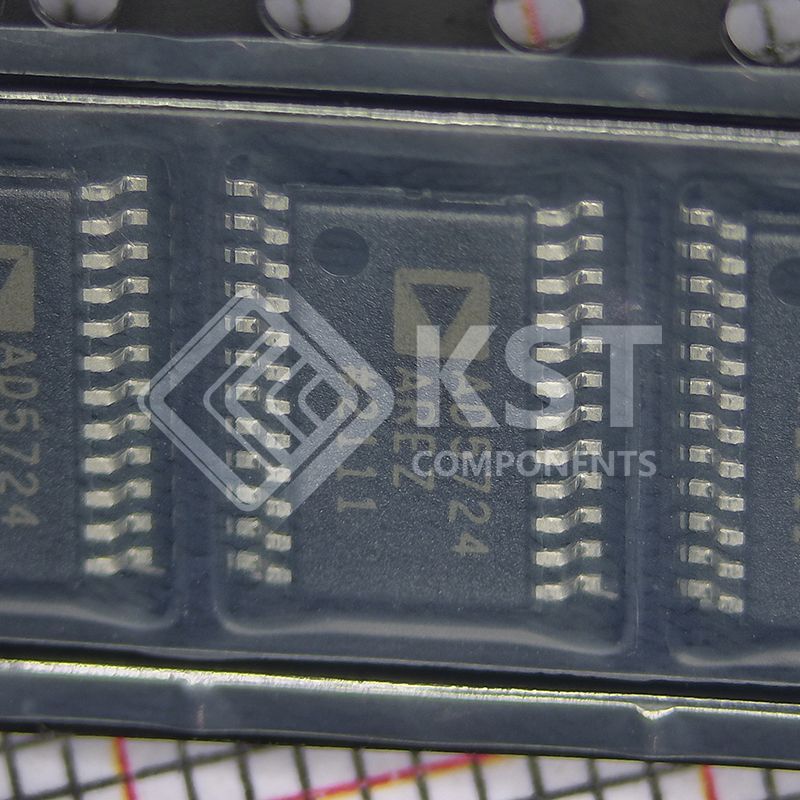

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Number of Bits |
12
|
|
|
Number of D/A Converters |
4
|
|
|
Settling Time |
12µs
|
|
|
Output Type |
Voltage - Buffered
|
|
|
Differential Output |
No
|
|
|
Data Interface |
SPI, DSP
|
|
|
Reference Type |
External
|
|
|
Voltage - Supply, Analog |
±4.5V ~ 16.5V
|
|
|
Voltage - Supply, Digital |
2.7V ~ 5.5V
|
|
|
INL/DNL (LSB) |
±1 (Max), ±1 (Max)
|
|
|
Architecture |
String DAC
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|

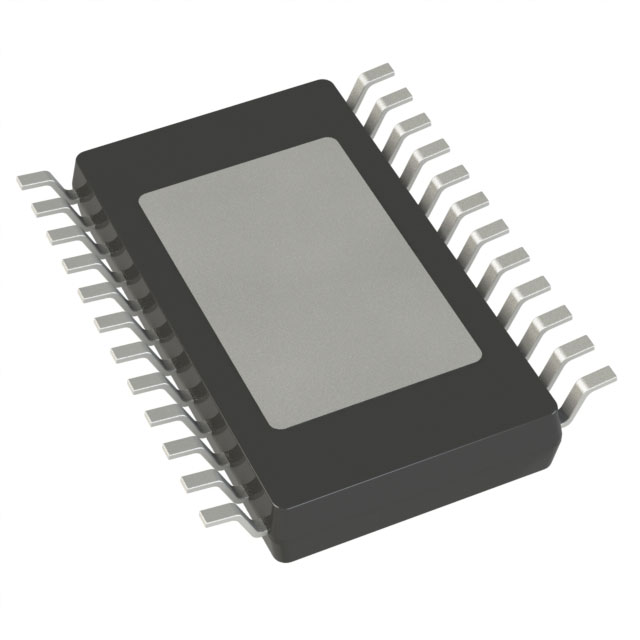

Package / Case |

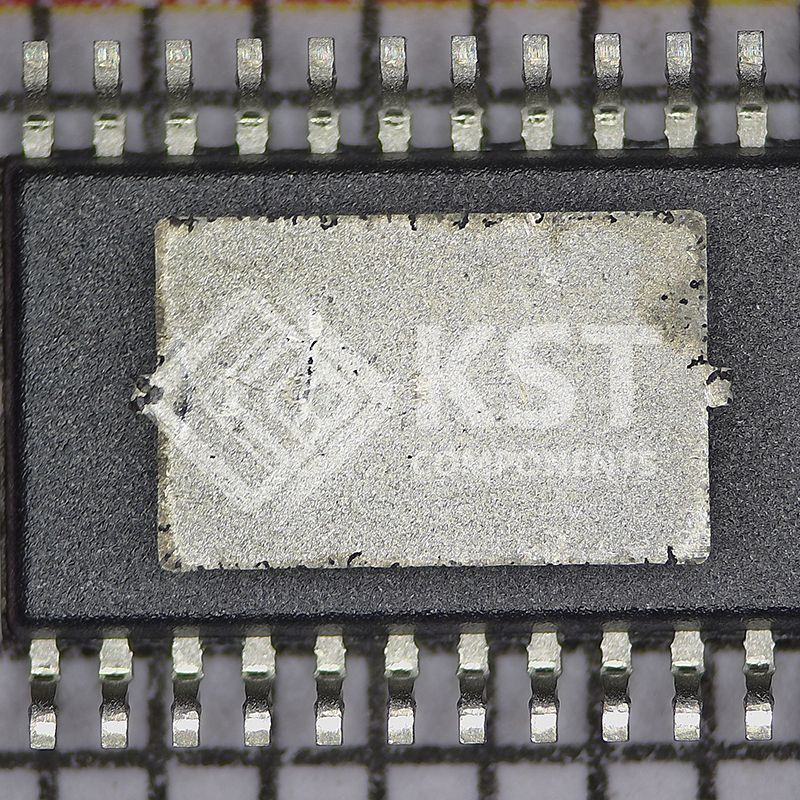

24-TSSOP (0.173", 4.40mm Width) Exposed Pad
|
|
|
Supplier Device Package |
24-TSSOP-EP
|
|
|
Mounting Type |
Surface Mount
|
|
|
Base Product Number |
AD5724 |
