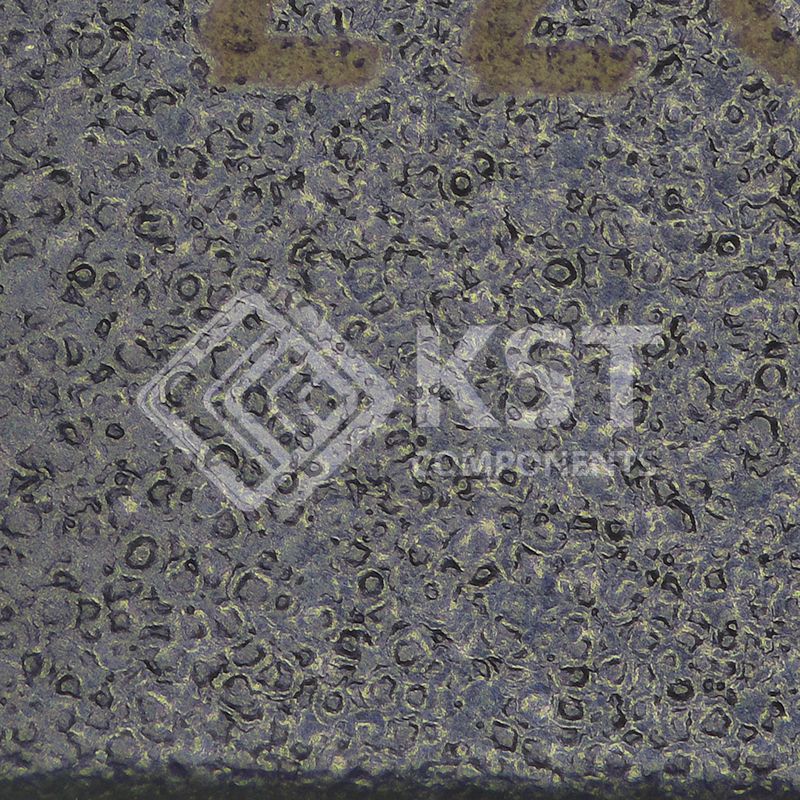

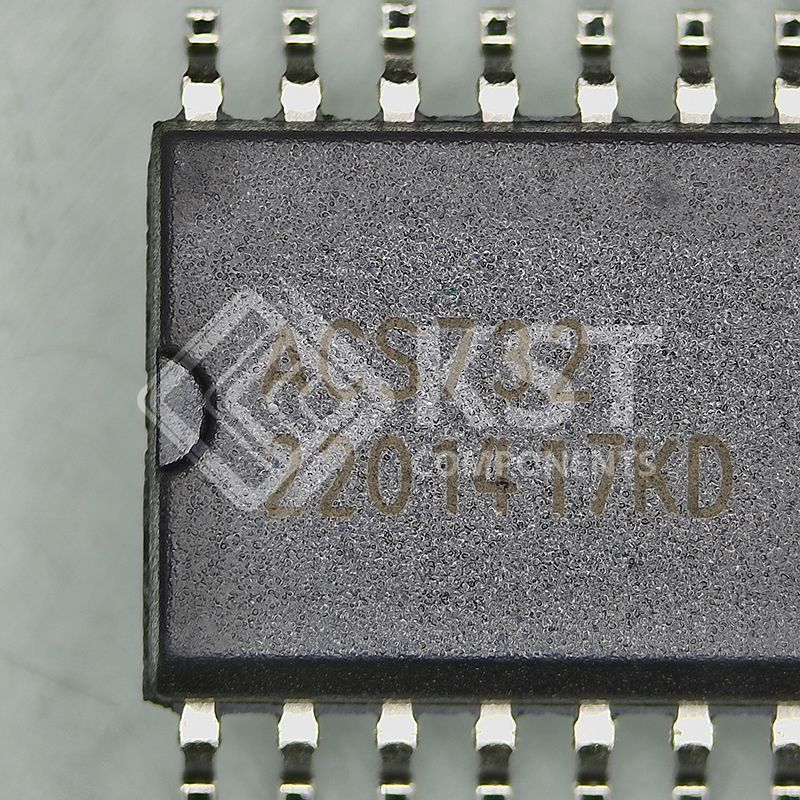

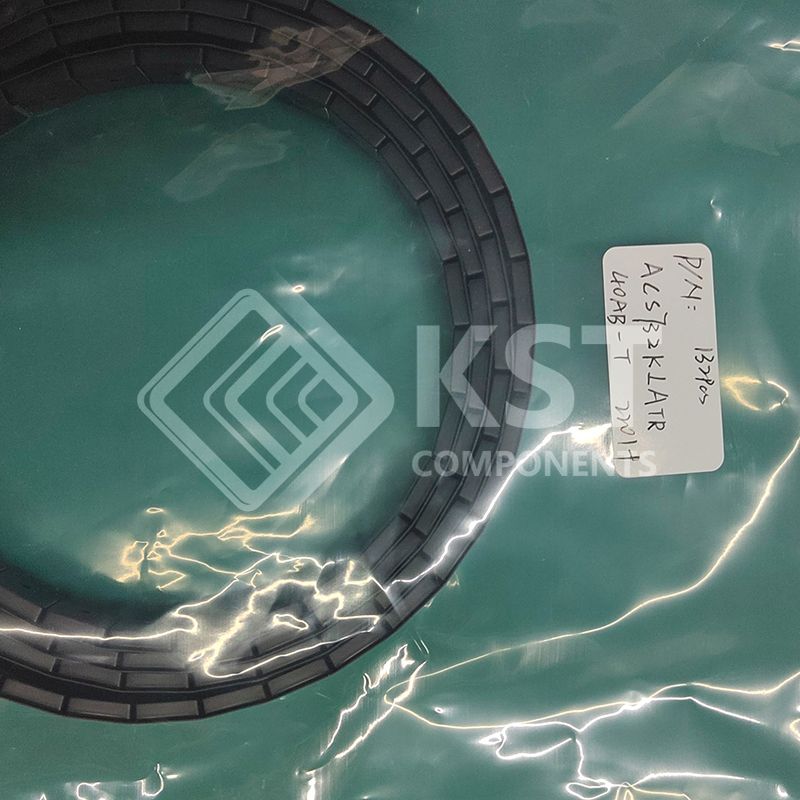

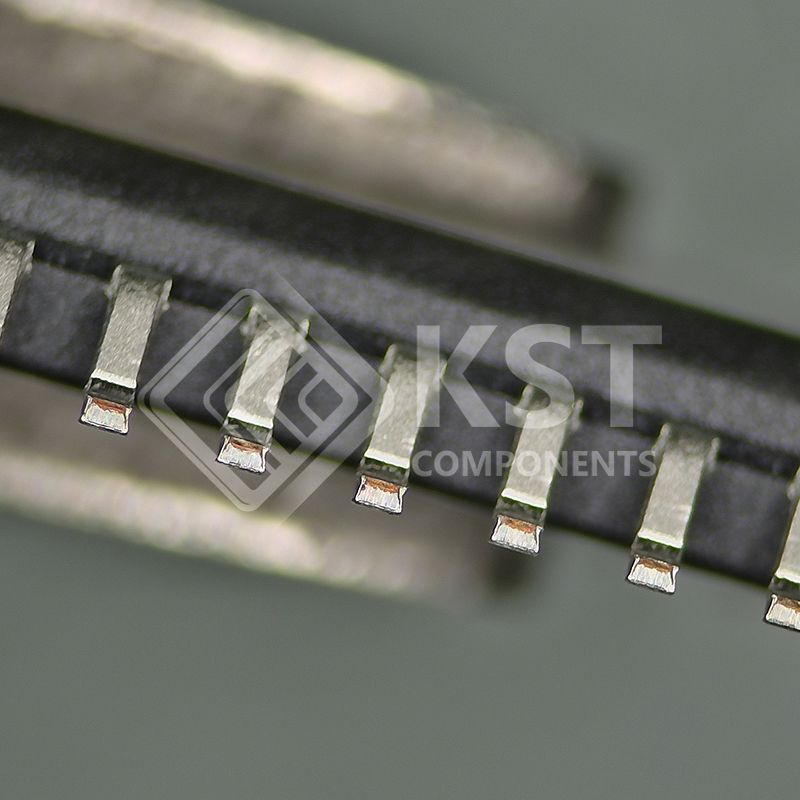

ACS732KLATR-40AB-T

• AEC-Q100 automotive qualified
• High bandwidth, 1 MHz analog output
• Differential Hall sensing rejects common-mode fields
• High-isolation SOIC16 wide body package provides
galvanic isolation for high-voltage applications
• Integrated shield virtually eliminates capacitive coupling
from current conductor to die, greatly suppressing output
noise due to high dv/dt transients
• Industry-leading noise performance with greatly
improved bandwidth through proprietary amplifier and
filter design
• UL60950-1 (ed. 2) certified
□ Dielectric Strength Voltage = 3.6 kVRMS
□ Basic Isolation Working Voltage = 616 VRMS
• Fast and externally configurable overcurrent fault
detection
• 1 mΩ primary conductor resistance for low power loss
and high inrush current withstand capability
• Options for 3.3 V and 5 V single supply operation
• Output voltage proportional to AC and DC current
• Factory-trimmed sensitivity and quiescent output voltage
for improved accuracy
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage
