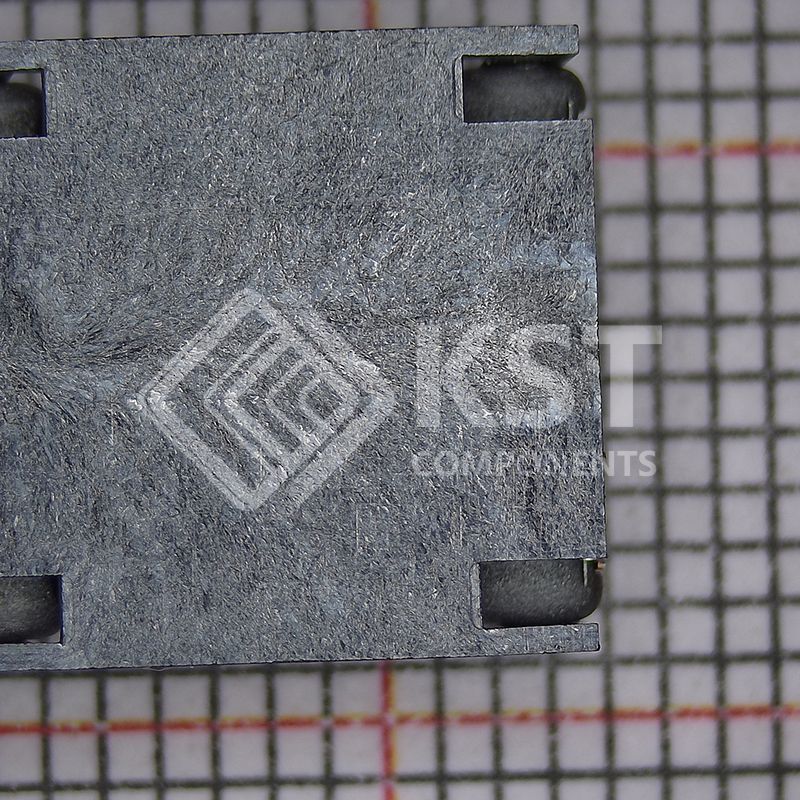

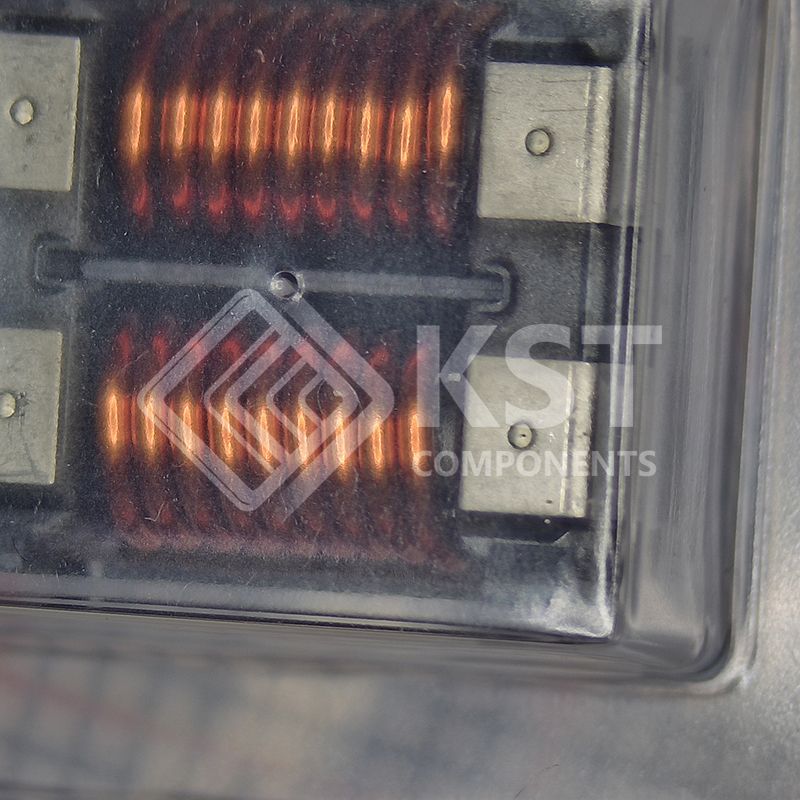

ACM1211-102-2PL-TL01
Part Number:
ACM1211-102-2PL-TL01
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
Essentra Components
Description:
CMC 6A 2LN 1 KOHM SURFACE MOUNT
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
Common Mode Chokes
|
|
|
Manufacturer |
TDK Corporation
|
|
|
Series |
ACM |
|
|

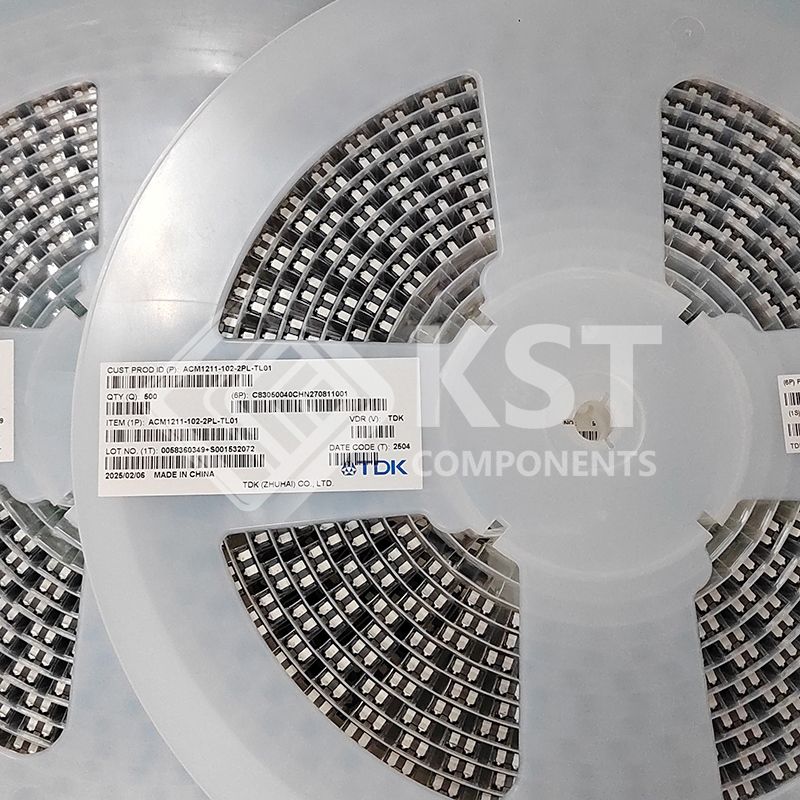

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Filter Type |
Power Line
|
|
|
Number of Lines |
2
|
|
|
Impedance @ Frequency |
1 kOhms @ 100 MHz
|
|
|
Current Rating (Max) |
6A
|
|
|
DC Resistance (DCR) (Max) |
14mOhm
|
|
|
Voltage Rating - DC |
80V
|
|
|
Voltage Rating - AC |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Ratings |
-
|
|
|
Approval Agency |
-
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Size / Dimension |
0.472" L x 0.433" W (12.00mm x 11.00mm)
|
|
|
Height (Max) |
0.236" (6.00mm)
|
|
|
Package / Case |
Horizontal, 4 PC Pad
|
