ABS13-32.768KHZ-T
Part Number:
ABS13-32.768KHZ-T
Product Classification:
AC DC Configurable Power Supply Modules
Manufacturer:
Agile MwT
Description:
CRYSTAL 32.7680KHZ 12.5PF SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Crystals, Oscillators, Resonators
Crystals
|
|
|
Mfr |
Abracon LLC |
|
|
Series |
ABS13 |
|
|

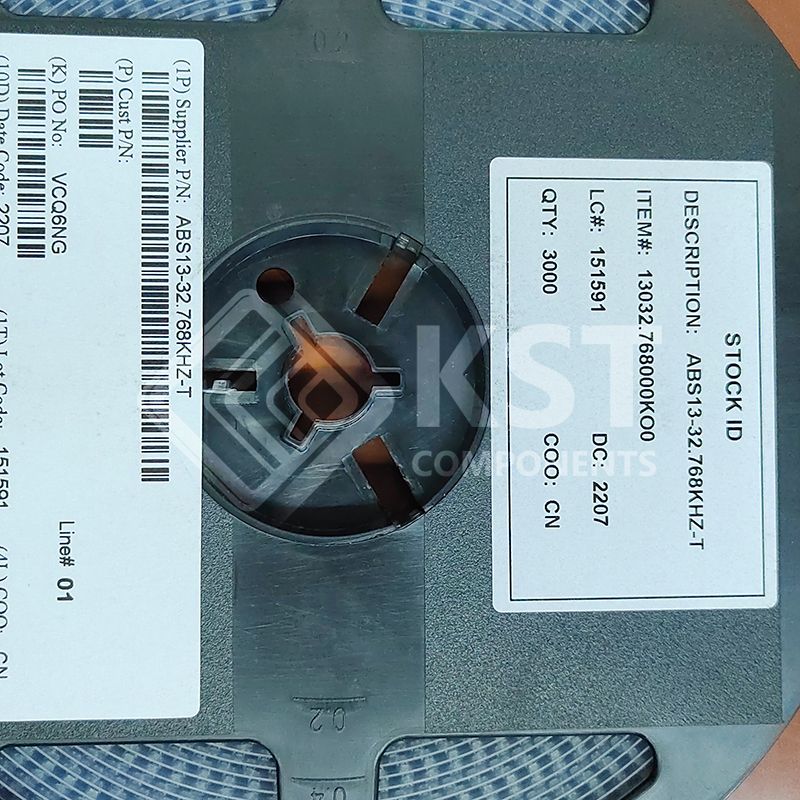

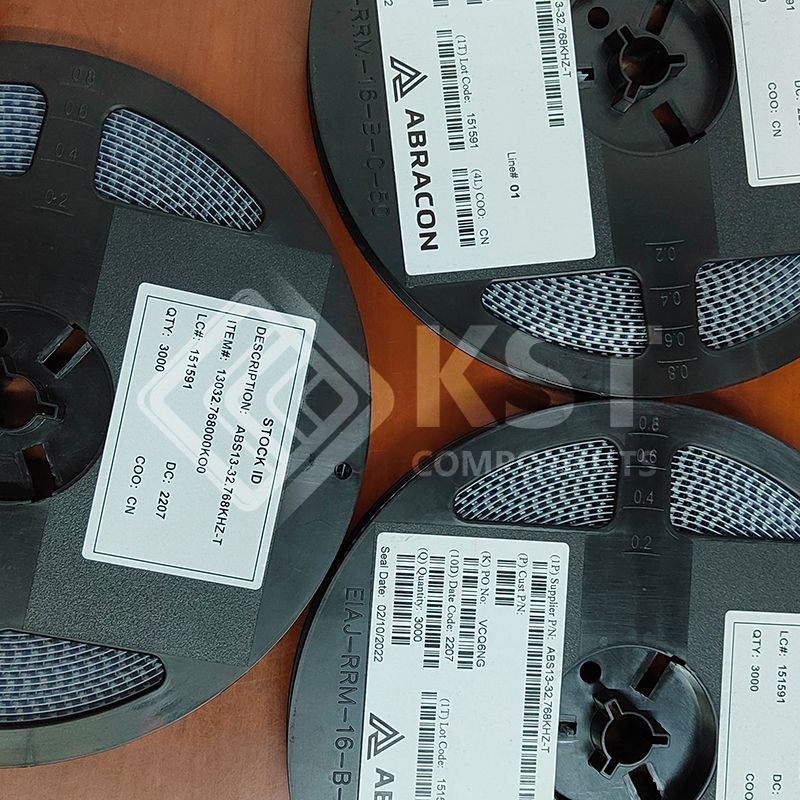

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
kHz Crystal (Tuning Fork)
|
|
|
Frequency |
32.768 kHz
|
|
|
Frequency Stability |
-
|
|
|
Frequency Tolerance |
±20ppm
|
|
|
Load Capacitance |
12.5pF
|
|
|
ESR (Equivalent Series Resistance) |
65 kOhms
|
|
|
Operating Mode |
Fundamental
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
4-SMD, Flat Lead, 3 Leads |
|
|
Size / Dimension |
0.264" L x 0.055" W (6.70mm x 1.40mm)
|
|
|
Height - Seated (Max) |
0.055" (1.40mm)
|
