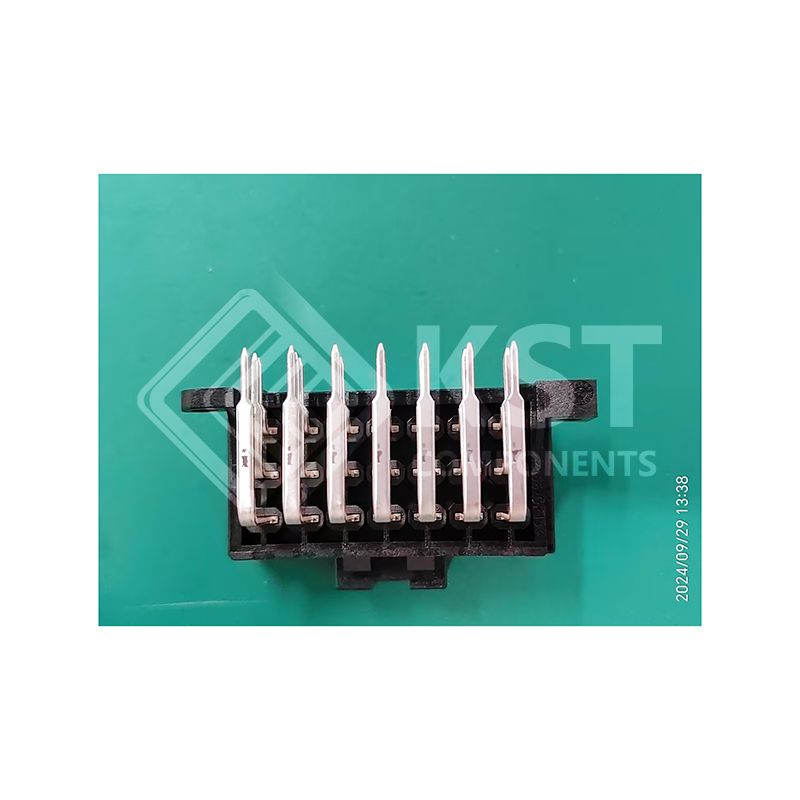

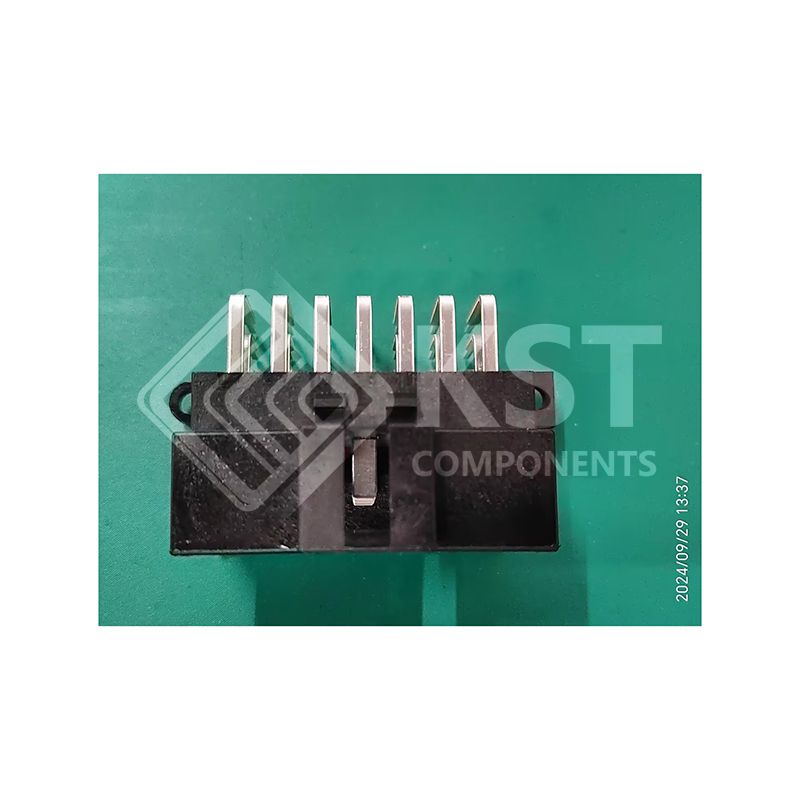

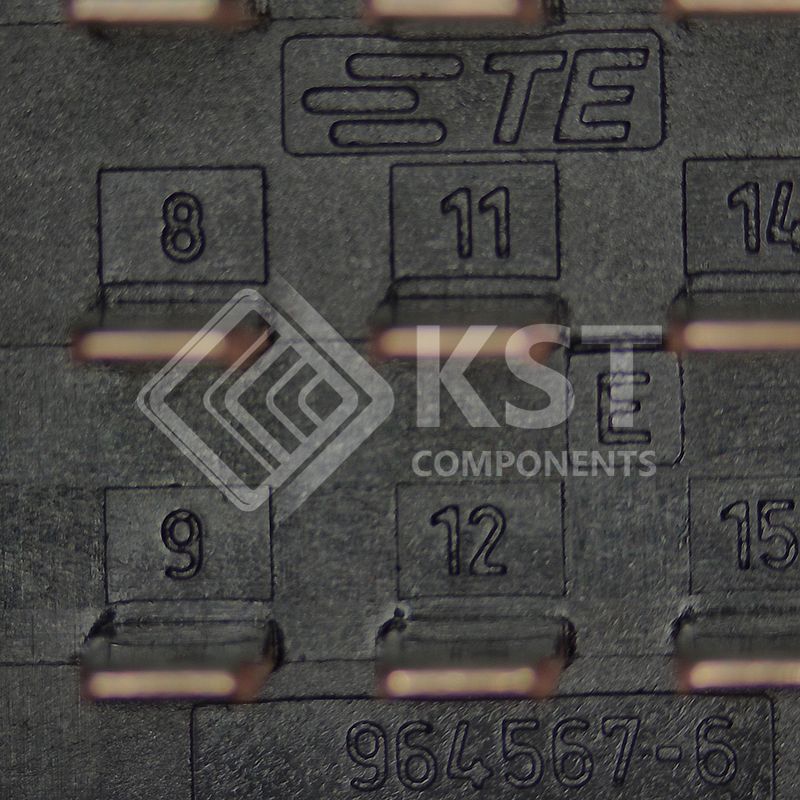

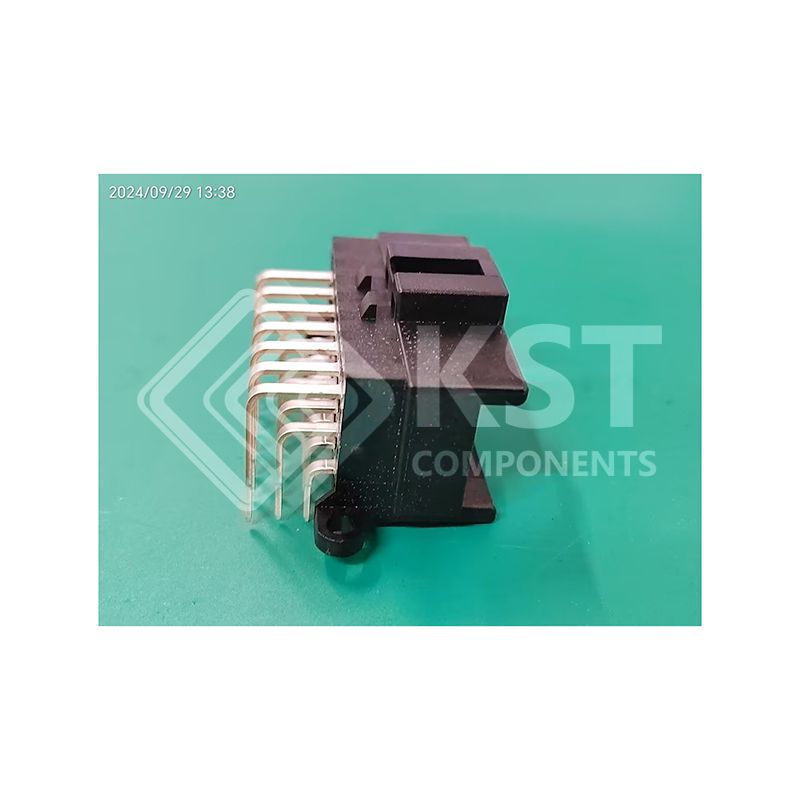

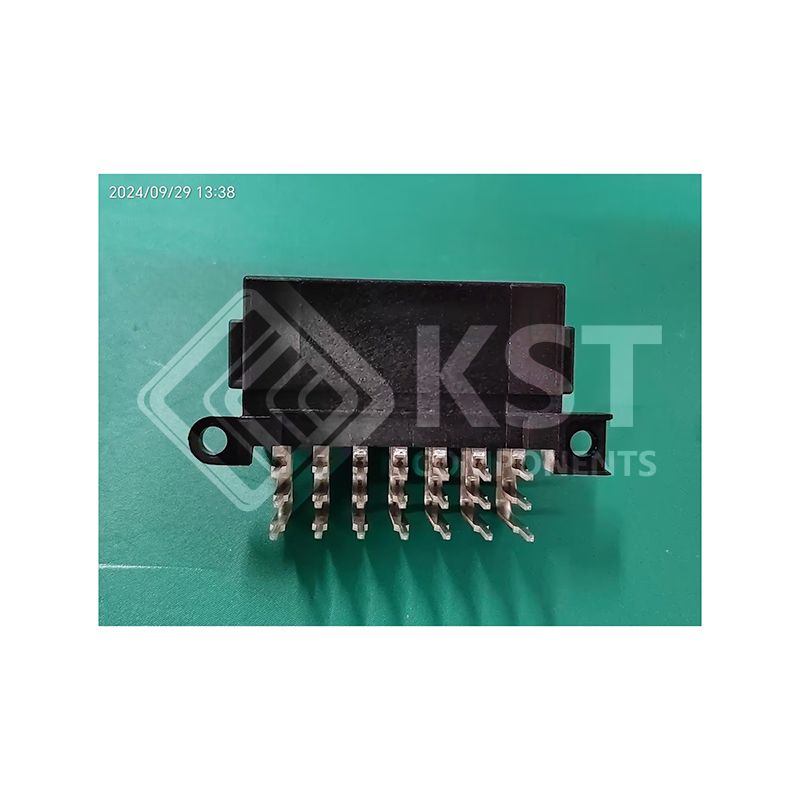

9-966140-6
Part Number:
9-966140-6
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
Audiowell
Description:
MESSERLEISTE 21P
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
TE Connectivity Deutsch Connectors |
|
|
Series |
MCP |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Tab
|
|
|
Pitch - Mating |
0.197" (5.00mm) |
|
|
Number of Positions |
21 |
|
|
Number of Rows |
3
|
|
|
Row Spacing - Mating |
0.217" (5.50mm) |
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Board or Cable |
|
|
Shrouding |
Shrouded - 4 Wall
|
|
|
Mounting Type |
Through Hole, Right Angle |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Latch Holder
|
|
|
Contact Length - Mating |
-
|
|
|
Contact Length - Post |
0.118" (3.00mm)
|
|
|
Overall Contact Length |
-
|
|
|
Insulation Height |
1.012" (25.70mm)
|
|
|
Contact Shape |
Rectangular
|
|
|
Contact Finish - Mating |
Tin
|
|
|
Contact Finish Thickness - Mating |
-
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Copper Alloy
|
|
|
Insulation Material |

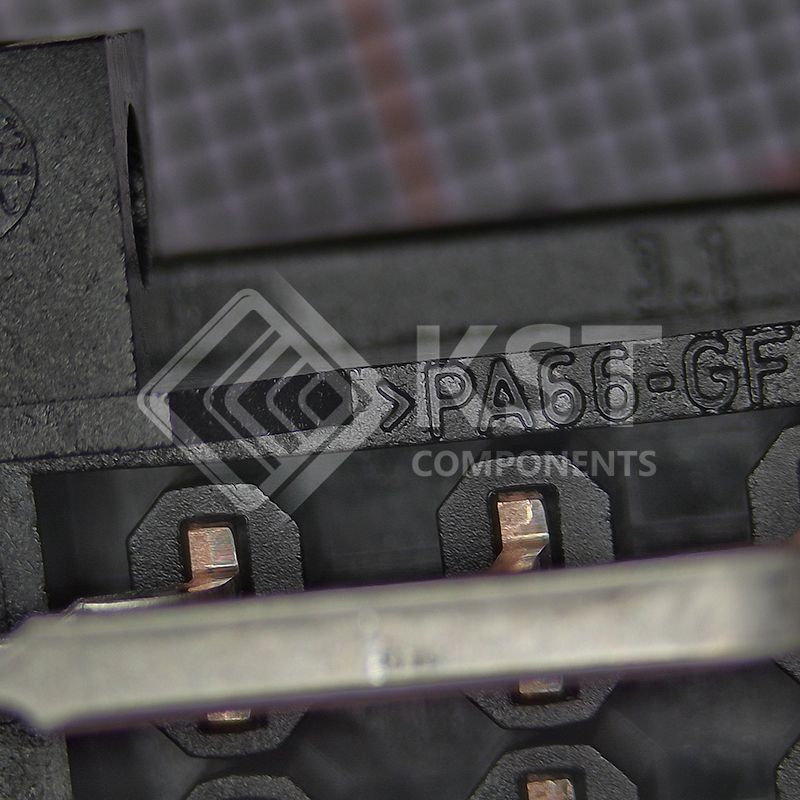

Polyamide (PA66), Nylon 6/6, Glass Filled
|
|
|
Features |
Mounting Flange
|
|
|
Operating Temperature |
-30°C ~ 100°C
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 HB
|
|
|
Insulation Color |
Black
|
|
|
Current Rating (Amps) |
-
|
|
|
Voltage Rating |
28VDC
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
-
|
|
|
Applications |
Automotive, General Purpose
|
|
|
Base Product Number |
966140 |
