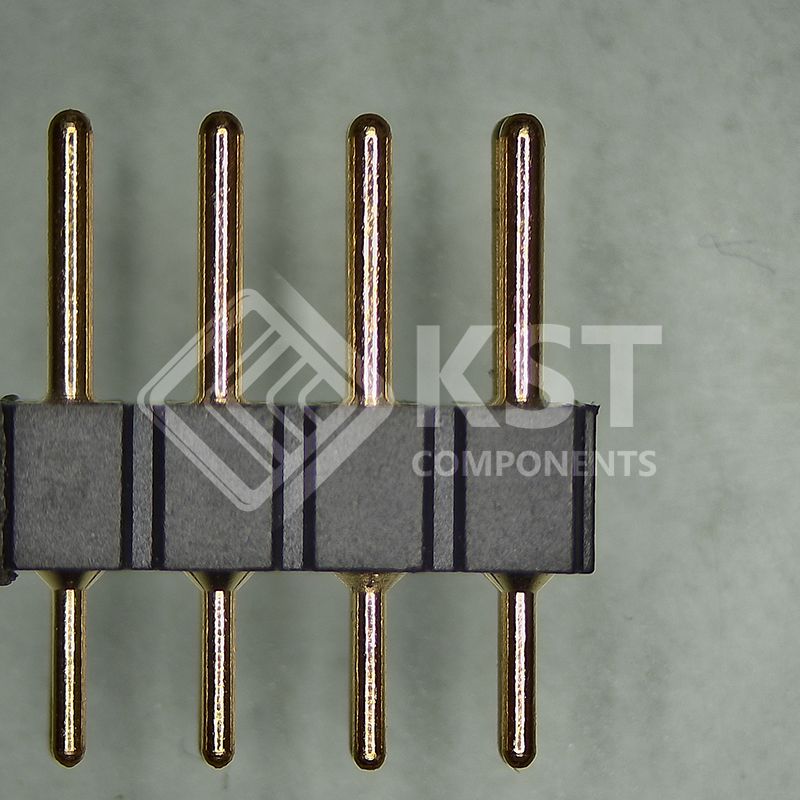

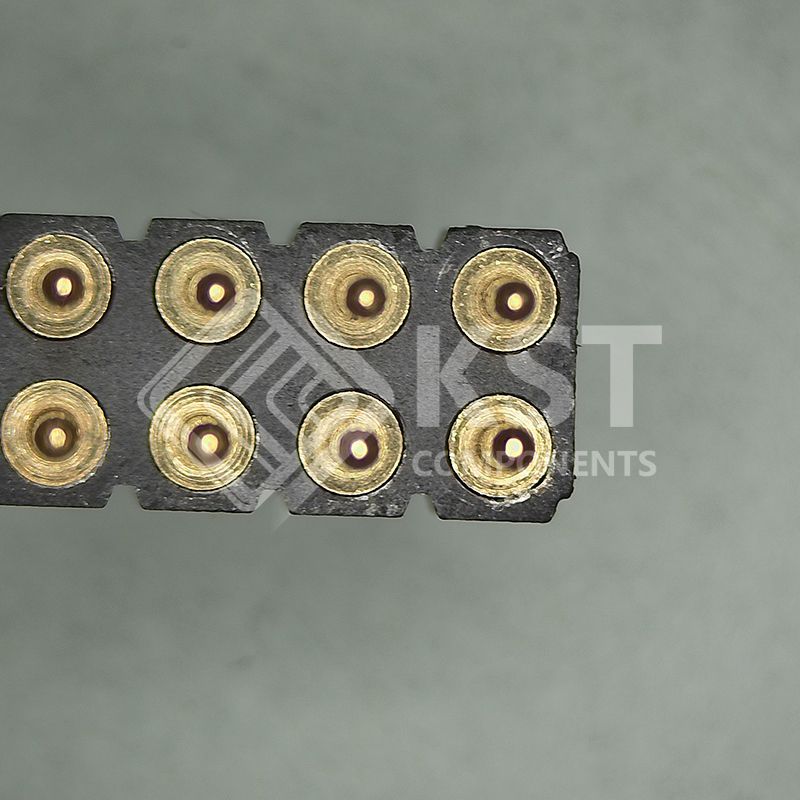

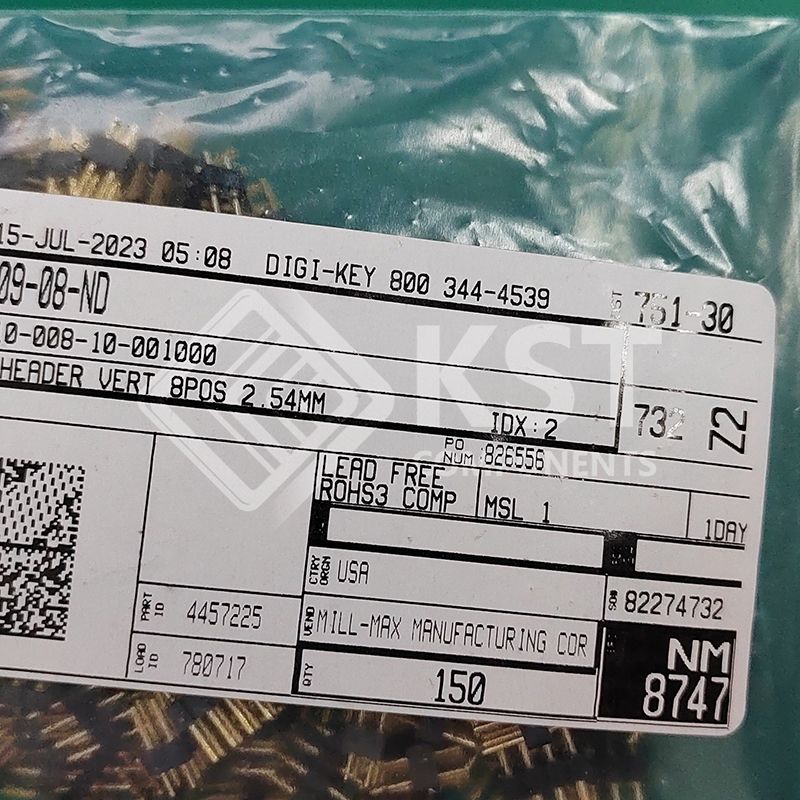

802-10-008-10-001000
Part Number:
802-10-008-10-001000
Product Classification:
LED Lighting Kits
Manufacturer:
Anderson Power Products
Description:
Connector Header Through Hole 8 position 0.100" (2.54mm)
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
| Mfr | Mill-Max Manufacturing Corp. |
| Series | 802 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.195" (4.95mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.438" (11.12mm) |
| Insulation Height | 0.110" (2.79mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass Alloy |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Applications | - |
| Base Product Number | 802-10 |
