744765022A
Part Number:
744765022A
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Analog Technologies
Description:

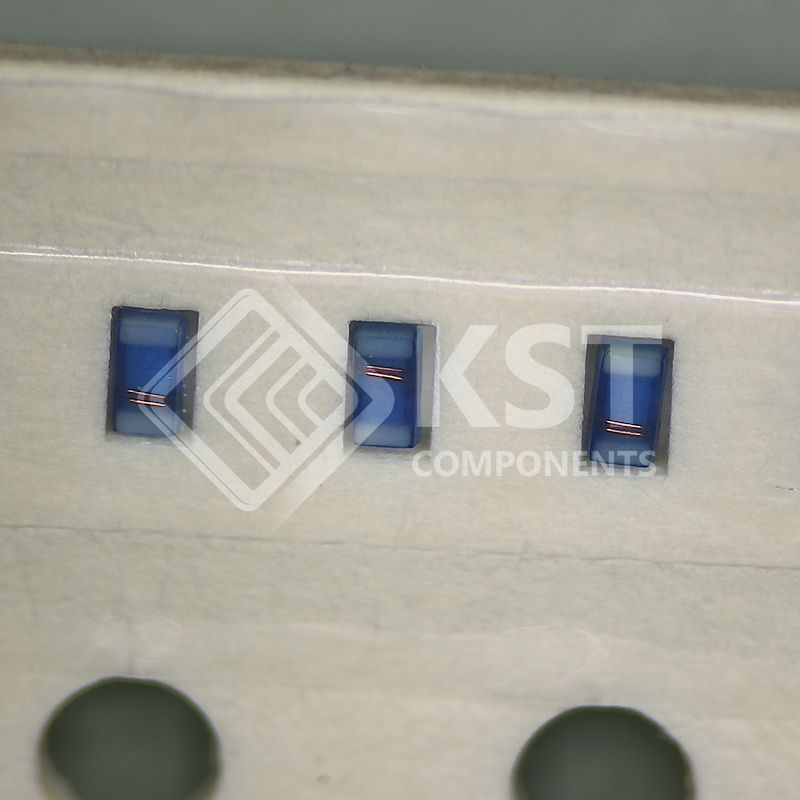

2.2 nH Unshielded Drum Core, Wirewound Inductor 960 mA 70mOhm Max 0402 (1005 Metric)
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
| Mfr | Würth Elektronik |
| Series | WE-KI |

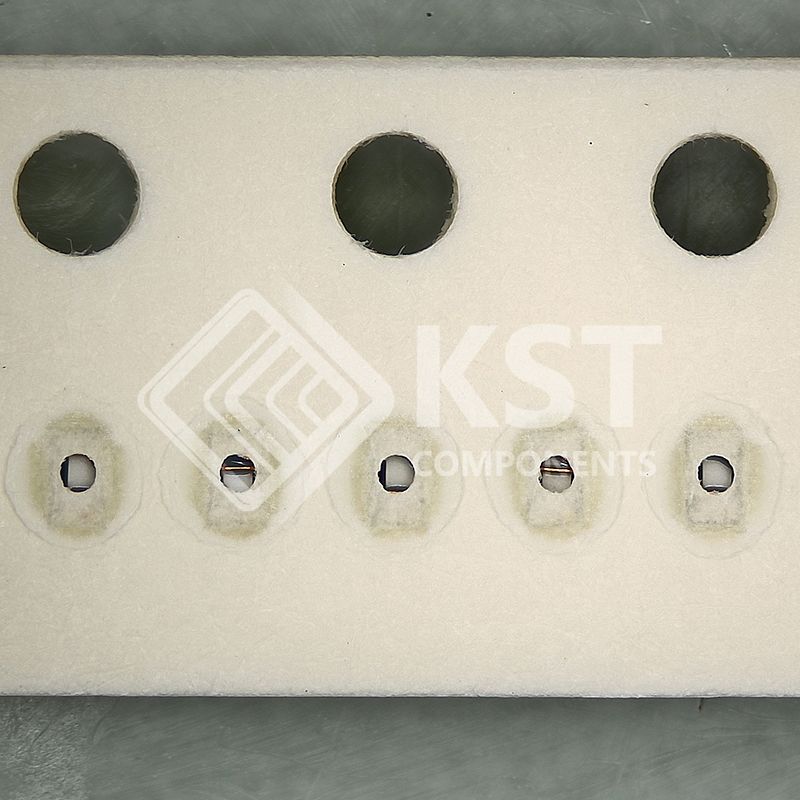

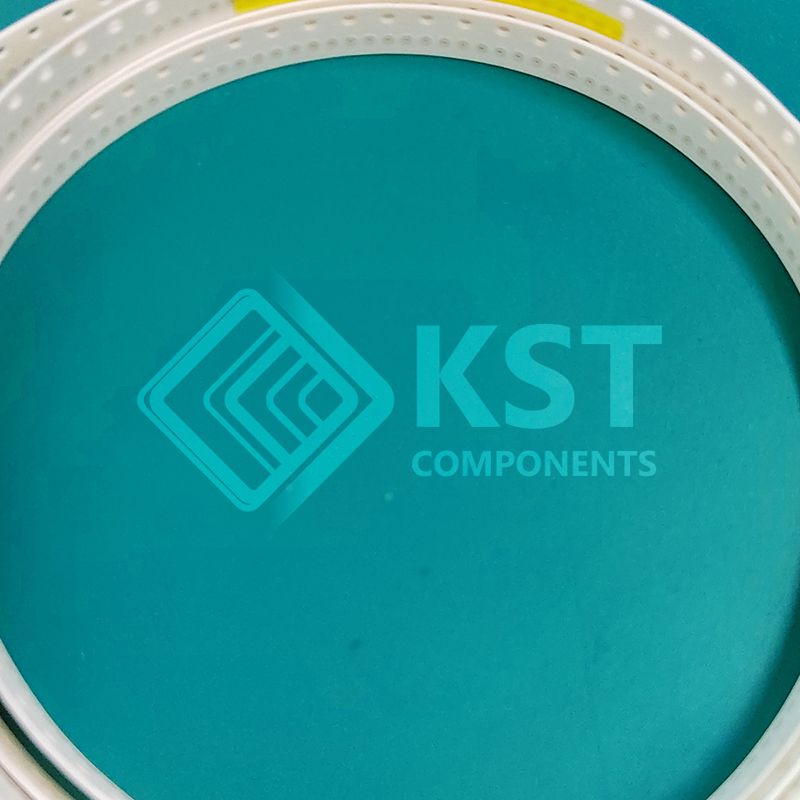

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 2.2 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 960 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 70mOhm Max |
| Q @ Freq | 18 @ 250MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
