744750460100
Part Number:
744750460100
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Analog Technologies
Description:
FIXED IND 10UH 9.2A 8.6 MOHM TH
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Würth Elektronik |
|
|
Series |
WE-FAMI |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
10 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
9.2 A |
|
|
Current - Saturation (Isat) |
11.3A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
8.6mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
-
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
Radial, Vertical Cylinder
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |

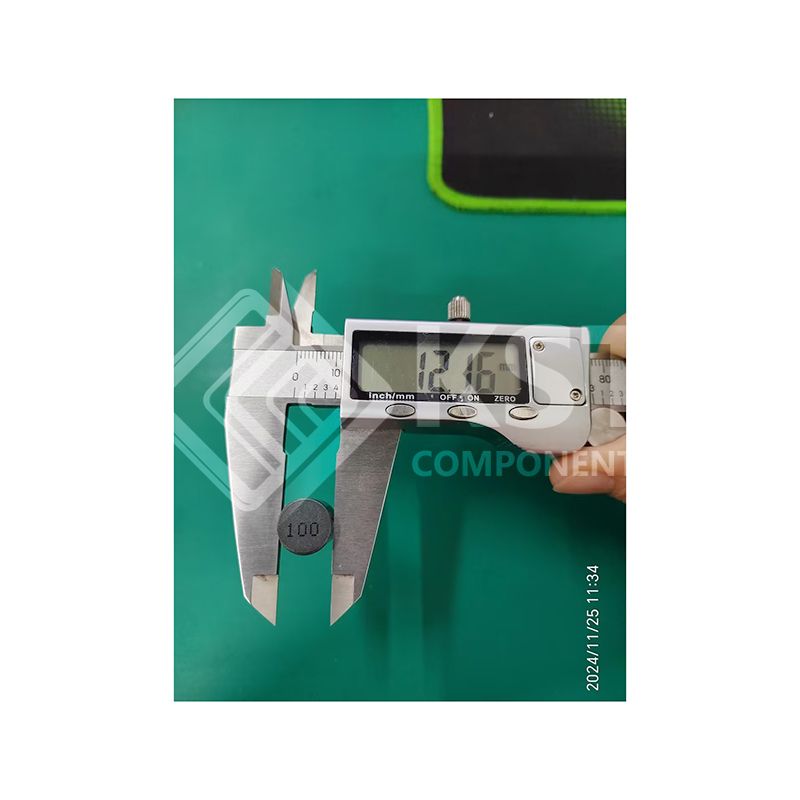

0.504" Dia (12.80mm)
|
|
|
Height - Seated (Max) |
0.622" (15.80mm)
|
