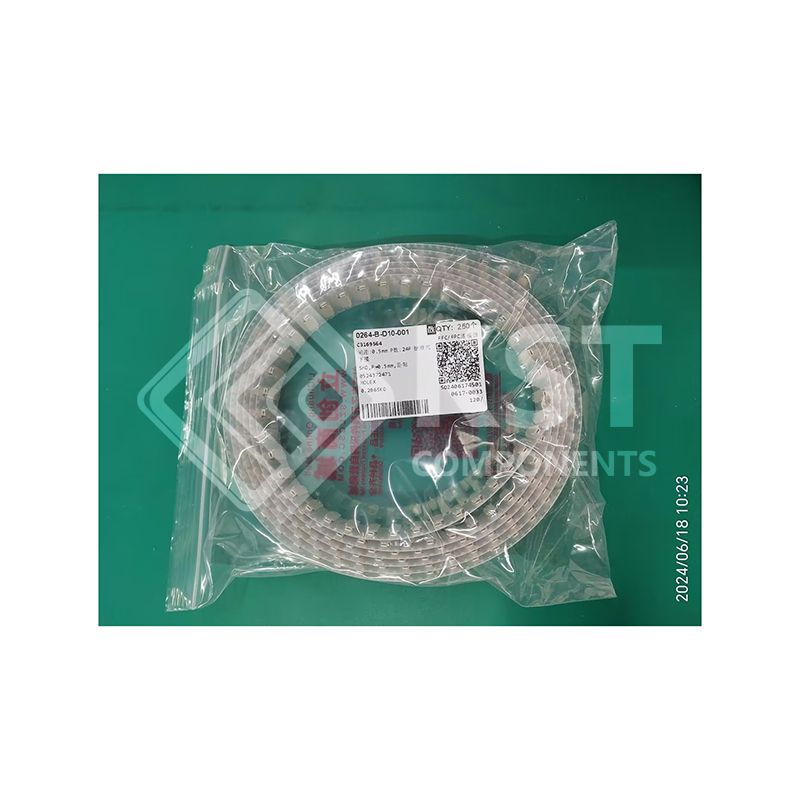

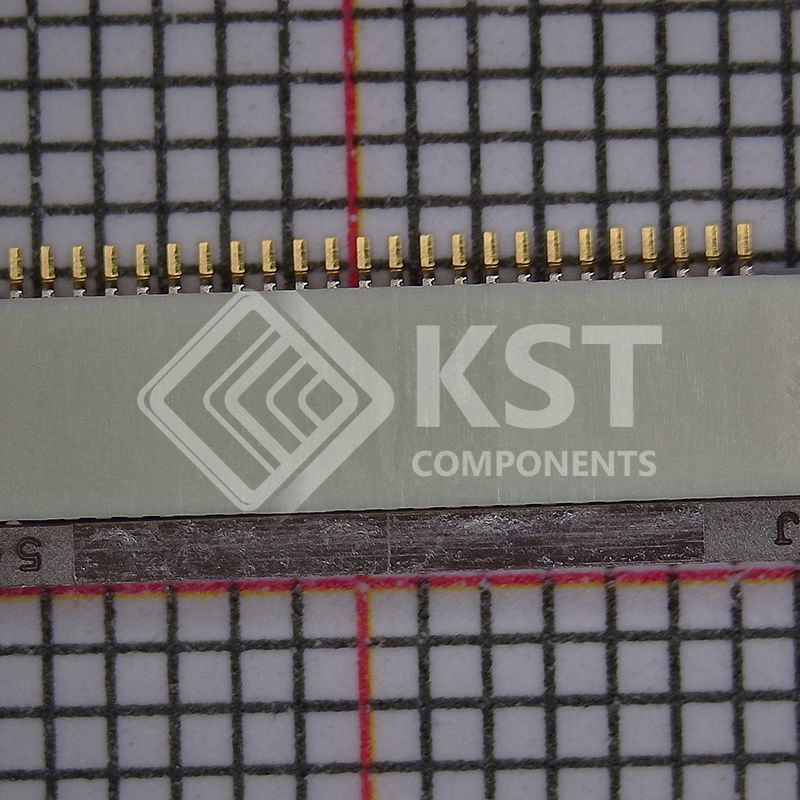

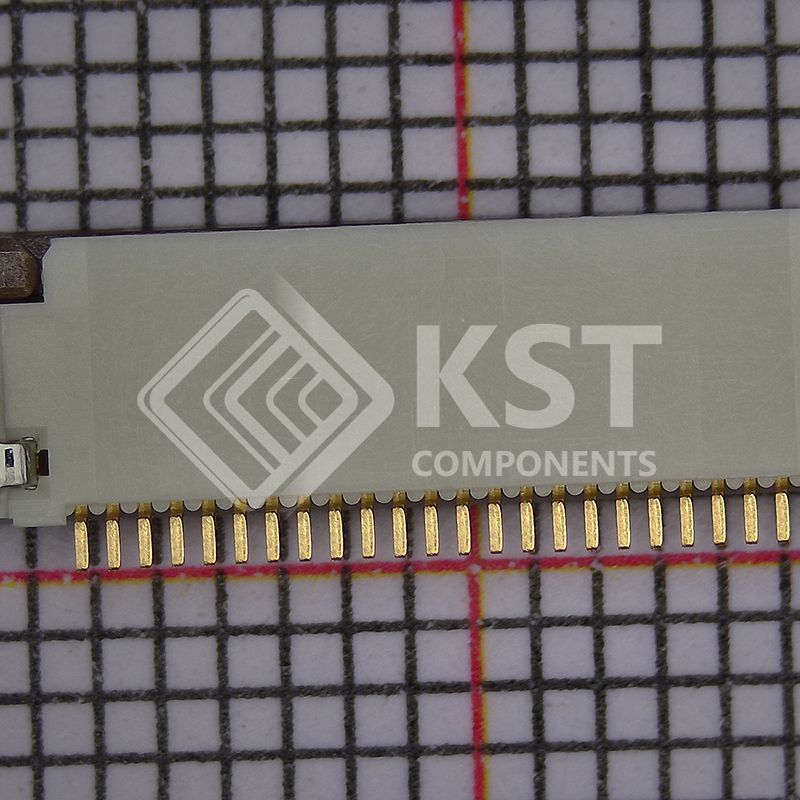

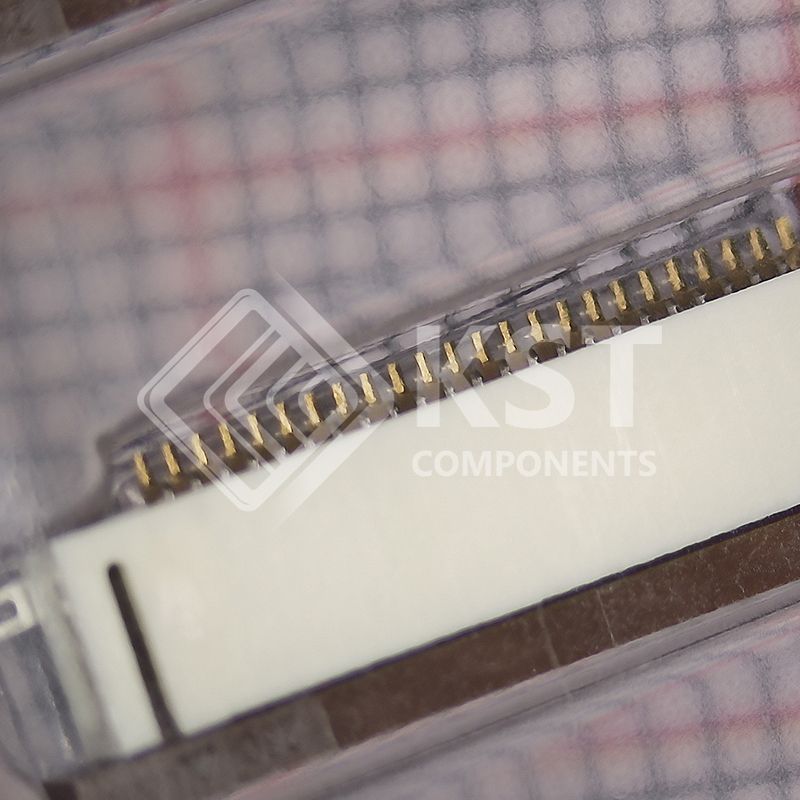

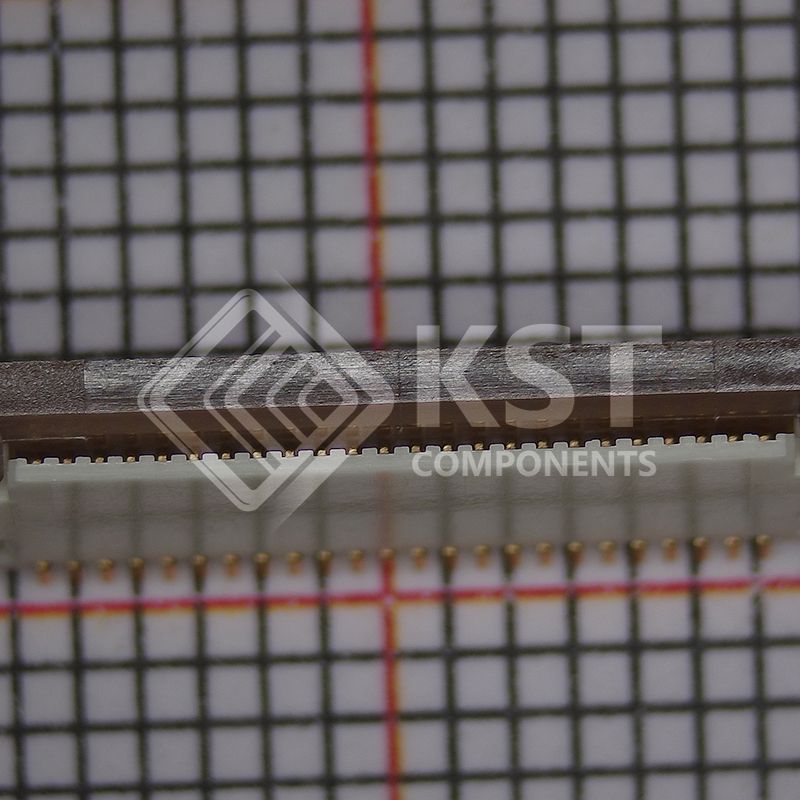

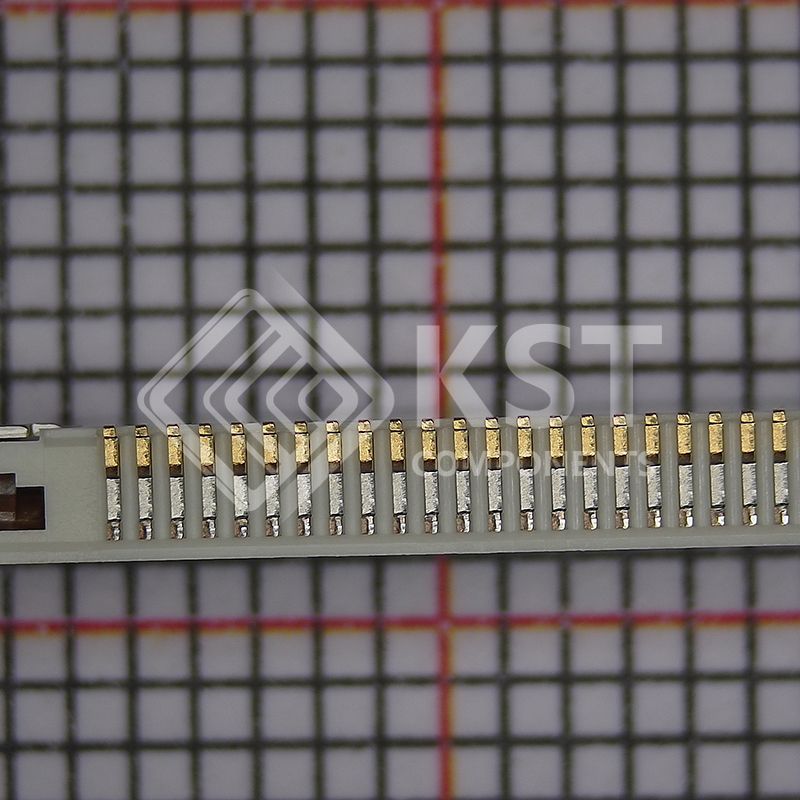

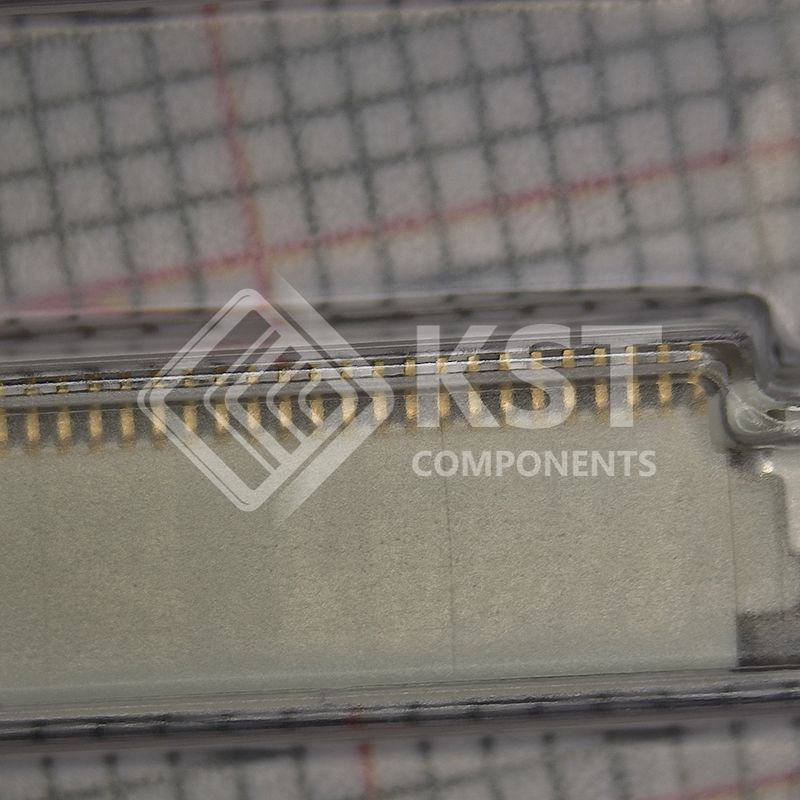

52437-2471
Part Number:
52437-2471
Product Classification:
LED Lighting Kits
Manufacturer:
A&D Engineering
Description:
24 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Manufacturer |
Molex
|
|
|
Series |
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Flat Flex Type |
FFC, FPC
|
|
|
Mounting Type |
Surface Mount, Right Angle
|
|
|
Connector/Contact Type |
Contacts, Bottom
|
|
|
Number of Positions |
24
|
|
|
Pitch |
0.020" (0.50mm)
|
|
|
Termination |
Solder
|
|
|
FFC, FCB Thickness |
0.30mm
|
|
|
Height Above Board |
0.079" (2.00mm)
|
|
|
Locking Feature |
Slide Lock
|
|
|
Cable End Type |
Straight, Tapered
|
|
|
Contact Material |
Phosphor Bronze
|
|
|
Contact Finish |
Gold
|
|
|
Housing Material |
Polyamide (PA46), Nylon 4/6, Glass Filled
|
|
|
Actuator Material |
Polyphenylene Sulfide (PPS), Glass Filled
|
|
|
Features |
Solder Retention, Zero Insertion Force (ZIF)
|
|
|
Voltage Rating |
50V
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Current Rating (Amps) |
0.5A
|
|
|
Contact Finish Thickness |
-
|
|
|
Housing Color |
White
|
|
|
Actuator Color |
Brown
|
|
|
Mating Cycles |
20
|
|
|
Base Product Number |
